SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX100 S6 (Intel Xeon X3480) | SPECpower_ssj2008 = 2,155 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Oct 26, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Nov-2009 | Publication: | Dec 1, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

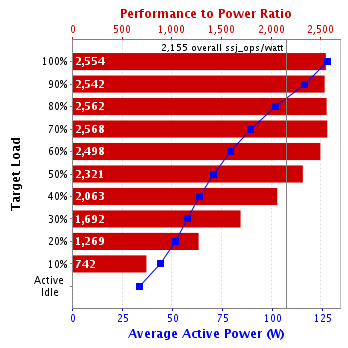

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 325,193 | 127 | 2,554 |
| 90% | 90.3% | 294,908 | 116 | 2,542 |
| 80% | 79.6% | 259,846 | 101 | 2,562 |
| 70% | 69.8% | 227,853 | 88.7 | 2,568 |
| 60% | 60.2% | 196,572 | 78.7 | 2,498 |
| 50% | 50.0% | 163,143 | 70.3 | 2,321 |
| 40% | 40.2% | 131,162 | 63.6 | 2,063 |
| 30% | 29.7% | 97,118 | 57.4 | 1,692 |
| 20% | 20.0% | 65,260 | 51.4 | 1,269 |
| 10% | 10.0% | 32,689 | 44.1 | 742 |
| Active Idle | 0 | 33.4 | 0 | |
| ∑ssj_ops / ∑power = | 2,155 | |||
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S6 (Intel Xeon X3480) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X3480 |
| CPU Characteristics: | Quad-Core, 3.06GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600E ECC CL9; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | Fujitsu Technology Solutions DPS-350YB A |
| Disk Drive: | 1 x 32GB SSD 2.5" SATA (Fujitsu S26361-F3298-E32) |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82578DM and 1 x Intel 82574L Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise |
| OS Version: | Version 6.1.7600 Build 7600 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1000m -Xms1350m -Xmx1350m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0x0F,0xF0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1350 |
| JVM Maximum Heap (MB): | 1350 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.16 |
| Management Firmware Version: | 5.08A |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 950 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91HA48097 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 09116242 |
| Date of Calibration: | 20-Nov-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 127 | 20.3 |
| 90% | 116 | 20.2 |
| 80% | 101 | 20.3 |
| 70% | 88.7 | 20.2 |
| 60% | 78.7 | 20.2 |
| 50% | 70.3 | 20.2 |
| 40% | 63.6 | 20.3 |
| 30% | 57.4 | 20.3 |
| 20% | 51.4 | 20.3 |
| 10% | 44.1 | 20.3 |
| Active Idle | 33.4 | 20.3 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 20.2 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 325,110 | ||
| Calibration 2 | 326,866 | ||
| Calibration 3 | 326,181 | ||
| ssj_ops@calibrated=326,523 | |||
| 100% | 99.6% | 326,523 | 325,193 |
| 90% | 90.3% | 293,871 | 294,908 |
| 80% | 79.6% | 261,219 | 259,846 |
| 70% | 69.8% | 228,566 | 227,853 |
| 60% | 60.2% | 195,914 | 196,572 |
| 50% | 50.0% | 163,262 | 163,143 |
| 40% | 40.2% | 130,609 | 131,162 |
| 30% | 29.7% | 97,957 | 97,118 |
| 20% | 20.0% | 65,305 | 65,260 |
| 10% | 10.0% | 32,652 | 32,689 |
| Active Idle | 0 | 0 | |
