Hewlett-Packard Company ProLiant DL580 G4 SPECpower_ssj2008 = 114 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 20, 2011
Hardware Availability: Aug-2006 Software Availability: May-2009 Publication: Feb 17, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 732 20.6
Calibration 2 733 20.3
Calibration 3 733 20.3
100% 732 20.3
90% 716 20.2
80% 704 20.6
70% 690 20.2
60% 673 20.3
50% 656 20.4
40% 639 20.2
30% 623 20.6
20% 607 20.2
10% 590 20.2
Active Idle 575 20.3

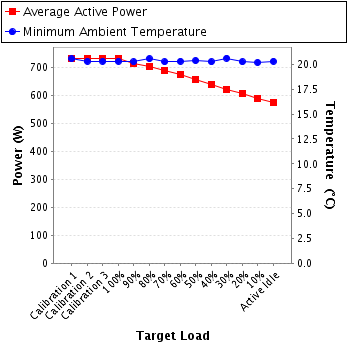

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45373
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 07-1673
Date of Calibration: 28-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main air intake
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 3.53 5.0 0.986 732 0.3%
Calibration 2 210 300.0 3.53 5.0 0.986 733 0.3%
Calibration 3 210 300.0 3.53 5.0 0.987 733 0.3%
100% 211 300.0 3.52 5.0 0.987 732 0.3%
90% 210 300.0 3.45 5.0 0.986 716 0.3%
80% 210 300.0 3.40 5.0 0.985 704 0.3%
70% 211 300.0 3.33 5.0 0.983 690 0.4%
60% 210 300.0 3.26 5.0 0.983 673 0.4%
50% 211 300.0 3.17 5.0 0.981 656 0.4%
40% 211 300.0 3.09 5.0 0.980 639 0.4%
30% 211 300.0 3.02 5.0 0.980 623 0.4%
20% 211 300.0 2.94 5.0 0.980 607 0.4%
10% 211 300.0 2.86 5.0 0.980 590 0.4%
Active Idle 211 300.0 2.78 5.0 0.981 575 0.4%
Power details for pwr1
