SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/SS10 (DK1) | SPECpower_ssj2008 = 1,701 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jan 27, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Jun-2010 | Publication: | Feb 23, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

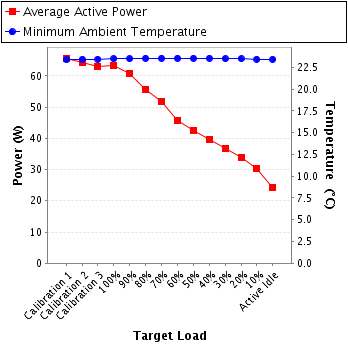

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 65.6 | 23.4 |
| Calibration 2 | 64.2 | 23.4 |
| Calibration 3 | 63.0 | 23.4 |
| 100% | 63.2 | 23.5 |
| 90% | 60.8 | 23.5 |
| 80% | 55.7 | 23.6 |
| 70% | 51.8 | 23.6 |
| 60% | 45.6 | 23.6 |
| 50% | 42.5 | 23.6 |
| 40% | 39.6 | 23.6 |
| 30% | 36.6 | 23.5 |
| 20% | 33.7 | 23.5 |
| 10% | 30.4 | 23.4 |
| Active Idle | 24.3 | 23.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | B102481 |
| Date of Calibration: | 07-Jul-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 99.7 | 150.0 | 0.675 | 1.0 | 0.976 | 65.6 | 0.4% |
| Calibration 2 | 99.7 | 150.0 | 0.661 | 1.0 | 0.976 | 64.2 | 0.4% |
| Calibration 3 | 99.7 | 150.0 | 0.647 | 1.0 | 0.976 | 63.0 | 0.4% |
| 100% | 99.7 | 150.0 | 0.650 | 1.0 | 0.976 | 63.2 | 0.4% |
| 90% | 99.7 | 150.0 | 0.628 | 1.0 | 0.974 | 60.8 | 0.4% |
| 80% | 99.7 | 150.0 | 0.577 | 1.0 | 0.971 | 55.7 | 0.4% |
| 70% | 99.7 | 150.0 | 0.537 | 1.0 | 0.969 | 51.8 | 0.4% |
| 60% | 99.7 | 150.0 | 0.474 | 1.0 | 0.965 | 45.6 | 0.5% |
| 50% | 99.7 | 150.0 | 0.444 | 1.0 | 0.960 | 42.5 | 0.5% |
| 40% | 99.8 | 150.0 | 0.416 | 1.0 | 0.955 | 39.6 | 0.5% |
| 30% | 99.8 | 150.0 | 0.388 | 1.0 | 0.948 | 36.6 | 0.6% |
| 20% | 99.8 | 150.0 | 0.360 | 1.0 | 0.940 | 33.7 | 0.6% |
| 10% | 99.8 | 150.0 | 0.327 | 1.0 | 0.934 | 30.4 | 0.7% |
| Active Idle | 99.8 | 150.0 | 0.260 | 1.0 | 0.936 | 24.3 | 0.8% |
