Hitachi, Ltd. HA8000/TS10 (FK1) SPECpower_ssj2008 = 2,018 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jan 28, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 124 23.1
Calibration 2 125 23.1
Calibration 3 123 23.1
100% 124 23.1
90% 114 23.1
80% 107 23.1
70% 94.6 23.1
60% 84.5 23.1
50% 76.5 23.1
40% 70.0 23.1
30% 64.1 23.1
20% 58.4 23.1
10% 52.0 23.1
Active Idle 43.5 23.1

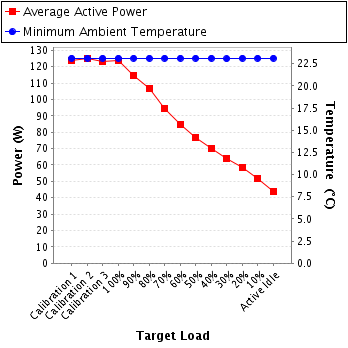

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B102481
Date of Calibration: 07-Jul-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 99.6 150.0 1.27 2.0 0.978 124 0.4%
Calibration 2 99.6 150.0 1.28 2.0 0.979 125 0.4%
Calibration 3 99.7 150.0 1.26 2.0 0.978 123 0.4%
100% 99.6 150.0 1.27 2.0 0.978 124 0.4%
90% 99.7 150.0 1.18 2.0 0.974 114 0.4%
80% 99.7 150.0 1.10 2.0 0.971 107 0.4%
70% 99.7 150.0 0.981 2.0 0.969 94.6 0.5%
60% 99.7 150.0 0.874 1.0 0.970 84.5 0.3%
50% 99.7 150.0 0.789 1.0 0.973 76.5 0.3%
40% 99.7 150.0 0.720 1.0 0.977 70.0 0.4%
30% 99.7 150.0 0.656 1.0 0.980 64.1 0.4%
20% 99.8 150.0 0.598 1.0 0.981 58.4 0.4%
10% 99.8 150.0 0.533 1.0 0.978 52.0 0.4%
Active Idle 99.8 150.0 0.448 1.0 0.974 43.5 0.5%

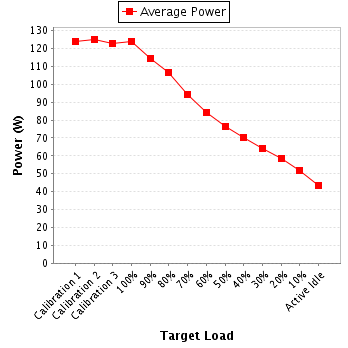

Power details for pwr1
