SPECpower_ssj2008
Host 'WIN-SEB6MBU6KBE' Performance Report
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS110 (CK1) | ssj_ops@100% = 324,736 ssj_ops@100% per JVM = 162,368 |
||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jan 31, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Jun-2010 | Publication: | Feb 23, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 324,880 | ||
| Calibration 2 | 325,218 | ||
| Calibration 3 | 325,888 | ||
| ssj_ops@calibrated=325,553 | |||
| 100% | 99.7% | 325,553 | 324,736 |
| 90% | 90.1% | 292,998 | 293,249 |
| 80% | 79.6% | 260,443 | 259,151 |
| 70% | 70.0% | 227,887 | 227,859 |
| 60% | 59.8% | 195,332 | 194,677 |
| 50% | 50.3% | 162,777 | 163,721 |
| 40% | 39.9% | 130,221 | 129,976 |
| 30% | 29.6% | 97,666 | 96,449 |
| 20% | 19.9% | 65,111 | 64,688 |
| 10% | 9.9% | 32,555 | 32,162 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (CK1) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X3480 |
| CPU Characteristics: | Quad Core, 3.06GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600E ECC CL9; slots DIMM_#2 and DIMM_#4 populated |
| Power Supply Quantity and Rating (W): | 1 x 400 |
| Power Supply Details: | DELTA TDPS-400BB |
| Disk Drive: | 1 x 250GB SATA (Hitachi P/N:GQ-UH72504C�j |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82578DM Gigabit Network Connection (onboard), 1 x Intel 82574L Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Standard |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1875m -Xmx1875m -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 6FAS-F4 |
| Management Firmware Version: | 07.35 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-SEB6MBU6KBE.001 | 163,622 |
| WIN-SEB6MBU6KBE.002 | 161,114 |
| ssj_ops@100% | 324,736 |
| ssj_ops@100% per JVM | 162,368 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 164,823 | ||
| Calibration 2 | 163,595 | ||
| Calibration 3 | 165,000 | ||
| ssj_ops@calibrated=164,297 | |||
| 100% | 99.6% | 164,297 | 163,622 |
| 90% | 90.1% | 147,867 | 147,978 |
| 80% | 79.4% | 131,438 | 130,405 |
| 70% | 70.5% | 115,008 | 115,760 |
| 60% | 60.0% | 98,578 | 98,514 |
| 50% | 50.5% | 82,149 | 83,020 |
| 40% | 40.2% | 65,719 | 66,032 |
| 30% | 29.4% | 49,289 | 48,251 |
| 20% | 20.0% | 32,859 | 32,856 |
| 10% | 9.8% | 16,430 | 16,154 |
| Active Idle | 0 | 0 | |

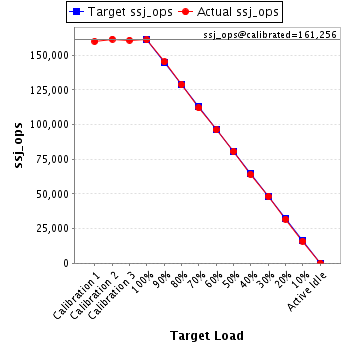

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 160,058 | ||
| Calibration 2 | 161,624 | ||
| Calibration 3 | 160,889 | ||
| ssj_ops@calibrated=161,256 | |||
| 100% | 99.9% | 161,256 | 161,114 |
| 90% | 90.1% | 145,131 | 145,270 |
| 80% | 79.8% | 129,005 | 128,746 |
| 70% | 69.5% | 112,879 | 112,100 |
| 60% | 59.6% | 96,754 | 96,163 |
| 50% | 50.0% | 80,628 | 80,701 |
| 40% | 39.7% | 64,502 | 63,943 |
| 30% | 29.9% | 48,377 | 48,198 |
| 20% | 19.7% | 32,251 | 31,832 |
| 10% | 9.9% | 16,126 | 16,008 |
| Active Idle | 0 | 0 | |
