IBM Corporation IBM System x3620 M3 ssj_ops@100% = 932,916
ssj_ops@100% per JVM = 155,486
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Jan 27, 2011
Hardware Availability: Mar-2011 Software Availability: Jun-2009 Publication: Mar 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     932,707
Calibration 2     933,726
Calibration 3     933,457
ssj_ops@calibrated=933,592
100% 99.9% 933,592 932,916
90% 89.8% 840,233 838,119
80% 79.8% 746,873 745,354
70% 70.2% 653,514 655,208
60% 59.8% 560,155 558,720
50% 50.2% 466,796 468,248
40% 39.9% 373,437 372,349
30% 30.2% 280,078 281,519
20% 20.1% 186,718 187,342
10% 9.9% 93,359 92,380
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: IBM System x3620 M3
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3620 M3
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: 6-Core, 3.07GHz, 12MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R; slots 3, 6, 8, 11, 14 and 16 populated
Power Supply Quantity and Rating (W): 1 x 675
Power Supply Details: IBM P/N:39Y7216
Disk Drive: 1 x 500GB 7200RPM 3.5" SATA (IBM P/N:42C0468)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82575EB Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: HSE117WUS
Management Firmware Version: YUOO91I
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-BEITOU-SIT.001 153,879
WIN-BEITOU-SIT.002 155,333
WIN-BEITOU-SIT.003 156,492
WIN-BEITOU-SIT.004 155,557
WIN-BEITOU-SIT.005 154,469
WIN-BEITOU-SIT.006 157,187
ssj_ops@100% 932,916
ssj_ops@100% per JVM 155,486

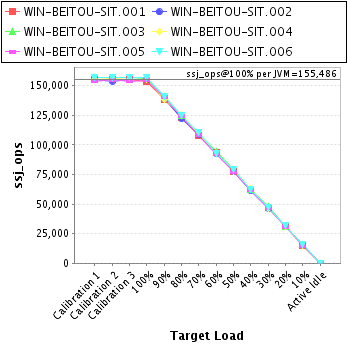

Graph of per-instance results
JVM 'WIN-BEITOU-SIT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,144
Calibration 2     155,117
Calibration 3     154,870
ssj_ops@calibrated=154,993
100% 99.3% 154,993 153,879
90% 89.2% 139,494 138,190
80% 79.5% 123,995 123,212
70% 69.8% 108,495 108,192
60% 60.3% 92,996 93,442
50% 49.9% 77,497 77,367
40% 40.1% 61,997 62,184
30% 30.5% 46,498 47,282
20% 20.3% 30,999 31,387
10% 9.9% 15,499 15,284
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,256
Calibration 2     153,981
Calibration 3     155,165
ssj_ops@calibrated=154,573
100% 100.5% 154,573 155,333
90% 90.0% 139,116 139,175
80% 79.1% 123,658 122,304
70% 70.6% 108,201 109,103
60% 59.9% 92,744 92,558
50% 50.2% 77,286 77,580
40% 39.7% 61,829 61,292
30% 30.2% 46,372 46,674
20% 20.0% 30,915 30,966
10% 10.2% 15,457 15,738
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,987
Calibration 2     157,083
Calibration 3     157,214
ssj_ops@calibrated=157,149
100% 99.6% 157,149 156,492
90% 89.7% 141,434 140,967
80% 79.6% 125,719 125,161
70% 69.9% 110,004 109,816
60% 60.3% 94,289 94,772
50% 50.4% 78,574 79,159
40% 39.8% 62,860 62,478
30% 30.4% 47,145 47,812
20% 20.0% 31,430 31,471
10% 9.9% 15,715 15,494
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,901
Calibration 2     156,013
Calibration 3     155,343
ssj_ops@calibrated=155,678
100% 99.9% 155,678 155,557
90% 89.1% 140,110 138,700
80% 80.6% 124,543 125,484
70% 70.3% 108,975 109,497
60% 59.7% 93,407 92,995
50% 49.8% 77,839 77,575
40% 40.3% 62,271 62,775
30% 29.6% 46,703 46,010
20% 19.9% 31,136 30,990
10% 9.8% 15,568 15,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,646
Calibration 2     154,868
Calibration 3     153,892
ssj_ops@calibrated=154,380
100% 100.1% 154,380 154,469
90% 91.0% 138,942 140,417
80% 80.4% 123,504 124,083
70% 70.0% 108,066 108,104
60% 59.7% 92,628 92,232
50% 50.2% 77,190 77,474
40% 39.9% 61,752 61,650
30% 30.2% 46,314 46,678
20% 20.1% 30,876 31,044
10% 9.6% 15,438 14,776
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BEITOU-SIT.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,772
Calibration 2     156,664
Calibration 3     156,974
ssj_ops@calibrated=156,819
100% 100.2% 156,819 157,187
90% 89.7% 141,137 140,670
80% 79.8% 125,455 125,110
70% 70.5% 109,773 110,497
60% 59.1% 94,091 92,721
50% 50.4% 78,409 79,093
40% 39.5% 62,727 61,970
30% 30.0% 47,046 47,063
20% 20.1% 31,364 31,484
10% 10.1% 15,682 15,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
