Hitachi, Ltd. BS320 Server Blade C51P5 ssj_ops@100% = 9,283,341
ssj_ops@100% per Host = 928,334
ssj_ops@100% per JVM = 154,722
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 8, 2011
Hardware Availability: Feb-2011 Software Availability: Jun-2010 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,345,059
Calibration 2     9,317,992
Calibration 3     9,314,040
ssj_ops@calibrated=9,316,016
100% 99.6% 9,316,016 9,283,341
90% 90.0% 8,384,415 8,386,941
80% 80.0% 7,452,813 7,453,722
70% 70.0% 6,521,211 6,523,006
60% 60.1% 5,589,610 5,598,355
50% 50.0% 4,658,008 4,659,595
40% 40.1% 3,726,407 3,731,980
30% 30.1% 2,794,805 2,800,831
20% 20.0% 1,863,203 1,859,930
10% 10.0% 931,602 933,703
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
10 20 120 240 240 10 60
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Server Chassis BS320A
Form Factor: 6U
Power Supply Quantity and Rating (W): 3 x 1640
Power Supply Details: Hitachi SWR160005-U
Network Switch: 1
Network Switch Details: Hitachi GG-BE9LSWM1BX
KVM Switch: N/A
KVM Switch Details: N/A
Other Hardware: N/A
Comment: N/A
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 10
Comment: None
Hardware per Node
Hardware Vendor: Hitachi, Ltd.
Model: BS320 Server Blade C51P5
Form Factor: Blade
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600R ECC CL9 ; slots Memory0,1,2,3,4, and 5 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB SSD SATA (Hitachi P/N: GG-UH9N32DN1EX)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82575EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500 -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: G15
Management Firmware Version: 01-51
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64 bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
WIN-0XZPOTYEAFV 927,093
WIN-2T4FNUP38BQ 929,845
WIN-2Y8EPIOJY83 926,616
WIN-42W0OIE8X3P 934,313
WIN-79T492G400U 925,308
WIN-GWV8YXV2C8J 935,688
WIN-IRRKSMSAYI0 924,390
WIN-K4GNHJ9Z5JD 923,111
WIN-KKOD3E40P2S 928,623
WIN-XPV7M4WY386 928,354
ssj_ops@100% 9,283,341
ssj_ops@100% per Host 928,334
ssj_ops@100% per JVM 154,722

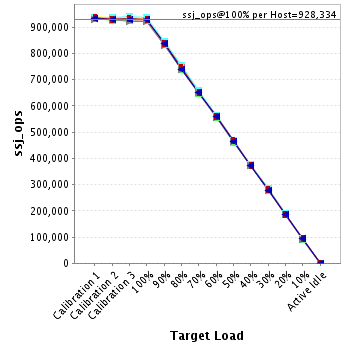

Graph of per-host results
Host 'WIN-0XZPOTYEAFV' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     936,173
Calibration 2     932,856
Calibration 3     931,525
ssj_ops@calibrated=932,190
100% 99.5% 932,190 927,093
90% 90.0% 838,971 839,246
80% 79.9% 745,752 745,154
70% 70.0% 652,533 652,173
60% 60.2% 559,314 560,738
50% 50.1% 466,095 467,176
40% 40.1% 372,876 373,866
30% 30.0% 279,657 279,325
20% 20.0% 186,438 186,833
10% 10.0% 93,219 93,423
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-2T4FNUP38BQ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     936,690
Calibration 2     936,030
Calibration 3     933,147
ssj_ops@calibrated=934,588
100% 99.5% 934,588 929,845
90% 90.3% 841,130 843,603
80% 80.1% 747,671 748,155
70% 70.2% 654,212 655,614
60% 60.2% 560,753 562,503
50% 50.0% 467,294 467,363
40% 39.9% 373,835 372,955
30% 30.2% 280,377 282,399
20% 19.8% 186,918 185,386
10% 10.1% 93,459 94,169
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-2Y8EPIOJY83' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     932,190
Calibration 2     925,628
Calibration 3     927,291
ssj_ops@calibrated=926,460
100% 100.0% 926,460 926,616
90% 90.2% 833,814 836,036
80% 79.9% 741,168 740,474
70% 69.9% 648,522 647,876
60% 60.2% 555,876 557,980
50% 49.8% 463,230 461,350
40% 40.1% 370,584 371,646
30% 30.1% 277,938 278,423
20% 19.9% 185,292 184,153
10% 10.0% 92,646 92,368
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-42W0OIE8X3P' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     941,993
Calibration 2     935,810
Calibration 3     936,215
ssj_ops@calibrated=936,013
100% 99.8% 936,013 934,313
90% 90.0% 842,411 842,031
80% 80.0% 748,810 748,969
70% 70.0% 655,209 654,897
60% 60.2% 561,608 563,370
50% 49.9% 468,006 466,614
40% 40.0% 374,405 374,448
30% 30.1% 280,804 282,085
20% 20.1% 187,203 187,954
10% 10.1% 93,601 94,246
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-79T492G400U' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     929,015
Calibration 2     929,660
Calibration 3     928,722
ssj_ops@calibrated=929,191
100% 99.6% 929,191 925,308
90% 89.9% 836,272 835,423
80% 80.0% 743,353 743,397
70% 69.9% 650,434 649,809
60% 59.9% 557,514 556,329
50% 49.9% 464,595 463,798
40% 40.0% 371,676 371,759
30% 30.3% 278,757 281,120
20% 19.8% 185,838 183,561
10% 10.0% 92,919 93,076
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-GWV8YXV2C8J' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     937,202
Calibration 2     938,201
Calibration 3     940,160
ssj_ops@calibrated=939,180
100% 99.6% 939,180 935,688
90% 90.0% 845,262 845,291
80% 80.2% 751,344 752,910
70% 70.0% 657,426 657,246
60% 60.1% 563,508 564,398
50% 50.0% 469,590 469,953
40% 40.2% 375,672 377,586
30% 30.3% 281,754 284,274
20% 20.0% 187,836 187,993
10% 10.0% 93,918 94,116
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-IRRKSMSAYI0' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     932,578
Calibration 2     928,746
Calibration 3     929,510
ssj_ops@calibrated=929,128
100% 99.5% 929,128 924,390
90% 90.0% 836,215 836,390
80% 80.2% 743,302 745,219
70% 70.0% 650,390 650,170
60% 60.1% 557,477 558,689
50% 49.9% 464,564 463,977
40% 40.0% 371,651 371,587
30% 29.8% 278,738 276,783
20% 20.0% 185,826 185,935
10% 10.0% 92,913 93,128
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-K4GNHJ9Z5JD' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     929,756
Calibration 2     928,604
Calibration 3     923,899
ssj_ops@calibrated=926,252
100% 99.7% 926,252 923,111
90% 89.7% 833,627 830,915
80% 80.0% 741,001 740,569
70% 70.2% 648,376 650,370
60% 60.0% 555,751 556,134
50% 50.2% 463,126 464,653
40% 40.2% 370,501 372,414
30% 30.1% 277,876 278,540
20% 20.0% 185,250 185,465
10% 9.9% 92,625 91,500
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-KKOD3E40P2S' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,905
Calibration 2     931,665
Calibration 3     935,078
ssj_ops@calibrated=933,371
100% 99.5% 933,371 928,623
90% 89.9% 840,034 839,337
80% 80.1% 746,697 747,767
70% 70.0% 653,360 653,106
60% 59.9% 560,023 558,685
50% 50.2% 466,686 468,442
40% 40.0% 373,348 373,228
30% 30.1% 280,011 280,523
20% 19.9% 186,674 185,901
10% 10.0% 93,337 93,583
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-XPV7M4WY386' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     933,557
Calibration 2     930,794
Calibration 3     928,494
ssj_ops@calibrated=929,644
100% 99.9% 929,644 928,354
90% 90.2% 836,679 838,667
80% 79.7% 743,715 741,109
70% 70.1% 650,751 651,744
60% 60.2% 557,786 559,530
50% 50.2% 464,822 466,270
40% 40.1% 371,857 372,489
30% 29.8% 278,893 277,359
20% 20.1% 185,929 186,750
10% 10.1% 92,964 94,094
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
