SPECpower_ssj2008
Aggregate Performance Report
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH620 | ssj_ops@100% = 1,771,743 ssj_ops@100% per Host = 885,872 ssj_ops@100% per JVM = 147,645 |
||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Feb 11, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Dec-2010 | Publication: | Mar 9, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,773,796 | ||
| Calibration 2 | 1,780,582 | ||
| Calibration 3 | 1,780,729 | ||
| ssj_ops@calibrated=1,780,656 | |||
| 100% | 99.5% | 1,780,656 | 1,771,743 |
| 90% | 88.5% | 1,602,590 | 1,576,346 |
| 80% | 79.9% | 1,424,525 | 1,422,207 |
| 70% | 70.1% | 1,246,459 | 1,247,795 |
| 60% | 60.1% | 1,068,394 | 1,070,758 |
| 50% | 50.0% | 890,328 | 890,121 |
| 40% | 40.1% | 712,262 | 714,400 |
| 30% | 29.8% | 534,197 | 531,471 |
| 20% | 20.0% | 356,131 | 356,738 |
| 10% | 10.0% | 178,066 | 178,486 |
| Active Idle | 0 | 0 | |
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 2 | 4 | 24 | 48 | 24.0 | 2 | 12 |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 2 |
| Comment: | None |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | XH620 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 2930 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2 GB |
| Memory Details: | 2GB 2Rx8 PC3L-10600E ECC |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port BCM 5709 Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software per Node | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Windows Server 2008 R2, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | SAV18 |
| Management Firmware Version: | V018 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |

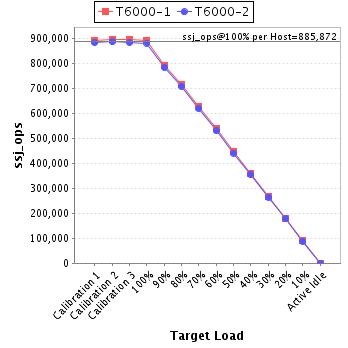

| Host | ssj_ops@100% |
|---|---|
| T6000-1 | 890,533 |
| T6000-2 | 881,210 |
| ssj_ops@100% | 1,771,743 |
| ssj_ops@100% per Host | 885,872 |
| ssj_ops@100% per JVM | 147,645 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 890,593 | ||
| Calibration 2 | 894,555 | ||
| Calibration 3 | 896,792 | ||
| ssj_ops@calibrated=895,674 | |||
| 100% | 99.4% | 895,674 | 890,533 |
| 90% | 88.5% | 806,106 | 792,336 |
| 80% | 79.8% | 716,539 | 714,699 |
| 70% | 70.1% | 626,972 | 628,106 |
| 60% | 60.4% | 537,404 | 540,986 |
| 50% | 50.1% | 447,837 | 448,961 |
| 40% | 40.1% | 358,270 | 359,530 |
| 30% | 29.8% | 268,702 | 266,588 |
| 20% | 20.0% | 179,135 | 179,178 |
| 10% | 10.1% | 89,567 | 90,152 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 883,203 | ||
| Calibration 2 | 886,027 | ||
| Calibration 3 | 883,937 | ||
| ssj_ops@calibrated=884,982 | |||
| 100% | 99.6% | 884,982 | 881,210 |
| 90% | 88.6% | 796,484 | 784,010 |
| 80% | 79.9% | 707,986 | 707,508 |
| 70% | 70.0% | 619,487 | 619,689 |
| 60% | 59.9% | 530,989 | 529,772 |
| 50% | 49.8% | 442,491 | 441,160 |
| 40% | 40.1% | 353,993 | 354,870 |
| 30% | 29.9% | 265,495 | 264,883 |
| 20% | 20.1% | 176,996 | 177,559 |
| 10% | 10.0% | 88,498 | 88,334 |
| Active Idle | 0 | 0 | |
