SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/TS20 (LK1) | SPECpower_ssj2008 = 2,075 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Feb 2, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Jun-2010 | Publication: | Mar 9, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

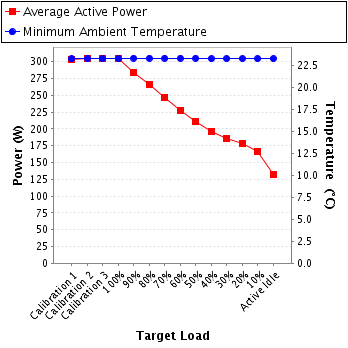

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 303 | 23.2 |
| Calibration 2 | 305 | 23.2 |
| Calibration 3 | 305 | 23.2 |
| 100% | 304 | 23.2 |
| 90% | 284 | 23.3 |
| 80% | 266 | 23.3 |
| 70% | 246 | 23.3 |
| 60% | 227 | 23.3 |
| 50% | 211 | 23.3 |
| 40% | 196 | 23.2 |
| 30% | 186 | 23.2 |
| 20% | 179 | 23.2 |
| 10% | 166 | 23.2 |
| Active Idle | 132 | 23.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | B102481 |
| Date of Calibration: | 07-Jul-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 99.3 | 150.0 | 3.07 | 5.0 | 0.992 | 303 | 0.4% |
| Calibration 2 | 99.3 | 150.0 | 3.09 | 5.0 | 0.992 | 305 | 0.4% |
| Calibration 3 | 99.3 | 150.0 | 3.10 | 5.0 | 0.992 | 305 | 0.4% |
| 100% | 99.3 | 150.0 | 3.09 | 5.0 | 0.992 | 304 | 0.4% |
| 90% | 99.4 | 150.0 | 2.89 | 5.0 | 0.991 | 284 | 0.4% |
| 80% | 99.4 | 150.0 | 2.70 | 5.0 | 0.989 | 266 | 0.4% |
| 70% | 99.4 | 150.0 | 2.51 | 5.0 | 0.988 | 246 | 0.4% |
| 60% | 99.5 | 150.0 | 2.31 | 5.0 | 0.987 | 227 | 0.5% |
| 50% | 99.5 | 150.0 | 2.15 | 5.0 | 0.987 | 211 | 0.5% |
| 40% | 99.5 | 150.0 | 2.00 | 5.0 | 0.986 | 196 | 0.5% |
| 30% | 99.5 | 150.0 | 1.90 | 5.0 | 0.986 | 186 | 0.5% |
| 20% | 99.5 | 150.0 | 1.82 | 2.0 | 0.986 | 179 | 0.3% |
| 10% | 99.6 | 150.0 | 1.70 | 2.0 | 0.983 | 166 | 0.3% |
| Active Idle | 99.6 | 150.0 | 1.35 | 2.0 | 0.979 | 132 | 0.4% |
