Hitachi, Ltd. HA8000/TS20 (LK1) ssj_ops@100% = 900,403
ssj_ops@100% per JVM = 75,034
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 2, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     888,538
Calibration 2     904,615
Calibration 3     903,181
ssj_ops@calibrated=903,898
100% 99.6% 903,898 900,403
90% 90.0% 813,508 813,134
80% 80.0% 723,118 722,964
70% 70.0% 632,729 632,985
60% 60.1% 542,339 543,278
50% 50.3% 451,949 454,459
40% 39.9% 361,559 360,690
30% 30.2% 271,169 273,373
20% 20.1% 180,780 181,287
10% 10.0% 90,390 90,557
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/TS20 (LK1)
Form Factor: Tower
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3-10600R ECC CL9; slots DIMM_#01,#02.#03,#04,#05 and DIMM_#06 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: DELTA DPS-750HB (Hitachi P/N:GQ-BP2330)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70645G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances: 12
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 7TCSE-F9
Management Firmware Version: 08.38
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-89DDQTMJ71D.001 73,547
WIN-89DDQTMJ71D.002 75,350
WIN-89DDQTMJ71D.003 75,169
WIN-89DDQTMJ71D.004 75,575
WIN-89DDQTMJ71D.005 75,524
WIN-89DDQTMJ71D.006 75,421
WIN-89DDQTMJ71D.007 75,364
WIN-89DDQTMJ71D.008 74,488
WIN-89DDQTMJ71D.009 75,912
WIN-89DDQTMJ71D.010 74,707
WIN-89DDQTMJ71D.011 75,281
WIN-89DDQTMJ71D.012 74,065
ssj_ops@100% 900,403
ssj_ops@100% per JVM 75,034
Graph of per-instance results
JVM 'WIN-89DDQTMJ71D.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,695
Calibration 2     75,374
Calibration 3     74,878
ssj_ops@calibrated=75,126
100% 97.9% 75,126 73,547
90% 89.6% 67,614 67,341
80% 80.6% 60,101 60,566
70% 70.5% 52,588 52,928
60% 59.1% 45,076 44,390
50% 50.5% 37,563 37,959
40% 39.8% 30,050 29,878
30% 30.3% 22,538 22,760
20% 20.6% 15,025 15,479
10% 10.0% 7,513 7,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,672
Calibration 2     74,775
Calibration 3     75,628
ssj_ops@calibrated=75,201
100% 100.2% 75,201 75,350
90% 90.7% 67,681 68,190
80% 80.5% 60,161 60,522
70% 70.4% 52,641 52,913
60% 60.9% 45,121 45,769
50% 50.2% 37,601 37,768
40% 39.7% 30,080 29,855
30% 29.6% 22,560 22,289
20% 19.9% 15,040 14,937
10% 9.9% 7,520 7,424
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,130
Calibration 2     74,981
Calibration 3     75,666
ssj_ops@calibrated=75,324
100% 99.8% 75,324 75,169
90% 90.1% 67,791 67,862
80% 79.4% 60,259 59,774
70% 69.4% 52,727 52,293
60% 60.2% 45,194 45,345
50% 50.8% 37,662 38,282
40% 40.2% 30,130 30,262
30% 30.1% 22,597 22,699
20% 19.9% 15,065 15,017
10% 10.0% 7,532 7,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

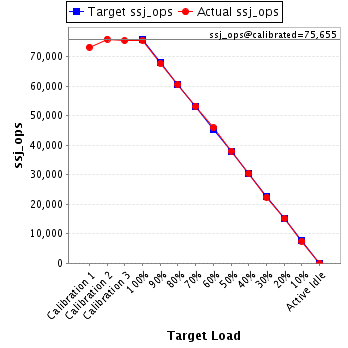

JVM 'WIN-89DDQTMJ71D.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,190
Calibration 2     75,882
Calibration 3     75,428
ssj_ops@calibrated=75,655
100% 99.9% 75,655 75,575
90% 89.5% 68,090 67,688
80% 79.9% 60,524 60,471
70% 70.3% 52,959 53,158
60% 60.6% 45,393 45,871
50% 50.2% 37,828 38,002
40% 40.2% 30,262 30,397
30% 29.6% 22,697 22,380
20% 20.0% 15,131 15,124
10% 9.9% 7,566 7,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,387
Calibration 2     75,939
Calibration 3     76,209
ssj_ops@calibrated=76,074
100% 99.3% 76,074 75,524
90% 90.9% 68,466 69,169
80% 79.6% 60,859 60,547
70% 70.1% 53,252 53,328
60% 59.7% 45,644 45,431
50% 50.3% 38,037 38,235
40% 39.6% 30,430 30,115
30% 31.1% 22,822 23,632
20% 19.9% 15,215 15,124
10% 10.0% 7,607 7,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,035
Calibration 2     75,746
Calibration 3     75,314
ssj_ops@calibrated=75,530
100% 99.9% 75,530 75,421
90% 90.9% 67,977 68,640
80% 79.2% 60,424 59,809
70% 70.5% 52,871 53,253
60% 59.4% 45,318 44,866
50% 50.1% 37,765 37,806
40% 40.1% 30,212 30,270
30% 31.1% 22,659 23,473
20% 20.0% 15,106 15,103
10% 10.0% 7,553 7,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,664
Calibration 2     75,871
Calibration 3     75,062
ssj_ops@calibrated=75,466
100% 99.9% 75,466 75,364
90% 89.5% 67,920 67,534
80% 80.6% 60,373 60,860
70% 69.8% 52,827 52,653
60% 60.3% 45,280 45,510
50% 49.7% 37,733 37,475
40% 39.7% 30,187 29,974
30% 29.8% 22,640 22,471
20% 20.0% 15,093 15,092
10% 10.1% 7,547 7,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,720
Calibration 2     74,547
Calibration 3     74,871
ssj_ops@calibrated=74,709
100% 99.7% 74,709 74,488
90% 89.5% 67,238 66,853
80% 78.7% 59,767 58,809
70% 70.5% 52,296 52,663
60% 60.2% 44,825 44,964
50% 50.4% 37,355 37,645
40% 39.7% 29,884 29,694
30% 29.8% 22,413 22,269
20% 19.7% 14,942 14,682
10% 10.4% 7,471 7,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,139
Calibration 2     76,193
Calibration 3     75,694
ssj_ops@calibrated=75,943
100% 100.0% 75,943 75,912
90% 89.4% 68,349 67,884
80% 80.8% 60,755 61,341
70% 69.7% 53,160 52,900
60% 60.2% 45,566 45,696
50% 50.2% 37,972 38,159
40% 40.0% 30,377 30,402
30% 30.4% 22,783 23,112
20% 20.6% 15,189 15,645
10% 10.1% 7,594 7,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

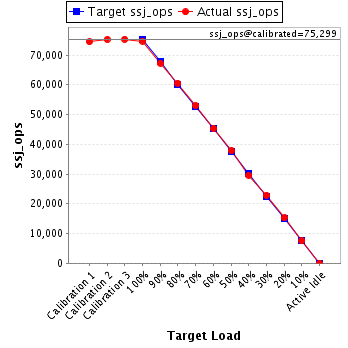

JVM 'WIN-89DDQTMJ71D.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,471
Calibration 2     75,264
Calibration 3     75,334
ssj_ops@calibrated=75,299
100% 99.2% 75,299 74,707
90% 89.4% 67,769 67,280
80% 80.4% 60,239 60,551
70% 70.4% 52,709 53,005
60% 60.1% 45,179 45,291
50% 50.3% 37,649 37,860
40% 39.4% 30,120 29,643
30% 30.3% 22,590 22,845
20% 20.2% 15,060 15,245
10% 10.0% 7,530 7,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,971
Calibration 2     75,911
Calibration 3     75,004
ssj_ops@calibrated=75,458
100% 99.8% 75,458 75,281
90% 89.5% 67,912 67,524
80% 79.7% 60,366 60,165
70% 69.9% 52,820 52,743
60% 59.9% 45,275 45,179
50% 50.2% 37,729 37,909
40% 39.6% 30,183 29,857
30% 30.5% 22,637 23,009
20% 19.9% 15,092 14,993
10% 10.5% 7,546 7,903
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-89DDQTMJ71D.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,463
Calibration 2     74,133
Calibration 3     74,092
ssj_ops@calibrated=74,113
100% 99.9% 74,113 74,065
90% 90.6% 66,701 67,168
80% 80.3% 59,290 59,549
70% 69.0% 51,879 51,149
60% 60.7% 44,468 44,966
50% 50.4% 37,056 37,359
40% 40.9% 29,645 30,344
30% 30.3% 22,234 22,432
20% 20.0% 14,823 14,845
10% 9.4% 7,411 6,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
