Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 932,272
ssj_ops@100% per JVM = 155,379
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Mar 8, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: Mar 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     937,996
Calibration 2     938,499
Calibration 3     936,762
ssj_ops@calibrated=937,631
100% 99.4% 937,631 932,272
90% 89.9% 843,868 842,612
80% 79.6% 750,104 746,625
70% 70.1% 656,341 657,146
60% 59.6% 562,578 559,274
50% 49.9% 468,815 467,770
40% 40.1% 375,052 375,577
30% 30.1% 281,289 282,268
20% 20.0% 187,526 187,061
10% 10.0% 93,763 93,644
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1550m -Xms1950m -Xmx1950m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P08
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-R61MSQUQQU7.001 156,761
WIN-R61MSQUQQU7.002 154,630
WIN-R61MSQUQQU7.003 156,685
WIN-R61MSQUQQU7.004 155,216
WIN-R61MSQUQQU7.005 154,647
WIN-R61MSQUQQU7.006 154,332
ssj_ops@100% 932,272
ssj_ops@100% per JVM 155,379

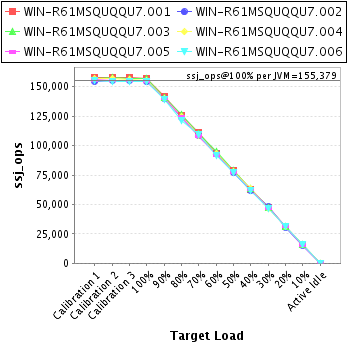

Graph of per-instance results
JVM 'WIN-R61MSQUQQU7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,157
Calibration 2     157,585
Calibration 3     157,922
ssj_ops@calibrated=157,753
100% 99.4% 157,753 156,761
90% 90.1% 141,978 142,142
80% 79.7% 126,203 125,660
70% 70.6% 110,427 111,441
60% 59.3% 94,652 93,506
50% 50.1% 78,877 79,089
40% 39.7% 63,101 62,650
30% 30.1% 47,326 47,534
20% 19.9% 31,551 31,314
10% 9.9% 15,775 15,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,754
Calibration 2     155,551
Calibration 3     155,247
ssj_ops@calibrated=155,399
100% 99.5% 155,399 154,630
90% 89.9% 139,859 139,700
80% 79.7% 124,319 123,907
70% 70.1% 108,779 108,950
60% 60.3% 93,239 93,658
50% 49.8% 77,699 77,441
40% 39.8% 62,160 61,791
30% 30.8% 46,620 47,825
20% 19.8% 31,080 30,699
10% 9.9% 15,540 15,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,153
Calibration 2     157,759
Calibration 3     157,012
ssj_ops@calibrated=157,386
100% 99.6% 157,386 156,685
90% 89.8% 141,647 141,276
80% 80.3% 125,909 126,359
70% 70.3% 110,170 110,692
60% 60.2% 94,431 94,739
50% 50.0% 78,693 78,650
40% 40.1% 62,954 63,174
30% 29.9% 47,216 47,092
20% 20.0% 31,477 31,438
10% 10.1% 15,739 15,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,766
Calibration 2     157,016
Calibration 3     156,275
ssj_ops@calibrated=156,645
100% 99.1% 156,645 155,216
90% 89.5% 140,981 140,214
80% 79.4% 125,316 124,394
70% 69.4% 109,652 108,756
60% 59.5% 93,987 93,213
50% 50.0% 78,323 78,253
40% 40.5% 62,658 63,447
30% 29.6% 46,994 46,390
20% 19.8% 31,329 30,939
10% 10.0% 15,665 15,711
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,966
Calibration 2     155,744
Calibration 3     155,445
ssj_ops@calibrated=155,595
100% 99.4% 155,595 154,647
90% 90.2% 140,035 140,415
80% 80.1% 124,476 124,647
70% 69.5% 108,916 108,145
60% 59.2% 93,357 92,161
50% 49.8% 77,797 77,430
40% 40.4% 62,238 62,913
30% 30.2% 46,678 46,990
20% 20.3% 31,119 31,529
10% 9.9% 15,559 15,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R61MSQUQQU7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,200
Calibration 2     154,844
Calibration 3     154,860
ssj_ops@calibrated=154,852
100% 99.7% 154,852 154,332
90% 89.7% 139,367 138,864
80% 78.6% 123,882 121,658
70% 70.5% 108,397 109,163
60% 59.4% 92,911 91,997
50% 49.7% 77,426 76,908
40% 39.8% 61,941 61,603
30% 30.0% 46,456 46,437
20% 20.1% 30,970 31,142
10% 10.1% 15,485 15,566
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
