Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 934,294
ssj_ops@100% per JVM = 155,716
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Mar 8, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: Mar 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     932,509
Calibration 2     938,074
Calibration 3     935,125
ssj_ops@calibrated=936,600
100% 99.8% 936,600 934,294
90% 90.2% 842,940 845,017
80% 80.1% 749,280 750,314
70% 70.1% 655,620 656,949
60% 60.1% 561,960 562,623
50% 50.0% 468,300 468,201
40% 39.9% 374,640 373,385
30% 30.0% 280,980 281,272
20% 20.1% 187,320 188,321
10% 10.1% 93,660 94,790
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB SATA 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1550m -Xms1950m -Xmx1950m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: P08
Management Firmware Version: 1.20
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-ULK8O9BFFGJ.001 157,436
WIN-ULK8O9BFFGJ.002 154,738
WIN-ULK8O9BFFGJ.003 156,047
WIN-ULK8O9BFFGJ.004 155,650
WIN-ULK8O9BFFGJ.005 155,638
WIN-ULK8O9BFFGJ.006 154,786
ssj_ops@100% 934,294
ssj_ops@100% per JVM 155,716

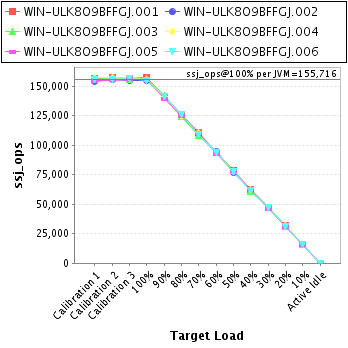

Graph of per-instance results
JVM 'WIN-ULK8O9BFFGJ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,077
Calibration 2     157,463
Calibration 3     156,480
ssj_ops@calibrated=156,971
100% 100.3% 156,971 157,436
90% 89.8% 141,274 140,912
80% 80.4% 125,577 126,197
70% 70.3% 109,880 110,397
60% 60.0% 94,183 94,120
50% 50.3% 78,486 78,917
40% 39.9% 62,789 62,575
30% 30.2% 47,091 47,359
20% 20.4% 31,394 32,021
10% 10.2% 15,697 15,984
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ULK8O9BFFGJ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,089
Calibration 2     155,924
Calibration 3     154,730
ssj_ops@calibrated=155,327
100% 99.6% 155,327 154,738
90% 90.8% 139,795 141,020
80% 80.3% 124,262 124,708
70% 70.0% 108,729 108,678
60% 60.7% 93,196 94,234
50% 49.6% 77,664 77,088
40% 40.3% 62,131 62,637
30% 30.1% 46,598 46,828
20% 20.1% 31,065 31,256
10% 10.1% 15,533 15,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ULK8O9BFFGJ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,445
Calibration 2     156,871
Calibration 3     155,280
ssj_ops@calibrated=156,075
100% 100.0% 156,075 156,047
90% 90.8% 140,468 141,728
80% 79.8% 124,860 124,608
70% 69.2% 109,253 107,990
60% 60.2% 93,645 93,920
50% 50.2% 78,038 78,324
40% 39.2% 62,430 61,121
30% 30.3% 46,823 47,230
20% 20.0% 31,215 31,207
10% 10.1% 15,608 15,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ULK8O9BFFGJ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,872
Calibration 2     157,099
Calibration 3     156,664
ssj_ops@calibrated=156,881
100% 99.2% 156,881 155,650
90% 89.8% 141,193 140,918
80% 79.4% 125,505 124,599
70% 70.4% 109,817 110,455
60% 59.9% 94,129 93,976
50% 49.6% 78,441 77,793
40% 39.9% 62,753 62,660
30% 30.0% 47,064 47,055
20% 20.3% 31,376 31,916
10% 10.0% 15,688 15,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ULK8O9BFFGJ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,526
Calibration 2     154,826
Calibration 3     155,907
ssj_ops@calibrated=155,366
100% 100.2% 155,366 155,638
90% 89.6% 139,830 139,214
80% 80.1% 124,293 124,391
70% 71.0% 108,756 110,374
60% 59.6% 93,220 92,531
50% 50.2% 77,683 78,045
40% 40.3% 62,147 62,650
30% 29.6% 46,610 45,964
20% 20.0% 31,073 31,044
10% 10.1% 15,537 15,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ULK8O9BFFGJ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,500
Calibration 2     155,892
Calibration 3     156,063
ssj_ops@calibrated=155,978
100% 99.2% 155,978 154,786
90% 90.5% 140,380 141,225
80% 80.7% 124,782 125,810
70% 69.9% 109,184 109,054
60% 60.2% 93,587 93,841
50% 50.0% 77,989 78,033
40% 39.6% 62,391 61,743
30% 30.0% 46,793 46,835
20% 19.8% 31,196 30,877
10% 10.2% 15,598 15,848
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
