SPECpower_ssj2008
Host 'WIN-0G7SE7KF5PN' Performance Report
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AT110 F2 (Intel Xeon E3-1270) | ssj_ops@100% = 393,522 ssj_ops@100% per JVM = 196,761 |
||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Apr 26, 2011 |
| Hardware Availability: | Apr-2011 | Software Availability: | Dec-2009 | Publication: | May 18, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 394,704 | ||
| Calibration 2 | 395,211 | ||
| Calibration 3 | 393,197 | ||
| ssj_ops@calibrated=394,204 | |||
| 100% | 99.8% | 394,204 | 393,522 |
| 90% | 90.0% | 354,783 | 354,617 |
| 80% | 80.0% | 315,363 | 315,397 |
| 70% | 69.9% | 275,943 | 275,609 |
| 60% | 59.5% | 236,522 | 234,743 |
| 50% | 50.3% | 197,102 | 198,224 |
| 40% | 40.3% | 157,682 | 158,821 |
| 30% | 29.8% | 118,261 | 117,494 |
| 20% | 19.9% | 78,841 | 78,526 |
| 10% | 9.8% | 39,420 | 38,532 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AT110 F2 (Intel Xeon E3-1270) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon E3-1270 |
| CPU Characteristics: | Four core, 3.4GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3400 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600E ECC; slots 1A,2A |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | FSP450-60EP |
| Disk Drive: | 1 x 1024GB 3.5" SATA, Acer Part#KH.01KW8.009 |
| Disk Controller: | Onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Single-port Intel 82579 Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | USB |
| Mouse: | USB |
| Monitor: | Direct |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xms1400m -Xmn1950 -Xmx1950m -Xcompressedrefs -Xaggressive -Xgcpolicy:gencon -Xlp -XlockReservation -Xnoloa -XtlhPrefetch |
| JVM Affinity: | start /affinity [0F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1950 |
| JVM Maximum Heap (MB): | 1950 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P01 |
| Management Firmware Version: | None |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | SUT |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |

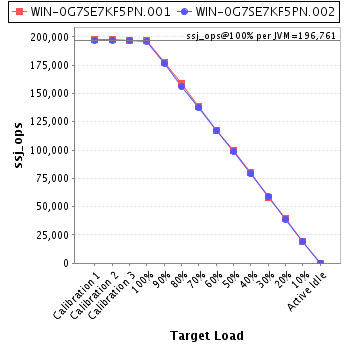

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-0G7SE7KF5PN.001 | 197,150 |
| WIN-0G7SE7KF5PN.002 | 196,372 |
| ssj_ops@100% | 393,522 |
| ssj_ops@100% per JVM | 196,761 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 197,922 | ||
| Calibration 2 | 197,991 | ||
| Calibration 3 | 196,546 | ||
| ssj_ops@calibrated=197,269 | |||
| 100% | 99.9% | 197,269 | 197,150 |
| 90% | 90.1% | 177,542 | 177,717 |
| 80% | 80.7% | 157,815 | 159,241 |
| 70% | 70.1% | 138,088 | 138,199 |
| 60% | 59.7% | 118,361 | 117,702 |
| 50% | 50.4% | 98,634 | 99,474 |
| 40% | 40.4% | 78,907 | 79,794 |
| 30% | 29.7% | 59,181 | 58,514 |
| 20% | 20.2% | 39,454 | 39,759 |
| 10% | 9.7% | 19,727 | 19,041 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 196,782 | ||
| Calibration 2 | 197,220 | ||
| Calibration 3 | 196,651 | ||
| ssj_ops@calibrated=196,935 | |||
| 100% | 99.7% | 196,935 | 196,372 |
| 90% | 89.8% | 177,242 | 176,900 |
| 80% | 79.3% | 157,548 | 156,156 |
| 70% | 69.8% | 137,855 | 137,410 |
| 60% | 59.4% | 118,161 | 117,041 |
| 50% | 50.1% | 98,468 | 98,749 |
| 40% | 40.1% | 78,774 | 79,027 |
| 30% | 29.9% | 59,081 | 58,980 |
| 20% | 19.7% | 39,387 | 38,766 |
| 10% | 9.9% | 19,694 | 19,491 |
| Active Idle | 0 | 0 | |
