Hitachi, Ltd. HA8000/SS10 (DL) | SPECpower_ssj2008 = 3,026 overall ssj_ops/watt | ||||
Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Aug 4, 2011 |
Hardware Availability: | Jul-2011 | Software Availability: | Feb-2011 | Publication: | Aug 24, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

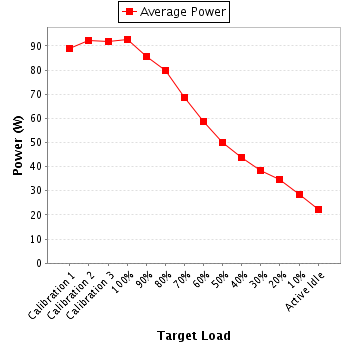

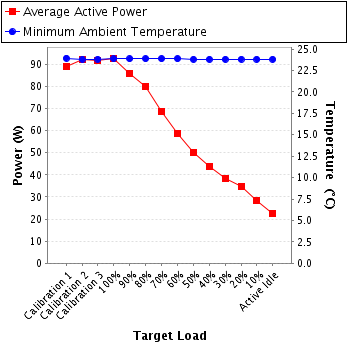

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 88.9 | 23.9 |
Calibration 2 | 92.3 | 23.8 |
Calibration 3 | 91.7 | 23.8 |
100% | 92.8 | 23.9 |
90% | 85.6 | 23.9 |
80% | 80.0 | 23.9 |
70% | 68.6 | 23.9 |
60% | 58.5 | 23.9 |
50% | 50.1 | 23.8 |
40% | 43.8 | 23.8 |
30% | 38.3 | 23.8 |
20% | 34.8 | 23.8 |
10% | 28.4 | 23.8 |
Active Idle | 22.4 | 23.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91K717967 |
Connectivity: | RS-232C |
Input Connection: | Default |
Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
Accredited by: | Yokogawa Meters & Instruments Corporation |
Calibration Label: | S2011-06-52513 |
Date of Calibration: | 28-Jun-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 100.0 | 150.0 | 0.903 | 1.0 | 0.985 | 88.9 | 0.3% |
Calibration 2 | 100.0 | 150.0 | 0.936 | 1.0 | 0.987 | 92.3 | 0.3% |
Calibration 3 | 100.0 | 150.0 | 0.931 | 1.0 | 0.986 | 91.7 | 0.3% |
100% | 100.0 | 150.0 | 0.941 | 1.0 | 0.987 | 92.8 | 0.3% |
90% | 100.0 | 150.0 | 0.876 | 1.0 | 0.978 | 85.6 | 0.3% |
80% | 100.0 | 150.0 | 0.826 | 1.0 | 0.971 | 80.0 | 0.3% |
70% | 100.0 | 150.0 | 0.716 | 1.0 | 0.962 | 68.6 | 0.4% |
60% | 100 | 150.0 | 0.613 | 1.0 | 0.957 | 58.5 | 0.4% |
50% | 100 | 150.0 | 0.527 | 1.0 | 0.951 | 50.1 | 0.5% |
40% | 100 | 150.0 | 0.464 | 0.5 | 0.944 | 43.8 | 0.3% |
30% | 100 | 150.0 | 0.411 | 0.5 | 0.933 | 38.3 | 0.4% |
20% | 100 | 150.0 | 0.378 | 0.5 | 0.922 | 34.8 | 0.4% |
10% | 100 | 150.0 | 0.314 | 0.5 | 0.907 | 28.4 | 0.5% |
Active Idle | 100 | 150.0 | 0.248 | 0.5 | 0.904 | 22.4 | 0.5% |
