Hitachi, Ltd. HA8000/SS10 (DL) | ssj_ops@100% = 329,862 ssj_ops@100% per JVM = 164,931 |
||||
Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Aug 4, 2011 |
Hardware Availability: | Jul-2011 | Software Availability: | Feb-2011 | Publication: | Aug 24, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 330,351 | ||
Calibration 2 | 331,827 | ||
Calibration 3 | 332,280 | ||
ssj_ops@calibrated=332,053 | |||
100% | 99.3% | 332,053 | 329,862 |
90% | 89.5% | 298,848 | 297,079 |
80% | 80.8% | 265,643 | 268,407 |
70% | 70.1% | 232,437 | 232,621 |
60% | 60.0% | 199,232 | 199,185 |
50% | 49.8% | 166,027 | 165,522 |
40% | 40.0% | 132,821 | 132,884 |
30% | 30.2% | 99,616 | 100,211 |
20% | 20.0% | 66,411 | 66,564 |
10% | 10.0% | 33,205 | 33,234 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Hitachi, Ltd. |
Model: | HA8000/SS10 (DL) |
Form Factor: | Tower |
CPU Name: | Intel Xeon E3-1220 |
CPU Characteristics: | Quad Core, 3.10GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 3100 |
CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
Hardware Threads: | 4 (1 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 2 x 4096 MB |
Memory Details: | 4GB 2Rx8 PC3-10600E ECC CL9; slots DIMM_#2 and DIMM_#4 populated |
Power Supply Quantity and Rating (W): | 1 x 250 |
Power Supply Details: | Lead Year TG10-0250-01 |
Disk Drive: | 1 x 250GB SATA (Hitachi P/N:GQ-UH72505S) |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom BCM5718 Dual-Port Gigabit Ethernet Controller (onboard) |
NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (Power saver) |
Operating System (OS): | Microsoft Windows Server 2008 R2 Standard SP1 |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start/affinity [3,C] |
JVM Instances: | 2 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 1.04 |
Management Firmware Version: | 06.14 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |

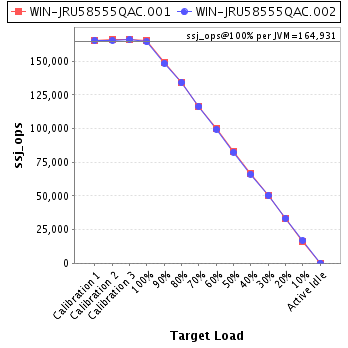

JVM Instance | ssj_ops@100% |
---|---|
WIN-JRU58555QAC.001 | 165,529 |
WIN-JRU58555QAC.002 | 164,334 |
ssj_ops@100% | 329,862 |
ssj_ops@100% per JVM | 164,931 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 164,995 | ||
Calibration 2 | 166,315 | ||
Calibration 3 | 166,084 | ||
ssj_ops@calibrated=166,200 | |||
100% | 99.6% | 166,200 | 165,529 |
90% | 89.5% | 149,580 | 148,694 |
80% | 80.8% | 132,960 | 134,360 |
70% | 70.0% | 116,340 | 116,410 |
60% | 60.1% | 99,720 | 99,860 |
50% | 50.0% | 83,100 | 83,022 |
40% | 40.1% | 66,480 | 66,715 |
30% | 30.1% | 49,860 | 50,001 |
20% | 20.1% | 33,240 | 33,374 |
10% | 9.8% | 16,620 | 16,353 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 165,356 | ||
Calibration 2 | 165,512 | ||
Calibration 3 | 166,195 | ||
ssj_ops@calibrated=165,854 | |||
100% | 99.1% | 165,854 | 164,334 |
90% | 89.5% | 149,268 | 148,386 |
80% | 80.8% | 132,683 | 134,046 |
70% | 70.1% | 116,098 | 116,211 |
60% | 59.9% | 99,512 | 99,325 |
50% | 49.7% | 82,927 | 82,500 |
40% | 39.9% | 66,342 | 66,170 |
30% | 30.3% | 49,756 | 50,210 |
20% | 20.0% | 33,171 | 33,190 |
10% | 10.2% | 16,585 | 16,881 |
Active Idle | 0 | 0 |
