Dell Inc. PowerEdge M610 SPECpower_ssj2008 = 3,348 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 26, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Nov 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,457 22.8
Calibration 2 3,505 22.6
Calibration 3 3,514 22.5
100% 3,504 22.5
90% 3,142 22.5
80% 2,813 22.6
70% 2,544 22.6
60% 2,328 22.8
50% 2,161 22.7
40% 1,995 22.4
30% 1,834 22.4
20% 1,675 22.4
10% 1,476 22.6
Active Idle 873 22.5

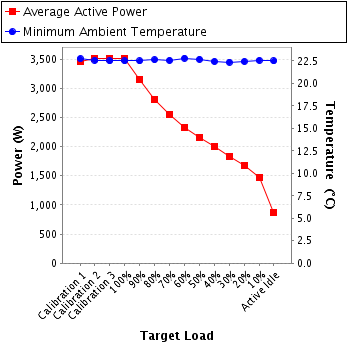

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91KA21980
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 33427-2602
Date of Calibration: 08-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to SUT power supplies 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91KA21978
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 33427-2600
Date of Calibration: 08-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to SUT power supply 3
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 203 300.0 11.8 20.0 0.990 2,366 0.4%
Calibration 2 203 300.0 11.9 20.0 0.990 2,400 0.4%
Calibration 3 203 300.0 11.9 20.0 0.990 2,406 0.4%
100% 204 300.0 11.9 20.0 0.990 2,399 0.4%
90% 205 300.0 10.6 20.0 0.989 2,154 0.4%
80% 205 300.0 9.55 10.0 0.989 1,933 0.3%
70% 205 300.0 8.66 10.0 0.989 1,752 0.3%
60% 205 300.0 7.94 10.0 0.989 1,608 0.3%
50% 205 300.0 7.38 10.0 0.990 1,497 0.3%
40% 205 300.0 6.83 10.0 0.991 1,386 0.3%
30% 205 300.0 6.30 10.0 0.991 1,278 0.4%
20% 205 300.0 5.75 10.0 0.992 1,169 0.4%
10% 205 300.0 5.09 10.0 0.992 1,036 0.4%
Active Idle 205 300.0 3.16 5.0 0.984 637 0.4%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 5.35 10.0 0.989 1,091 0.4%
Calibration 2 207 300.0 5.41 10.0 0.989 1,106 0.4%
Calibration 3 206 300.0 5.43 10.0 0.989 1,109 0.4%
100% 207 300.0 5.41 10.0 0.989 1,105 0.4%
90% 208 300.0 4.82 5.0 0.988 988 0.3%
80% 208 300.0 4.29 5.0 0.987 880 0.3%
70% 207 300.0 3.87 5.0 0.987 792 0.3%
60% 208 300.0 3.51 5.0 0.988 720 0.3%
50% 207 300.0 3.24 5.0 0.988 664 0.4%
40% 207 300.0 2.97 5.0 0.989 608 0.4%
30% 207 300.0 2.72 5.0 0.988 557 0.4%
20% 207 300.0 2.47 5.0 0.988 506 0.4%
10% 207 300.0 2.16 5.0 0.984 440 0.5%
Active Idle 207 300.0 1.21 2.0 0.941 236 0.4%
Power details for pwr2
