Hewlett-Packard Company ProLiant DL165 G7 (2.30 GHz, AMD Opteron 6276 processor) SPECpower_ssj2008 = 2,881 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Oct 18, 2011
Hardware Availability: Nov-2011 Software Availability: Sep-2011 Publication: Nov 14, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 298 21.8
Calibration 2 308 21.7
Calibration 3 309 21.6
100% 308 21.9
90% 294 21.9
80% 278 21.8
70% 261 21.8
60% 240 21.9
50% 214 21.8
40% 186 21.7
30% 160 21.8
20% 137 21.8
10% 116 21.6
Active Idle 68.9 21.6

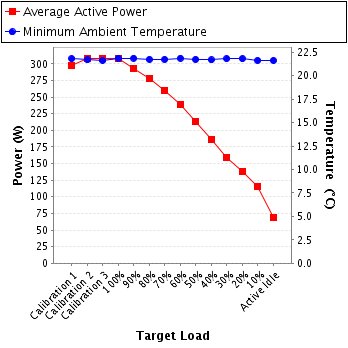

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K208942
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NIST
Accredited by: Hewlett-Packard Company Metrology
Calibration Label: 705949
Date of Calibration: 24-Jan-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 1.43 2.0 0.989 298 0.3%
Calibration 2 211 300.0 1.47 2.0 0.990 308 0.3%
Calibration 3 211 300.0 1.48 2.0 0.989 309 0.3%
100% 211 300.0 1.48 2.0 0.989 308 0.3%
90% 211 300.0 1.41 2.0 0.989 294 0.3%
80% 211 300.0 1.33 2.0 0.988 278 0.3%
70% 211 300.0 1.25 2.0 0.986 261 0.4%
60% 211 300.0 1.15 2.0 0.984 240 0.4%
50% 211 300.0 1.03 2.0 0.980 214 0.4%
40% 211 300.0 0.902 1.0 0.974 186 0.3%
30% 211 300.0 0.782 1.0 0.967 160 0.3%
20% 211 300.0 0.676 1.0 0.962 137 0.4%
10% 211 300.0 0.572 1.0 0.961 116 0.4%
Active Idle 211 300.0 0.350 1.0 0.933 68.9 0.6%

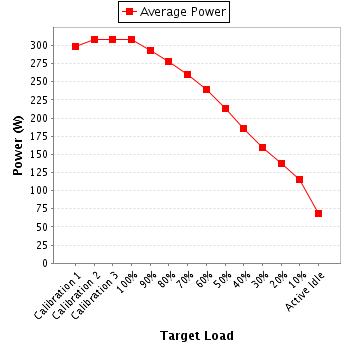

Power details for pwr1
