Dell Inc. Dell PowerEdge R710 (Intel Xeon X5675, 3.06 GHz) SPECpower_ssj2008 = 3,214 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 11, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Nov 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 226 23.6
Calibration 2 227 23.6
Calibration 3 228 23.6
100% 227 23.6
90% 205 23.6
80% 187 23.5
70% 170 23.5
60% 157 23.5
50% 147 23.6
40% 137 23.7
30% 127 23.7
20% 117 23.7
10% 104 23.8
Active Idle 62.2 23.6

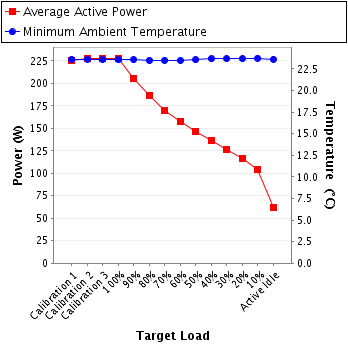

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91KA21979
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 33427-2598
Date of Calibration: 08-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to SUT power supply 1.
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.11 2.0 0.976 226 0.4%
Calibration 2 210 300.0 1.11 2.0 0.976 227 0.4%
Calibration 3 210 300.0 1.11 2.0 0.976 228 0.4%
100% 210 300.0 1.11 2.0 0.976 227 0.4%
90% 210 300.0 1.01 1.0 0.969 205 0.3%
80% 210 300.0 0.923 1.0 0.964 187 0.3%
70% 210 300.0 0.843 1.0 0.959 170 0.3%
60% 210 300.0 0.783 1.0 0.954 157 0.4%
50% 210 300.0 0.737 1.0 0.947 147 0.4%
40% 211 300.0 0.692 1.0 0.939 137 0.4%
30% 211 300.0 0.647 1.0 0.931 127 0.4%
20% 211 300.0 0.600 1.0 0.922 117 0.4%
10% 211 300.0 0.545 1.0 0.907 104 0.5%
Active Idle 211 300.0 0.359 1.0 0.821 62.2 0.7%
Power details for pwr1
