Hitachi, Ltd. BS2000 Server Blade E57A2 | SPECpower_ssj2008 = 1,586 overall ssj_ops/watt | ||||
Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Multi Node |
Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Oct 19, 2011 |
Hardware Availability: | Jun-2011 | Software Availability: | Feb-2011 | Publication: | Nov 9, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

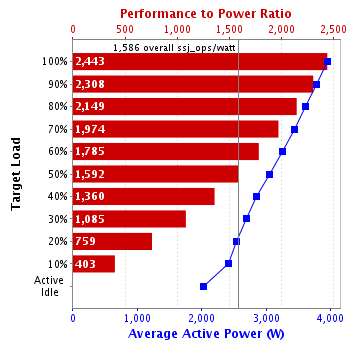

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.5% | 9,644,336 | 3,948 | 2,443 |
90% | 90.1% | 8,728,420 | 3,782 | 2,308 |
80% | 80.0% | 7,752,583 | 3,607 | 2,149 |
70% | 70.0% | 6,784,754 | 3,437 | 1,974 |
60% | 59.9% | 5,808,991 | 3,254 | 1,785 |
50% | 50.0% | 4,846,917 | 3,044 | 1,592 |
40% | 40.0% | 3,872,457 | 2,847 | 1,360 |
30% | 30.1% | 2,913,882 | 2,687 | 1,085 |
20% | 19.9% | 1,932,432 | 2,545 | 759 |
10% | 10.0% | 971,374 | 2,412 | 403 |
Active Idle | 0 | 2,024 | 0 | |
∑ssj_ops / ∑power = | 1,586 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
8 | 16 | 160 | 320 | 256 | 8 | 80 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 8 |
Comment: | None |
Hardware per Node | |
---|---|
Hardware Vendor: | Hitachi, Ltd. |
Model: | BS2000 Server Blade E57A2 |
Form Factor: | Blade |
CPU Name: | Intel Xeon processor E7-8870 |
CPU Characteristics: | Ten Core, 2.40GHz, 30MB L3 Cache |
CPU Frequency (MHz): | 2400 |
CPU(s) Enabled: | 20 cores, 2 chips, 10 cores/chip |
Hardware Threads: | 40 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 8 x 4 GB |
Memory Details: | 32GB(DDR3 Registered DIMM 4GB x 8) 1067MHz |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | N/A |
Disk Drive: | 1 x 33 GB LUN in RAID1 Raid Group consisting of 2 x 300 GB 15K RPM SAS |
Disk Controller: | None |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82576EB Gigabit Network Connection (onboard) |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | Hitachi 8Gb 2-port FC adapter in PCIe Expansion Slot |
Software per Node | |
---|---|
Power Management: | Enabled (Power saver) |
Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000] |
JVM Instances: | 10 |
JVM Initial Heap (MB): | 1875 |
JVM Maximum Heap (MB): | 1875 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 08-17 |
Management Firmware Version: | 04-60 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
Hardware | |
---|---|
Hardware Vendor: | Hitachi, Ltd. |
Model: | HA8000/130AE (Xeon5160) |
CPU Description: | Intel Xeon 5160 |
Memory amount (GB): | 4 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server2003 R2 Enterprise x64 Edition SP1 |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_25-b06) |
CCS Version: | 1.2.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91K717967 |
Connectivity: | RS-232C |
Input Connection: | Default |
Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Tchnology) |
Accredited by: | Yokogawa Meters & Instruments Corporation |
Calibration Label: | S2011-06-52513 |
Date of Calibration: | 27-Jun-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | Connected to BS2000 Chassis |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91L816380 |
Connectivity: | RS-232C |
Input Connection: | Default |
Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Tchnology) |
Accredited by: | Yokogawa Meters & Instruments Corporation |
Calibration Label: | B113590 |
Date of Calibration: | 08-Aug-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | Connected to AMS2300 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.30.02.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 3,948 | 21.6 |
90% | 3,782 | 21.6 |
80% | 3,607 | 21.6 |
70% | 3,437 | 21.6 |
60% | 3,254 | 21.6 |
50% | 3,044 | 21.6 |
40% | 2,847 | 21.6 |
30% | 2,687 | 21.6 |
20% | 2,545 | 21.6 |
10% | 2,412 | 21.6 |
Active Idle | 2,024 | 21.6 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
200V / 50 Hz / 1 phase / 2 wires | 21.6 | 132 |

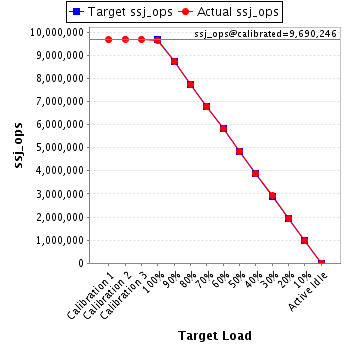

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 9,668,019 | ||
Calibration 2 | 9,695,365 | ||
Calibration 3 | 9,685,127 | ||
ssj_ops@calibrated=9,690,246 | |||
100% | 99.5% | 9,690,246 | 9,644,336 |
90% | 90.1% | 8,721,221 | 8,728,420 |
80% | 80.0% | 7,752,197 | 7,752,583 |
70% | 70.0% | 6,783,172 | 6,784,754 |
60% | 59.9% | 5,814,148 | 5,808,991 |
50% | 50.0% | 4,845,123 | 4,846,917 |
40% | 40.0% | 3,876,098 | 3,872,457 |
30% | 30.1% | 2,907,074 | 2,913,882 |
20% | 19.9% | 1,938,049 | 1,932,432 |
10% | 10.0% | 969,025 | 971,374 |
Active Idle | 0 | 0 |
