SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Supermicro Computer Inc. 1022G-NTF | SPECpower_ssj2008 = 2,805 overall ssj_ops/watt | ||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX, USA | Test Date: | Sep 13, 2011 |
| Hardware Availability: | Nov-2011 | Software Availability: | Mar-2011 | Publication: | Nov 16, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

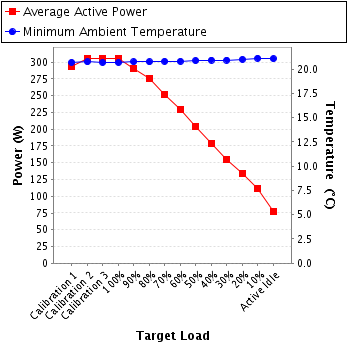

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 294 | 20.7 |
| Calibration 2 | 306 | 20.8 |
| Calibration 3 | 306 | 20.7 |
| 100% | 306 | 20.7 |
| 90% | 291 | 20.8 |
| 80% | 276 | 20.8 |
| 70% | 252 | 20.8 |
| 60% | 229 | 20.8 |
| 50% | 203 | 20.9 |
| 40% | 178 | 20.9 |
| 30% | 155 | 20.9 |
| 20% | 134 | 21.0 |
| 10% | 112 | 21.1 |
| Active Idle | 77.0 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K308578 |
| Connectivity: | USB-to-Serial |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Yokogawa Corporation of America |
| Calibration Label: | 10-1827 |
| Date of Calibration: | 28-Sep-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

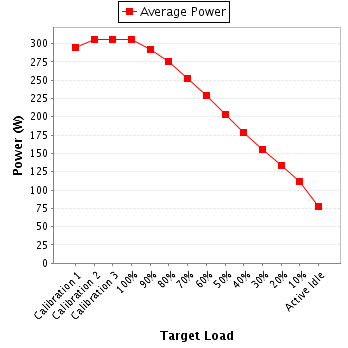

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 1.44 | 2.0 | 0.969 | 294 | 0.4% |
| Calibration 2 | 211 | 300.0 | 1.49 | 2.0 | 0.972 | 306 | 0.3% |
| Calibration 3 | 211 | 300.0 | 1.49 | 2.0 | 0.973 | 306 | 0.3% |
| 100% | 211 | 300.0 | 1.49 | 2.0 | 0.973 | 306 | 0.3% |
| 90% | 211 | 300.0 | 1.42 | 2.0 | 0.972 | 291 | 0.4% |
| 80% | 211 | 300.0 | 1.35 | 2.0 | 0.971 | 276 | 0.4% |
| 70% | 211 | 300.0 | 1.25 | 2.0 | 0.962 | 252 | 0.4% |
| 60% | 211 | 300.0 | 1.13 | 2.0 | 0.959 | 229 | 0.4% |
| 50% | 211 | 300.0 | 1.01 | 2.0 | 0.954 | 203 | 0.5% |
| 40% | 211 | 300.0 | 0.890 | 2.0 | 0.948 | 178 | 0.5% |
| 30% | 211 | 300.0 | 0.782 | 2.0 | 0.941 | 155 | 0.6% |
| 20% | 211 | 300.0 | 0.679 | 2.0 | 0.932 | 134 | 0.6% |
| 10% | 211 | 300.0 | 0.576 | 2.0 | 0.922 | 112 | 0.7% |
| Active Idle | 211 | 300.0 | 0.412 | 2.0 | 0.884 | 77.0 | 1.0% |
