Dell Inc. PowerEdge M915 ssj_ops@100% = 142,721
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 29, 2011
Hardware Availability: Nov-2011 Software Availability: Feb-2011 Publication: Nov 16, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,710
Calibration 2     142,237
Calibration 3     142,531
ssj_ops@calibrated=142,384
100% 100.2% 142,384 142,721
90% 91.2% 128,145 129,907
80% 81.9% 113,907 116,675
70% 70.3% 99,669 100,030
60% 59.6% 85,430 84,887
50% 49.2% 71,192 69,991
40% 40.1% 56,954 57,162
30% 30.1% 42,715 42,835
20% 20.4% 28,477 29,000
10% 9.9% 14,238 14,059
Active Idle   0 0

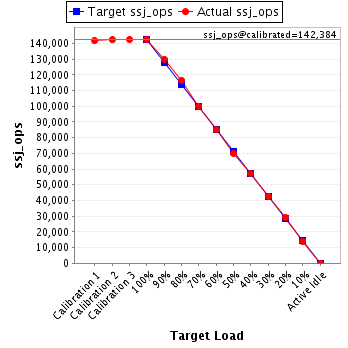

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M915
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M915
Form Factor: Blade
CPU Name: AMD Opteron 6276 (2.30 GHz)
CPU Characteristics: 16 Core, 2.30 GHz, 16 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1-A4, B1-B4, C1-C4, D1-D4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.3.0
Management Firmware Version: iDRAC 3.30 build 17
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • HT1 set in BIOS.
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
  • NIC 3 and 4 disabled in BIOS.
  • Core Boost Technology Disabled in BIOS.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 10,313,394 1,875
    Payment 10,313,397
    Order Status 1,031,340
    Delivery 1,031,340
    Stock Level 1,031,338
    Customer Report 10,313,394
    Calibration 2 New Order 10,348,403 1,875
    Payment 10,348,399
    Order Status 1,034,840
    Delivery 1,034,841
    Stock Level 1,034,839
    Customer Report 10,348,399
    Calibration 3 New Order 10,368,506 1,875
    Payment 10,368,500
    Order Status 1,036,849
    Delivery 1,036,852
    Stock Level 1,036,851
    Customer Report 10,368,498
    100% 100.2% New Order 10,380,931 1,875
    Payment 10,380,932
    Order Status 1,038,092
    Delivery 1,038,094
    Stock Level 1,038,092
    Customer Report 10,380,944
    90% 91.2% New Order 9,448,062 1,875
    Payment 9,448,056
    Order Status 944,805
    Delivery 944,807
    Stock Level 944,806
    Customer Report 9,448,058
    80% 81.9% New Order 8,487,839 1,875
    Payment 8,487,833
    Order Status 848,782
    Delivery 848,780
    Stock Level 848,785
    Customer Report 8,487,835
    70% 70.3% New Order 7,276,763 1,875
    Payment 7,276,761
    Order Status 727,676
    Delivery 727,676
    Stock Level 727,678
    Customer Report 7,276,761
    60% 59.6% New Order 6,174,533 1,875
    Payment 6,174,524
    Order Status 617,451
    Delivery 617,454
    Stock Level 617,452
    Customer Report 6,174,514
    50% 49.2% New Order 5,090,532 1,875
    Payment 5,090,524
    Order Status 509,053
    Delivery 509,056
    Stock Level 509,054
    Customer Report 5,090,530
    40% 40.1% New Order 4,157,445 1,875
    Payment 4,157,438
    Order Status 415,742
    Delivery 415,745
    Stock Level 415,745
    Customer Report 4,157,435
    30% 30.1% New Order 3,115,307 1,875
    Payment 3,115,319
    Order Status 311,532
    Delivery 311,530
    Stock Level 311,532
    Customer Report 3,115,313
    20% 20.4% New Order 2,110,696 1,875
    Payment 2,110,698
    Order Status 211,068
    Delivery 211,070
    Stock Level 211,069
    Customer Report 2,110,695
    10% 9.9% New Order 1,022,507 1,875
    Payment 1,022,505
    Order Status 102,253
    Delivery 102,249
    Stock Level 102,251
    Customer Report 1,022,509
    Active Idle New Order 0 1,875
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
