Dell Inc. PowerEdge M915 ssj_ops@100% = 140,906
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 29, 2011
Hardware Availability: Nov-2011 Software Availability: Feb-2011 Publication: Nov 16, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,614
Calibration 2     141,199
Calibration 3     140,757
ssj_ops@calibrated=140,978
100% 99.9% 140,978 140,906
90% 92.5% 126,880 130,348
80% 81.1% 112,782 114,322
70% 69.7% 98,685 98,222
60% 60.2% 84,587 84,842
50% 50.3% 70,489 70,905
40% 40.4% 56,391 56,992
30% 30.4% 42,293 42,884
20% 19.9% 28,196 28,113
10% 10.2% 14,098 14,353
Active Idle   0 0

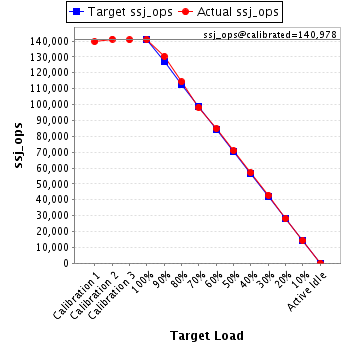

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M915
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M915
Form Factor: Blade
CPU Name: AMD Opteron 6276 (2.30 GHz)
CPU Characteristics: 16 Core, 2.30 GHz, 16 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1-A4, B1-B4, C1-C4, D1-D4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.3.0
Management Firmware Version: iDRAC 3.30 build 17
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • HT1 set in BIOS.
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
  • NIC 3 and 4 disabled in BIOS.
  • Core Boost Technology Disabled in BIOS.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Performance Details
    Target Load Actual Load Transaction Type Count Total Heap (MB)
    Calibration 1 New Order 10,154,616 1,875
    Payment 10,154,612
    Order Status 1,015,461
    Delivery 1,015,460
    Stock Level 1,015,463
    Customer Report 10,154,618
    Calibration 2 New Order 10,277,213 1,875
    Payment 10,277,211
    Order Status 1,027,722
    Delivery 1,027,723
    Stock Level 1,027,721
    Customer Report 10,277,213
    Calibration 3 New Order 10,245,104 1,875
    Payment 10,245,103
    Order Status 1,024,512
    Delivery 1,024,510
    Stock Level 1,024,509
    Customer Report 10,245,111
    100% 99.9% New Order 10,255,935 1,875
    Payment 10,255,940
    Order Status 1,025,593
    Delivery 1,025,595
    Stock Level 1,025,594
    Customer Report 10,255,936
    90% 92.5% New Order 9,492,404 1,875
    Payment 9,492,411
    Order Status 949,241
    Delivery 949,240
    Stock Level 949,242
    Customer Report 9,492,401
    80% 81.1% New Order 8,316,447 1,875
    Payment 8,316,445
    Order Status 831,645
    Delivery 831,643
    Stock Level 831,646
    Customer Report 8,316,450
    70% 69.7% New Order 7,146,386 1,875
    Payment 7,146,386
    Order Status 714,639
    Delivery 714,640
    Stock Level 714,639
    Customer Report 7,146,392
    60% 60.2% New Order 6,171,531 1,875
    Payment 6,171,523
    Order Status 617,152
    Delivery 617,152
    Stock Level 617,152
    Customer Report 6,171,523
    50% 50.3% New Order 5,158,038 1,875
    Payment 5,158,043
    Order Status 515,803
    Delivery 515,805
    Stock Level 515,806
    Customer Report 5,158,040
    40% 40.4% New Order 4,144,938 1,875
    Payment 4,144,937
    Order Status 414,494
    Delivery 414,494
    Stock Level 414,496
    Customer Report 4,144,941
    30% 30.4% New Order 3,119,870 1,875
    Payment 3,119,863
    Order Status 311,986
    Delivery 311,986
    Stock Level 311,990
    Customer Report 3,119,877
    20% 19.9% New Order 2,044,564 1,875
    Payment 2,044,567
    Order Status 204,455
    Delivery 204,457
    Stock Level 204,458
    Customer Report 2,044,568
    10% 10.2% New Order 1,043,834 1,875
    Payment 1,043,838
    Order Status 104,384
    Delivery 104,384
    Stock Level 104,385
    Customer Report 1,043,836
    Active Idle New Order 0 1,875
    Payment 0
    Order Status 0
    Delivery 0
    Stock Level 0
    Customer Report 0
