Dell Inc. PowerEdge M915 ssj_ops@100% = 2,242,533
ssj_ops@100% per JVM = 140,158
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 29, 2011
Hardware Availability: Nov-2011 Software Availability: Feb-2011 Publication: Nov 16, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,222,100
Calibration 2     2,248,676
Calibration 3     2,248,633
ssj_ops@calibrated=2,248,655
100% 99.7% 2,248,655 2,242,533
90% 91.1% 2,023,789 2,048,644
80% 80.1% 1,798,924 1,801,311
70% 70.0% 1,574,058 1,573,369
60% 60.2% 1,349,193 1,353,006
50% 49.9% 1,124,327 1,122,667
40% 39.8% 899,462 895,965
30% 29.9% 674,596 673,433
20% 20.0% 449,731 448,884
10% 10.0% 224,865 224,956
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M915
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M915
Form Factor: Blade
CPU Name: AMD Opteron 6276 (2.30 GHz)
CPU Characteristics: 16 Core, 2.30 GHz, 16 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1-A4, B1-B4, C1-C4, D1-D4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.3.0
Management Firmware Version: iDRAC 3.30 build 17
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • HT1 set in BIOS.
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
  • NIC 3 and 4 disabled in BIOS.
  • Core Boost Technology Disabled in BIOS.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M915-08.001 144,672
    M915-08.002 141,531
    M915-08.003 141,701
    M915-08.004 140,880
    M915-08.005 139,202
    M915-08.006 140,233
    M915-08.007 139,703
    M915-08.008 139,693
    M915-08.009 140,442
    M915-08.010 138,652
    M915-08.011 139,023
    M915-08.012 139,644
    M915-08.013 139,578
    M915-08.014 138,429
    M915-08.015 137,866
    M915-08.016 141,284
    ssj_ops@100% 2,242,533
    ssj_ops@100% per JVM 140,158

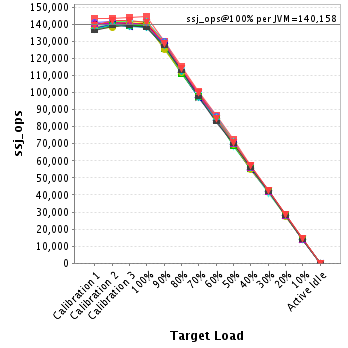

    Graph of per-instance results
    JVM 'M915-08.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     143,246
    Calibration 2     143,575
    Calibration 3     143,979
    ssj_ops@calibrated=143,777
    100% 100.6% 143,777 144,672
    90% 90.6% 129,400 130,192
    80% 80.0% 115,022 115,006
    70% 70.1% 100,644 100,744
    60% 60.4% 86,266 86,821
    50% 50.6% 71,889 72,728
    40% 39.8% 57,511 57,176
    30% 29.8% 43,133 42,860
    20% 20.0% 28,755 28,691
    10% 10.1% 14,378 14,525
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     140,798
    Calibration 2     141,647
    Calibration 3     141,575
    ssj_ops@calibrated=141,611
    100% 99.9% 141,611 141,531
    90% 91.8% 127,450 129,971
    80% 79.8% 113,289 113,075
    70% 70.2% 99,128 99,393
    60% 60.6% 84,967 85,842
    50% 50.2% 70,806 71,059
    40% 40.1% 56,645 56,774
    30% 30.2% 42,483 42,738
    20% 19.8% 28,322 28,107
    10% 9.8% 14,161 13,933
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     139,338
    Calibration 2     141,517
    Calibration 3     141,939
    ssj_ops@calibrated=141,728
    100% 100.0% 141,728 141,701
    90% 91.3% 127,555 129,329
    80% 79.2% 113,382 112,248
    70% 69.8% 99,209 98,963
    60% 60.3% 85,037 85,496
    50% 50.2% 70,864 71,143
    40% 39.6% 56,691 56,146
    30% 29.7% 42,518 42,074
    20% 19.9% 28,346 28,188
    10% 9.8% 14,173 13,841
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     139,249
    Calibration 2     141,247
    Calibration 3     140,915
    ssj_ops@calibrated=141,081
    100% 99.9% 141,081 140,880
    90% 91.2% 126,973 128,649
    80% 79.5% 112,865 112,115
    70% 70.3% 98,757 99,164
    60% 59.9% 84,649 84,486
    50% 50.0% 70,541 70,510
    40% 39.6% 56,433 55,859
    30% 29.2% 42,324 41,147
    20% 19.8% 28,216 27,979
    10% 9.9% 14,108 13,949
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     139,023
    Calibration 2     139,623
    Calibration 3     139,534
    ssj_ops@calibrated=139,579
    100% 99.7% 139,579 139,202
    90% 91.3% 125,621 127,425
    80% 80.3% 111,663 112,102
    70% 69.6% 97,705 97,211
    60% 60.3% 83,747 84,144
    50% 49.7% 69,789 69,403
    40% 39.7% 55,831 55,455
    30% 30.0% 41,874 41,888
    20% 19.9% 27,916 27,810
    10% 9.9% 13,958 13,839
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     138,980
    Calibration 2     140,075
    Calibration 3     140,554
    ssj_ops@calibrated=140,314
    100% 99.9% 140,314 140,233
    90% 91.1% 126,283 127,876
    80% 80.4% 112,251 112,770
    70% 70.0% 98,220 98,220
    60% 60.6% 84,188 85,002
    50% 48.7% 70,157 68,353
    40% 39.4% 56,126 55,316
    30% 29.3% 42,094 41,068
    20% 20.1% 28,063 28,200
    10% 10.1% 14,031 14,174
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     138,997
    Calibration 2     141,005
    Calibration 3     140,163
    ssj_ops@calibrated=140,584
    100% 99.4% 140,584 139,703
    90% 90.9% 126,526 127,732
    80% 79.5% 112,467 111,818
    70% 69.3% 98,409 97,452
    60% 60.1% 84,351 84,467
    50% 49.3% 70,292 69,239
    40% 40.3% 56,234 56,694
    30% 29.8% 42,175 41,913
    20% 20.0% 28,117 28,141
    10% 10.1% 14,058 14,208
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,960
    Calibration 2     139,845
    Calibration 3     140,283
    ssj_ops@calibrated=140,064
    100% 99.7% 140,064 139,693
    90% 91.8% 126,057 128,560
    80% 80.7% 112,051 112,982
    70% 69.4% 98,045 97,150
    60% 60.5% 84,038 84,692
    50% 50.4% 70,032 70,650
    40% 39.7% 56,026 55,631
    30% 30.4% 42,019 42,635
    20% 20.0% 28,013 27,965
    10% 10.1% 14,006 14,186
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     139,632
    Calibration 2     141,186
    Calibration 3     140,573
    ssj_ops@calibrated=140,880
    100% 99.7% 140,880 140,442
    90% 91.0% 126,792 128,191
    80% 79.4% 112,704 111,854
    70% 70.7% 98,616 99,547
    60% 59.8% 84,528 84,246
    50% 49.7% 70,440 69,990
    40% 39.8% 56,352 56,022
    30% 30.1% 42,264 42,441
    20% 20.1% 28,176 28,281
    10% 10.2% 14,088 14,314
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,317
    Calibration 2     140,167
    Calibration 3     138,538
    ssj_ops@calibrated=139,352
    100% 99.5% 139,352 138,652
    90% 91.4% 125,417 127,378
    80% 80.4% 111,482 112,058
    70% 69.7% 97,547 97,131
    60% 59.9% 83,611 83,451
    50% 49.9% 69,676 69,595
    40% 39.6% 55,741 55,200
    30% 30.3% 41,806 42,277
    20% 19.9% 27,870 27,788
    10% 10.1% 13,935 14,032
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,991
    Calibration 2     139,514
    Calibration 3     139,170
    ssj_ops@calibrated=139,342
    100% 99.8% 139,342 139,023
    90% 90.2% 125,408 125,732
    80% 80.0% 111,474 111,435
    70% 70.0% 97,539 97,514
    60% 60.4% 83,605 84,139
    50% 49.5% 69,671 69,036
    40% 39.8% 55,737 55,449
    30% 30.1% 41,803 41,985
    20% 20.0% 27,868 27,817
    10% 10.0% 13,934 13,982
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,409
    Calibration 2     138,042
    Calibration 3     140,329
    ssj_ops@calibrated=139,186
    100% 100.3% 139,186 139,644
    90% 90.1% 125,267 125,350
    80% 80.2% 111,348 111,592
    70% 70.1% 97,430 97,512
    60% 60.4% 83,511 84,135
    50% 50.1% 69,593 69,741
    40% 39.6% 55,674 55,079
    30% 30.2% 41,756 41,989
    20% 19.8% 27,837 27,508
    10% 10.0% 13,919 13,870
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     140,540
    Calibration 2     140,446
    Calibration 3     140,879
    ssj_ops@calibrated=140,663
    100% 99.2% 140,663 139,578
    90% 91.5% 126,596 128,757
    80% 80.5% 112,530 113,278
    70% 70.4% 98,464 99,003
    60% 60.0% 84,398 84,418
    50% 49.9% 70,331 70,195
    40% 39.7% 56,265 55,826
    30% 29.7% 42,199 41,819
    20% 20.1% 28,133 28,251
    10% 9.8% 14,066 13,850
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,989
    Calibration 2     139,716
    Calibration 3     138,903
    ssj_ops@calibrated=139,309
    100% 99.4% 139,309 138,429
    90% 91.6% 125,378 127,662
    80% 80.5% 111,447 112,107
    70% 69.7% 97,516 97,112
    60% 60.3% 83,586 84,030
    50% 50.4% 69,655 70,174
    40% 40.4% 55,724 56,316
    30% 30.3% 41,793 42,250
    20% 20.0% 27,862 27,866
    10% 10.1% 13,931 14,026
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,233
    Calibration 2     138,965
    Calibration 3     139,100
    ssj_ops@calibrated=139,032
    100% 99.2% 139,032 137,866
    90% 91.4% 125,129 127,028
    80% 81.0% 111,226 112,680
    70% 70.1% 97,323 97,471
    60% 59.5% 83,419 82,737
    50% 50.4% 69,516 70,081
    40% 40.2% 55,613 55,959
    30% 30.0% 41,710 41,775
    20% 20.1% 27,806 27,902
    10% 9.9% 13,903 13,749
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-08.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     139,399
    Calibration 2     142,106
    Calibration 3     142,199
    ssj_ops@calibrated=142,152
    100% 99.4% 142,152 141,284
    90% 90.6% 127,937 128,813
    80% 80.3% 113,722 114,191
    70% 70.2% 99,507 99,783
    60% 59.7% 85,291 84,898
    50% 49.8% 71,076 70,770
    40% 40.1% 56,861 57,063
    30% 30.0% 42,646 42,575
    20% 20.0% 28,430 28,387
    10% 10.2% 14,215 14,476
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
