NEC Corporation Express5800/R120b-2 SPECpower_ssj2008 = 2,772 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Nov 16, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Dec 14, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 248 20.1
Calibration 2 250 20.1
Calibration 3 251 20.2
100% 250 20.2
90% 232 20.2
80% 216 20.2
70% 196 20.2
60% 181 20.2
50% 166 20.3
40% 153 20.3
30% 141 20.2
20% 130 20.1
10% 117 20.1
Active Idle 80.1 20.2

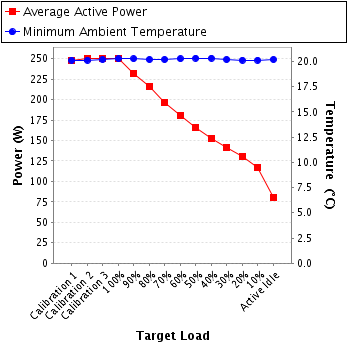

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H928025
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: JQA (Japan Quality Assurance Organization)
Calibration Label: 150-12299
Date of Calibration: 9-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 101 150.0 2.49 5.0 0.988 248 0.4%
Calibration 2 101 150.0 2.51 5.0 0.988 250 0.4%
Calibration 3 101 150.0 2.51 5.0 0.988 251 0.4%
100% 101 150.0 2.51 5.0 0.988 250 0.4%
90% 101 150.0 2.33 5.0 0.986 232 0.5%
80% 101 150.0 2.17 5.0 0.984 216 0.5%
70% 101 150.0 1.97 5.0 0.982 196 0.5%
60% 101 150.0 1.82 2.0 0.982 181 0.3%
50% 101 150.0 1.67 2.0 0.982 166 0.3%
40% 102 150.0 1.54 2.0 0.981 153 0.3%
30% 102 150.0 1.42 2.0 0.981 141 0.4%
20% 101 150.0 1.31 2.0 0.982 130 0.4%
10% 101 150.0 1.18 2.0 0.973 117 0.4%
Active Idle 102 150.0 0.798 2.0 0.988 80.1 0.5%

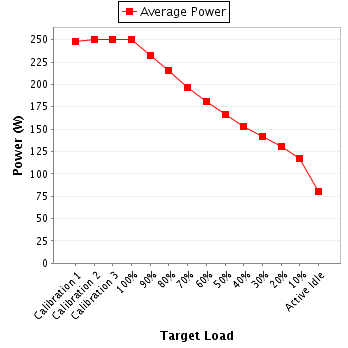

Power details for pwr1
