NEC Corporation Express5800/R120b-1 SPECpower_ssj2008 = 2,707 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Nov 17, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Dec 14, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 257 20.2
Calibration 2 260 20.2
Calibration 3 260 20.2
100% 259 20.1
90% 237 20.1
80% 219 20.2
70% 200 20.2
60% 182 20.2
50% 168 20.1
40% 155 20.1
30% 144 20.1
20% 133 20.2
10% 122 20.2
Active Idle 82.9 20.2

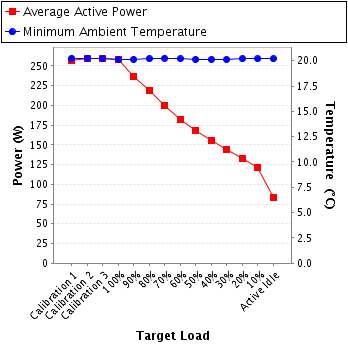

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H928025
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: JQA (Japan Quality Assurance Organization)
Calibration Label: 150-12299
Date of Calibration: 9-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 100 150.0 2.60 5.0 0.986 257 0.4%
Calibration 2 100 150.0 2.63 5.0 0.986 260 0.4%
Calibration 3 100 150.0 2.63 5.0 0.986 260 0.4%
100% 100 150.0 2.62 5.0 0.986 259 0.4%
90% 100 150.0 2.40 5.0 0.983 237 0.5%
80% 101 150.0 2.22 5.0 0.981 219 0.5%
70% 101 150.0 2.02 5.0 0.980 200 0.5%
60% 101 150.0 1.85 5.0 0.980 182 0.6%
50% 101 150.0 1.70 2.0 0.979 168 0.3%
40% 101 150.0 1.57 2.0 0.979 155 0.3%
30% 101 150.0 1.45 2.0 0.980 144 0.3%
20% 101 150.0 1.34 2.0 0.980 133 0.4%
10% 101 150.0 1.24 2.0 0.970 122 0.4%
Active Idle 102 150.0 0.826 2.0 0.988 82.9 0.5%
Power details for pwr1
