NEC Corporation Express5800/E120b-1 | SPECpower_ssj2008 = 2,800 overall ssj_ops/watt | ||||
Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Dec 7, 2011 |
Hardware Availability: | Oct-2011 | Software Availability: | Aug-2011 | Publication: | Dec 28, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

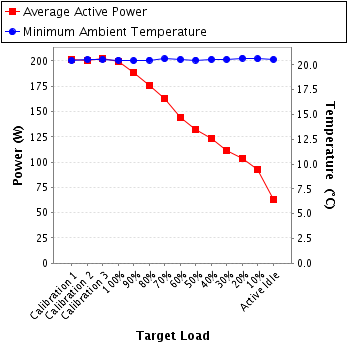

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 201 | 20.4 |
Calibration 2 | 200 | 20.6 |
Calibration 3 | 203 | 20.6 |
100% | 200 | 20.5 |
90% | 189 | 20.4 |
80% | 176 | 20.5 |
70% | 163 | 20.6 |
60% | 145 | 20.6 |
50% | 132 | 20.5 |
40% | 123 | 20.6 |
30% | 112 | 20.6 |
20% | 103 | 20.7 |
10% | 92.8 | 20.6 |
Active Idle | 63.1 | 20.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H928025 |
Connectivity: | RS-232C |
Input Connection: | Default |
Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
Accredited by: | JQA (Japan Quality Assurance Organization) |
Calibration Label: | 150-12299 |
Date of Calibration: | 9-Aug-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.30.2.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |

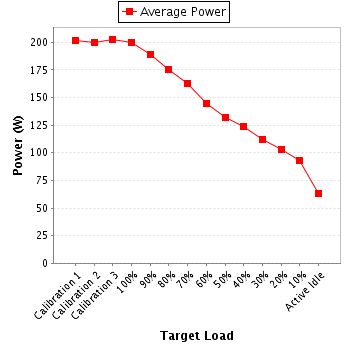

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 203 | 300.0 | 1.04 | 2.0 | 0.951 | 201 | 0.5% |
Calibration 2 | 203 | 300.0 | 1.04 | 2.0 | 0.950 | 200 | 0.5% |
Calibration 3 | 202 | 300.0 | 1.05 | 2.0 | 0.952 | 203 | 0.5% |
100% | 202 | 300.0 | 1.04 | 2.0 | 0.951 | 200 | 0.5% |
90% | 202 | 300.0 | 0.987 | 2.0 | 0.946 | 189 | 0.5% |
80% | 202 | 300.0 | 0.926 | 2.0 | 0.940 | 176 | 0.5% |
70% | 203 | 300.0 | 0.860 | 1.0 | 0.931 | 163 | 0.4% |
60% | 203 | 300.0 | 0.775 | 1.0 | 0.919 | 145 | 0.4% |
50% | 204 | 300.0 | 0.714 | 1.0 | 0.907 | 132 | 0.4% |
40% | 203 | 300.0 | 0.675 | 1.0 | 0.900 | 123 | 0.4% |
30% | 203 | 300.0 | 0.621 | 1.0 | 0.886 | 112 | 0.5% |
20% | 203 | 300.0 | 0.581 | 1.0 | 0.873 | 103 | 0.5% |
10% | 203 | 300.0 | 0.538 | 1.0 | 0.849 | 92.8 | 0.5% |
Active Idle | 203 | 300.0 | 0.401 | 1.0 | 0.773 | 63.1 | 0.7% |
