NEC Corporation Express5800/E120b-1 ssj_ops@100% = 756,242
ssj_ops@100% per JVM = 63,020
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Dec 7, 2011
Hardware Availability: Oct-2011 Software Availability: Aug-2011 Publication: Dec 28, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     752,074
Calibration 2     763,288
Calibration 3     762,229
ssj_ops@calibrated=762,758
100% 99.1% 762,758 756,242
90% 90.1% 686,483 686,905
80% 80.2% 610,207 611,739
70% 70.2% 533,931 535,581
60% 59.9% 457,655 457,268
50% 50.1% 381,379 382,236
40% 40.0% 305,103 305,171
30% 30.0% 228,828 228,698
20% 19.9% 152,552 151,478
10% 10.1% 76,276 76,875
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/E120b-1 (Intel Xeon E5645, 2.40 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/E120b-1
Form Factor: 1U
CPU Name: Intel Xeon E5645
CPU Characteristics: 6 core, 2.40 GHz (Intel Turbo Boost Technology up to 2.67 GHz), 12 MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots CPU1_DIMM1, CPU1_DIMM2, CPU2_DIMM1 and CPU2_DIMM2 populated
Power Supply Quantity and Rating (W): 1 x 360
Power Supply Details: Delta TDPS-360AB E
Disk Drive: 1 x 500GB 7200rpm HDD 3.5inch SATA, NEC P/N:N8150-280
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82574L Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_27
JVM Command-line Options: -Xms875m -Xmx875m -Xmn725m -XX:+AggressiveOpts -XX:+UseCompressedStrings -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances: 12
JVM Initial Heap (MB): 875
JVM Maximum Heap (MB): 875
JVM Address Bits: 64
Boot Firmware Version: 1.0.1012
Management Firmware Version: 01.13
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
E120b-1.001 62,649
E120b-1.002 62,500
E120b-1.003 62,274
E120b-1.004 62,329
E120b-1.005 63,553
E120b-1.006 64,091
E120b-1.007 62,152
E120b-1.008 62,906
E120b-1.009 62,374
E120b-1.010 63,225
E120b-1.011 63,653
E120b-1.012 64,535
ssj_ops@100% 756,242
ssj_ops@100% per JVM 63,020

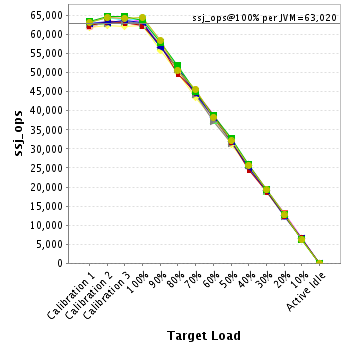

Graph of per-instance results

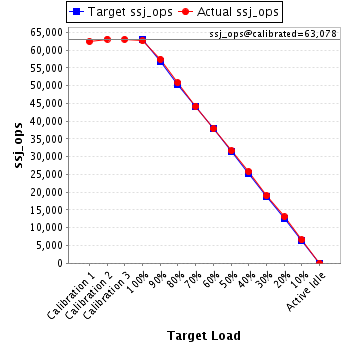

JVM 'E120b-1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,453
Calibration 2     63,102
Calibration 3     63,055
ssj_ops@calibrated=63,078
100% 99.3% 63,078 62,649
90% 91.1% 56,771 57,444
80% 80.6% 50,463 50,826
70% 70.2% 44,155 44,256
60% 60.0% 37,847 37,865
50% 50.2% 31,539 31,694
40% 40.9% 25,231 25,778
30% 30.1% 18,924 19,009
20% 20.8% 12,616 13,092
10% 10.5% 6,308 6,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

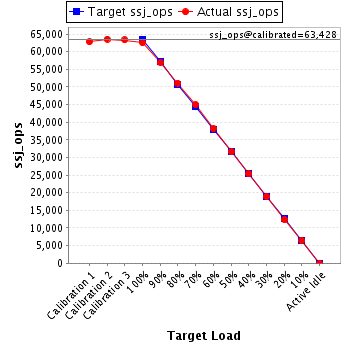

JVM 'E120b-1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,774
Calibration 2     63,546
Calibration 3     63,310
ssj_ops@calibrated=63,428
100% 98.5% 63,428 62,500
90% 89.7% 57,085 56,902
80% 80.5% 50,742 51,069
70% 70.9% 44,400 44,971
60% 60.2% 38,057 38,192
50% 49.8% 31,714 31,613
40% 40.0% 25,371 25,343
30% 29.8% 19,028 18,927
20% 19.4% 12,686 12,324
10% 10.1% 6,343 6,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'E120b-1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,503
Calibration 2     62,949
Calibration 3     63,268
ssj_ops@calibrated=63,108
100% 98.7% 63,108 62,274
90% 89.9% 56,798 56,758
80% 81.3% 50,487 51,329
70% 70.0% 44,176 44,145
60% 59.3% 37,865 37,410
50% 50.5% 31,554 31,858
40% 41.1% 25,243 25,934
30% 29.7% 18,933 18,756
20% 19.9% 12,622 12,583
10% 10.3% 6,311 6,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'E120b-1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     61,926
Calibration 2     62,323
Calibration 3     62,213
ssj_ops@calibrated=62,268
100% 100.1% 62,268 62,329
90% 89.4% 56,041 55,688
80% 80.4% 49,814 50,078
70% 69.9% 43,588 43,516
60% 60.6% 37,361 37,717
50% 49.9% 31,134 31,045
40% 40.3% 24,907 25,070
30% 30.1% 18,680 18,716
20% 20.1% 12,454 12,503
10% 9.9% 6,227 6,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

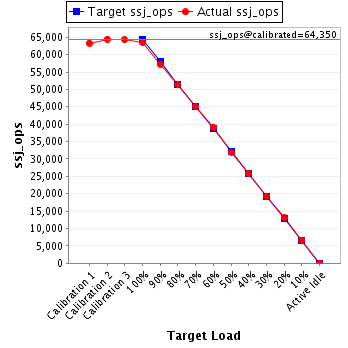

JVM 'E120b-1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,323
Calibration 2     64,443
Calibration 3     64,258
ssj_ops@calibrated=64,350
100% 98.8% 64,350 63,553
90% 88.9% 57,915 57,226
80% 79.8% 51,480 51,349
70% 70.0% 45,045 45,073
60% 60.8% 38,610 39,139
50% 49.6% 32,175 31,900
40% 40.1% 25,740 25,803
30% 29.9% 19,305 19,249
20% 20.2% 12,870 13,020
10% 10.3% 6,435 6,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'E120b-1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,272
Calibration 2     64,373
Calibration 3     63,623
ssj_ops@calibrated=63,998
100% 100.1% 63,998 64,091
90% 90.3% 57,598 57,811
80% 80.6% 51,198 51,574
70% 70.4% 44,799 45,030
60% 59.2% 38,399 37,912
50% 50.0% 31,999 31,968
40% 38.7% 25,599 24,778
30% 30.3% 19,199 19,403
20% 19.8% 12,800 12,698
10% 9.8% 6,400 6,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

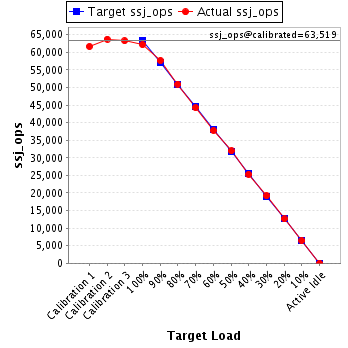

JVM 'E120b-1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     61,672
Calibration 2     63,758
Calibration 3     63,279
ssj_ops@calibrated=63,519
100% 97.8% 63,519 62,152
90% 90.8% 57,167 57,673
80% 80.2% 50,815 50,961
70% 69.7% 44,463 44,252
60% 59.5% 38,111 37,794
50% 50.3% 31,759 31,959
40% 39.9% 25,407 25,331
30% 30.2% 19,056 19,167
20% 19.8% 12,704 12,594
10% 10.2% 6,352 6,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'E120b-1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,526
Calibration 2     62,972
Calibration 3     63,394
ssj_ops@calibrated=63,183
100% 99.6% 63,183 62,906
90% 90.4% 56,865 57,093
80% 80.4% 50,547 50,807
70% 69.9% 44,228 44,146
60% 59.0% 37,910 37,254
50% 49.7% 31,592 31,406
40% 40.7% 25,273 25,721
30% 30.1% 18,955 19,034
20% 19.3% 12,637 12,208
10% 10.2% 6,318 6,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'E120b-1.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,267
Calibration 2     63,412
Calibration 3     63,207
ssj_ops@calibrated=63,309
100% 98.5% 63,309 62,374
90% 90.3% 56,978 57,155
80% 78.6% 50,647 49,770
70% 70.8% 44,317 44,832
60% 61.1% 37,986 38,651
50% 50.6% 31,655 32,014
40% 39.0% 25,324 24,678
30% 29.9% 18,993 18,936
20% 19.8% 12,662 12,521
10% 10.1% 6,331 6,387
Active Idle   0 0

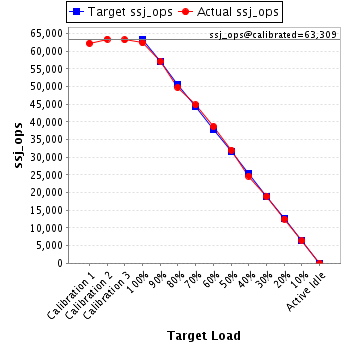

Graph of results
See the JVM Instance Performance Report for additional details.

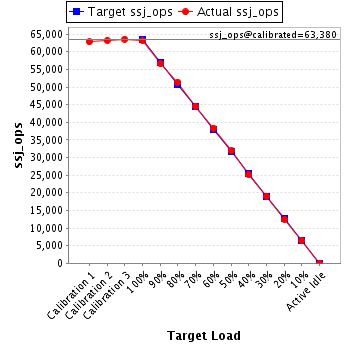

JVM 'E120b-1.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,802
Calibration 2     63,190
Calibration 3     63,570
ssj_ops@calibrated=63,380
100% 99.8% 63,380 63,225
90% 89.4% 57,042 56,640
80% 81.1% 50,704 51,374
70% 70.3% 44,366 44,533
60% 60.5% 38,028 38,331
50% 50.3% 31,690 31,882
40% 39.7% 25,352 25,180
30% 30.0% 19,014 19,007
20% 19.6% 12,676 12,453
10% 10.1% 6,338 6,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

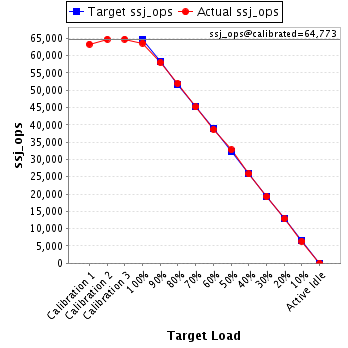

JVM 'E120b-1.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,351
Calibration 2     64,767
Calibration 3     64,778
ssj_ops@calibrated=64,773
100% 98.3% 64,773 63,653
90% 89.6% 58,296 58,042
80% 80.2% 51,818 51,972
70% 69.8% 45,341 45,186
60% 59.8% 38,864 38,707
50% 50.6% 32,386 32,804
40% 39.8% 25,909 25,807
30% 29.8% 19,432 19,274
20% 19.8% 12,955 12,816
10% 9.8% 6,477 6,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

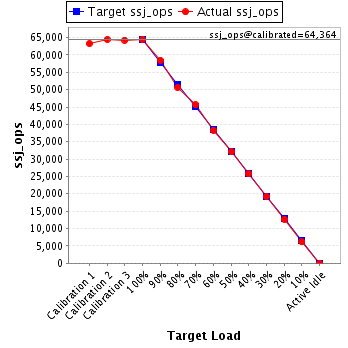

JVM 'E120b-1.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,204
Calibration 2     64,454
Calibration 3     64,273
ssj_ops@calibrated=64,364
100% 100.3% 64,364 64,535
90% 90.8% 57,927 58,472
80% 78.7% 51,491 50,629
70% 70.9% 45,055 45,641
60% 59.5% 38,618 38,298
50% 49.9% 32,182 32,094
40% 40.0% 25,745 25,751
30% 29.9% 19,309 19,221
20% 19.7% 12,873 12,666
10% 9.5% 6,436 6,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
