Acer Incorporated Acer AR585 F1 ssj_ops@100% = 1,898,162
ssj_ops@100% per JVM = 118,635
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 15, 2011
Hardware Availability: Jan-2012 Software Availability: Dec-2010 Publication: Mar 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,882,124
Calibration 2     1,901,866
Calibration 3     1,905,308
ssj_ops@calibrated=1,903,587
100% 99.7% 1,903,587 1,898,162
90% 89.8% 1,713,229 1,709,515
80% 80.1% 1,522,870 1,524,023
70% 70.0% 1,332,511 1,332,924
60% 60.0% 1,142,152 1,142,736
50% 49.8% 951,794 947,473
40% 39.9% 761,435 758,675
30% 30.0% 571,076 571,078
20% 19.8% 380,717 377,835
10% 10.0% 190,359 190,219
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6238
CPU Characteristics: 12-Core, 2.60 GHz, 16 MB L3 cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 48 cores, 4 chips, 12 cores/chip
Hardware Threads: 48 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 384 KB I + 192 KB D on chip per chip
Secondary Cache: 12 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shard / 6 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 500GB SATA2 7200 RPM 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [0x7, 0x38, 0x1C0, 0xE00, 0x7000, 0x38000, 0x1C0000, 0xE00000, 0x7000000, 0x38000000, 0x1C0000000, 0xE00000000, 0x7000000000, 0x38000000000, 0x1C0000000000, 0xE00000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P03T01
Management Firmware Version: 1.40
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-JGE2L637AC6.001 116,722
WIN-JGE2L637AC6.002 119,913
WIN-JGE2L637AC6.003 118,009
WIN-JGE2L637AC6.004 120,316
WIN-JGE2L637AC6.005 116,874
WIN-JGE2L637AC6.006 120,397
WIN-JGE2L637AC6.007 119,458
WIN-JGE2L637AC6.008 120,647
WIN-JGE2L637AC6.009 118,375
WIN-JGE2L637AC6.010 119,859
WIN-JGE2L637AC6.011 119,455
WIN-JGE2L637AC6.012 119,548
WIN-JGE2L637AC6.013 115,681
WIN-JGE2L637AC6.014 118,620
WIN-JGE2L637AC6.015 115,199
WIN-JGE2L637AC6.016 119,089
ssj_ops@100% 1,898,162
ssj_ops@100% per JVM 118,635

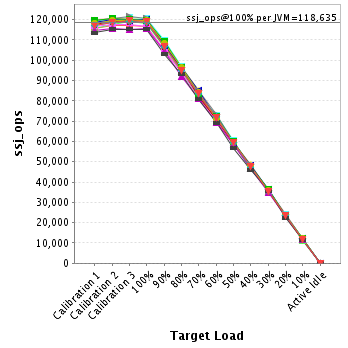

Graph of per-instance results
JVM 'WIN-JGE2L637AC6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,778
Calibration 2     117,269
Calibration 3     117,357
ssj_ops@calibrated=117,313
100% 99.5% 117,313 116,722
90% 89.3% 105,582 104,782
80% 80.4% 93,850 94,275
70% 70.9% 82,119 83,143
60% 60.0% 70,388 70,337
50% 49.8% 58,656 58,447
40% 40.2% 46,925 47,165
30% 30.4% 35,194 35,664
20% 20.1% 23,463 23,586
10% 9.9% 11,731 11,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,727
Calibration 2     119,717
Calibration 3     120,066
ssj_ops@calibrated=119,891
100% 100.0% 119,891 119,913
90% 90.6% 107,902 108,599
80% 79.4% 95,913 95,156
70% 70.2% 83,924 84,165
60% 59.8% 71,935 71,734
50% 49.8% 59,946 59,749
40% 39.1% 47,957 46,820
30% 29.7% 35,967 35,656
20% 20.2% 23,978 24,263
10% 10.3% 11,989 12,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,471
Calibration 2     117,570
Calibration 3     118,979
ssj_ops@calibrated=118,274
100% 99.8% 118,274 118,009
90% 90.0% 106,447 106,475
80% 79.8% 94,619 94,341
70% 68.9% 82,792 81,453
60% 60.1% 70,965 71,103
50% 50.2% 59,137 59,344
40% 39.7% 47,310 46,927
30% 29.9% 35,482 35,375
20% 20.0% 23,655 23,691
10% 9.6% 11,827 11,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,717
Calibration 2     120,058
Calibration 3     120,515
ssj_ops@calibrated=120,287
100% 100.0% 120,287 120,316
90% 89.3% 108,258 107,417
80% 80.5% 96,229 96,885
70% 70.9% 84,201 85,330
60% 59.4% 72,172 71,439
50% 49.4% 60,143 59,395
40% 40.3% 48,115 48,455
30% 29.7% 36,086 35,726
20% 19.9% 24,057 23,903
10% 10.1% 12,029 12,209
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,632
Calibration 2     117,412
Calibration 3     117,738
ssj_ops@calibrated=117,575
100% 99.4% 117,575 116,874
90% 89.1% 105,818 104,786
80% 80.0% 94,060 94,068
70% 69.8% 82,303 82,086
60% 60.0% 70,545 70,520
50% 49.9% 58,788 58,635
40% 40.7% 47,030 47,845
30% 29.9% 35,273 35,134
20% 19.9% 23,515 23,353
10% 10.0% 11,758 11,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,983
Calibration 2     120,711
Calibration 3     120,981
ssj_ops@calibrated=120,846
100% 99.6% 120,846 120,397
90% 90.7% 108,761 109,621
80% 80.3% 96,677 96,992
70% 69.4% 84,592 83,856
60% 60.2% 72,508 72,748
50% 49.9% 60,423 60,262
40% 39.1% 48,338 47,232
30% 30.0% 36,254 36,273
20% 20.0% 24,169 24,183
10% 10.0% 12,085 12,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,197
Calibration 2     120,629
Calibration 3     120,410
ssj_ops@calibrated=120,519
100% 99.1% 120,519 119,458
90% 89.3% 108,467 107,639
80% 79.6% 96,416 95,934
70% 69.7% 84,364 83,999
60% 60.6% 72,312 73,002
50% 49.8% 60,260 59,991
40% 39.0% 48,208 47,008
30% 29.8% 36,156 35,948
20% 20.1% 24,104 24,284
10% 9.8% 12,052 11,803
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,834
Calibration 2     120,763
Calibration 3     121,646
ssj_ops@calibrated=121,204
100% 99.5% 121,204 120,647
90% 89.0% 109,084 107,856
80% 79.7% 96,964 96,580
70% 70.3% 84,843 85,177
60% 60.5% 72,723 73,321
50% 49.1% 60,602 59,509
40% 40.1% 48,482 48,659
30% 29.7% 36,361 36,002
20% 19.7% 24,241 23,819
10% 9.9% 12,120 11,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,636
Calibration 2     119,266
Calibration 3     119,174
ssj_ops@calibrated=119,220
100% 99.3% 119,220 118,375
90% 89.7% 107,298 106,906
80% 80.4% 95,376 95,852
70% 69.1% 83,454 82,397
60% 59.5% 71,532 70,979
50% 49.6% 59,610 59,080
40% 40.1% 47,688 47,817
30% 29.8% 35,766 35,558
20% 19.8% 23,844 23,591
10% 9.8% 11,922 11,743
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,713
Calibration 2     120,192
Calibration 3     119,572
ssj_ops@calibrated=119,882
100% 100.0% 119,882 119,859
90% 89.3% 107,894 107,095
80% 80.3% 95,906 96,267
70% 70.9% 83,918 85,030
60% 59.6% 71,929 71,463
50% 49.8% 59,941 59,698
40% 40.0% 47,953 47,923
30% 30.4% 35,965 36,401
20% 19.7% 23,976 23,629
10% 10.0% 11,988 11,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,473
Calibration 2     120,365
Calibration 3     120,016
ssj_ops@calibrated=120,191
100% 99.4% 120,191 119,455
90% 90.8% 108,172 109,183
80% 80.1% 96,152 96,247
70% 69.3% 84,133 83,286
60% 60.0% 72,114 72,098
50% 50.0% 60,095 60,107
40% 39.6% 48,076 47,645
30% 30.1% 36,057 36,221
20% 19.8% 24,038 23,749
10% 10.1% 12,019 12,086
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,307
Calibration 2     119,787
Calibration 3     119,497
ssj_ops@calibrated=119,642
100% 99.9% 119,642 119,548
90% 90.6% 107,678 108,410
80% 80.5% 95,714 96,283
70% 70.5% 83,750 84,303
60% 59.6% 71,785 71,319
50% 49.8% 59,821 59,548
40% 39.8% 47,857 47,661
30% 30.0% 35,893 35,939
20% 19.5% 23,928 23,354
10% 10.3% 11,964 12,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

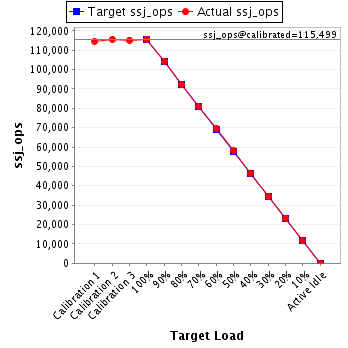

JVM 'WIN-JGE2L637AC6.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     114,649
Calibration 2     115,729
Calibration 3     115,270
ssj_ops@calibrated=115,499
100% 100.2% 115,499 115,681
90% 90.3% 103,949 104,346
80% 79.8% 92,400 92,124
70% 70.1% 80,850 80,952
60% 60.2% 69,300 69,537
50% 50.5% 57,750 58,295
40% 40.3% 46,200 46,494
30% 30.0% 34,650 34,696
20% 19.9% 23,100 22,960
10% 10.1% 11,550 11,718
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,265
Calibration 2     118,594
Calibration 3     119,261
ssj_ops@calibrated=118,927
100% 99.7% 118,927 118,620
90% 89.6% 107,035 106,547
80% 79.8% 95,142 94,887
70% 70.2% 83,249 83,476
60% 60.7% 71,356 72,163
50% 49.8% 59,464 59,282
40% 39.7% 47,571 47,252
30% 29.9% 35,678 35,588
20% 19.8% 23,785 23,519
10% 10.0% 11,893 11,901
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,505
Calibration 2     115,283
Calibration 3     115,212
ssj_ops@calibrated=115,247
100% 100.0% 115,247 115,199
90% 89.4% 103,723 103,056
80% 80.8% 92,198 93,121
70% 70.0% 80,673 80,707
60% 60.1% 69,148 69,250
50% 49.2% 57,624 56,755
40% 40.1% 46,099 46,177
30% 31.0% 34,574 35,747
20% 19.4% 23,049 22,315
10% 10.1% 11,525 11,619
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-JGE2L637AC6.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,238
Calibration 2     118,521
Calibration 3     119,615
ssj_ops@calibrated=119,068
100% 100.0% 119,068 119,089
90% 89.7% 107,161 106,795
80% 79.8% 95,254 95,007
70% 70.2% 83,347 83,565
60% 60.2% 71,441 71,724
50% 49.9% 59,534 59,376
40% 40.0% 47,627 47,596
30% 29.5% 35,720 35,150
20% 19.8% 23,814 23,634
10% 9.8% 11,907 11,695
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
