Acer Incorporated Acer AR385 F1 ssj_ops@100% = 125,452
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jan 23, 2011
Hardware Availability: Jan-2012 Software Availability: Dec-2010 Publication: Mar 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,761
Calibration 2     125,801
Calibration 3     125,947
ssj_ops@calibrated=125,874
100% 99.7% 125,874 125,452
90% 90.5% 113,287 113,891
80% 79.5% 100,699 100,087
70% 69.9% 88,112 87,992
60% 60.0% 75,524 75,517
50% 50.1% 62,937 63,073
40% 39.5% 50,350 49,705
30% 30.5% 37,762 38,440
20% 19.4% 25,175 24,417
10% 10.0% 12,587 12,579
Active Idle   0 0

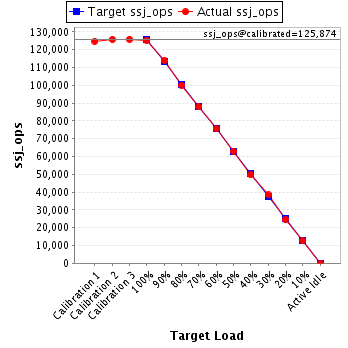

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR385 F1
Form Factor: 2U
CPU Name: AMD Opteron 6238
CPU Characteristics: 12-Core, 2.60 GHz, 16 MB L3 cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 384 KB I + 192 KB D on chip per chip
Secondary Cache: 12 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shard / 6 cores
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 300GB SATA 10K RPM 2.5" HDD, Acer part #TC.32700.088
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [0x7, 0x38, 0x1C0, 0xE00, 0x7000, 0x38000, 0x1C0000, 0xE00000]
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P03T01
Management Firmware Version: 1.40
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 9,075,155 1,875
Payment 9,075,161
Order Status 907,516
Delivery 907,513
Stock Level 907,517
Customer Report 9,075,157
Calibration 2 New Order 9,154,080 1,875
Payment 9,154,089
Order Status 915,408
Delivery 915,408
Stock Level 915,409
Customer Report 9,154,077
Calibration 3 New Order 9,164,197 1,875
Payment 9,164,200
Order Status 916,419
Delivery 916,421
Stock Level 916,420
Customer Report 9,164,201
100% 99.7% New Order 9,127,199 1,875
Payment 9,127,192
Order Status 912,720
Delivery 912,720
Stock Level 912,721
Customer Report 9,127,194
90% 90.5% New Order 8,283,247 1,875
Payment 8,283,247
Order Status 828,325
Delivery 828,324
Stock Level 828,325
Customer Report 8,283,245
80% 79.5% New Order 7,279,429 1,875
Payment 7,279,429
Order Status 727,941
Delivery 727,942
Stock Level 727,944
Customer Report 7,279,433
70% 69.9% New Order 6,400,231 1,875
Payment 6,400,224
Order Status 640,025
Delivery 640,024
Stock Level 640,022
Customer Report 6,400,234
60% 60.0% New Order 5,492,755 1,875
Payment 5,492,749
Order Status 549,276
Delivery 549,275
Stock Level 549,276
Customer Report 5,492,756
50% 50.1% New Order 4,587,347 1,875
Payment 4,587,347
Order Status 458,735
Delivery 458,735
Stock Level 458,735
Customer Report 4,587,345
40% 39.5% New Order 3,615,079 1,875
Payment 3,615,080
Order Status 361,506
Delivery 361,510
Stock Level 361,506
Customer Report 3,615,072
30% 30.5% New Order 2,795,758 1,875
Payment 2,795,755
Order Status 279,575
Delivery 279,576
Stock Level 279,577
Customer Report 2,795,759
20% 19.4% New Order 1,775,887 1,875
Payment 1,775,886
Order Status 177,589
Delivery 177,589
Stock Level 177,590
Customer Report 1,775,886
10% 10.0% New Order 914,850 1,875
Payment 914,853
Order Status 91,484
Delivery 91,486
Stock Level 91,483
Customer Report 914,844
Active Idle New Order 0 1,875
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
