SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R720 (Intel Xeon E5-2670, 2.6 GHz) | SPECpower_ssj2008 = 4,658 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 16, 2012 |
| Hardware Availability: | Mar-2012 | Software Availability: | Dec-2011 | Publication: | Mar 21, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

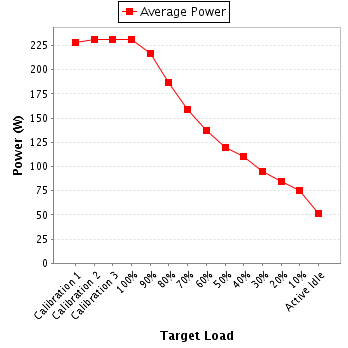

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 228 | 22.9 |
| Calibration 2 | 231 | 22.8 |
| Calibration 3 | 232 | 22.9 |
| 100% | 231 | 22.8 |
| 90% | 217 | 22.8 |
| 80% | 187 | 22.8 |
| 70% | 159 | 22.9 |
| 60% | 137 | 22.8 |
| 50% | 120 | 22.8 |
| 40% | 110 | 22.9 |
| 30% | 95.0 | 22.9 |
| 20% | 84.5 | 22.8 |
| 10% | 75.0 | 22.8 |
| Active Idle | 51.0 | 22.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 5402017 |
| Date of Calibration: | 20-Oct-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.30.02 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.11 | 2.0 | 0.983 | 228 | 0.4% |
| Calibration 2 | 210 | 300.0 | 1.12 | 2.0 | 0.984 | 231 | 0.4% |
| Calibration 3 | 210 | 300.0 | 1.12 | 2.0 | 0.984 | 232 | 0.4% |
| 100% | 210 | 300.0 | 1.12 | 2.0 | 0.983 | 231 | 0.4% |
| 90% | 210 | 300.0 | 1.05 | 2.0 | 0.981 | 217 | 0.4% |
| 80% | 210 | 300.0 | 0.909 | 2.0 | 0.977 | 187 | 0.5% |
| 70% | 210 | 300.0 | 0.778 | 1.0 | 0.974 | 159 | 0.3% |
| 60% | 210 | 300.0 | 0.675 | 1.0 | 0.968 | 137 | 0.4% |
| 50% | 210 | 300.0 | 0.596 | 1.0 | 0.959 | 120 | 0.4% |
| 40% | 210 | 300.0 | 0.550 | 1.0 | 0.953 | 110 | 0.4% |
| 30% | 210 | 300.0 | 0.478 | 1.0 | 0.946 | 95.0 | 0.5% |
| 20% | 210 | 300.0 | 0.430 | 1.0 | 0.934 | 84.5 | 0.5% |
| 10% | 211 | 300.0 | 0.388 | 1.0 | 0.918 | 75.0 | 0.6% |
| Active Idle | 210 | 300.0 | 0.283 | 1.0 | 0.858 | 51.0 | 0.8% |
