Dell Inc. PowerEdge R720 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,238,932
ssj_ops@100% per JVM = 154,866
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Mar 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,228,871
Calibration 2     1,240,096
Calibration 3     1,243,298
ssj_ops@calibrated=1,241,697
100% 99.8% 1,241,697 1,238,932
90% 90.0% 1,117,527 1,117,213
80% 79.8% 993,357 991,389
70% 70.0% 869,188 868,810
60% 60.0% 745,018 745,193
50% 50.0% 620,848 620,466
40% 40.1% 496,679 498,516
30% 30.1% 372,509 373,761
20% 20.0% 248,339 247,963
10% 10.0% 124,170 124,138
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R720
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R720 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 core, 2.6GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3, B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 495
Power Supply Details: Dell P/N 13MD5
Disk Drive: 1 x 100GB SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Dual Port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver plan set in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: X48 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
OrcaPT-Power.001 153,939
OrcaPT-Power.002 155,310
OrcaPT-Power.003 155,034
OrcaPT-Power.004 156,254
OrcaPT-Power.005 154,984
OrcaPT-Power.006 154,712
OrcaPT-Power.007 153,849
OrcaPT-Power.008 154,849
ssj_ops@100% 1,238,932
ssj_ops@100% per JVM 154,866

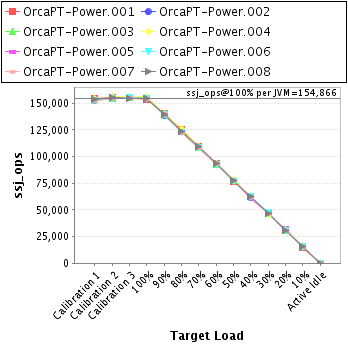

Graph of per-instance results
JVM 'OrcaPT-Power.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,803
Calibration 2     155,593
Calibration 3     155,696
ssj_ops@calibrated=155,644
100% 98.9% 155,644 153,939
90% 90.0% 140,080 140,060
80% 80.5% 124,516 125,241
70% 70.2% 108,951 109,185
60% 60.0% 93,387 93,348
50% 49.5% 77,822 77,009
40% 40.4% 62,258 62,815
30% 30.0% 46,693 46,632
20% 20.3% 31,129 31,628
10% 9.7% 15,564 15,085
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,037
Calibration 2     154,304
Calibration 3     155,237
ssj_ops@calibrated=154,771
100% 100.3% 154,771 155,310
90% 89.5% 139,294 138,476
80% 79.9% 123,817 123,707
70% 70.0% 108,339 108,266
60% 60.1% 92,862 92,971
50% 50.2% 77,385 77,673
40% 40.1% 61,908 62,093
30% 30.4% 46,431 47,022
20% 20.2% 30,954 31,332
10% 9.9% 15,477 15,399
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,322
Calibration 2     154,309
Calibration 3     155,288
ssj_ops@calibrated=154,799
100% 100.2% 154,799 155,034
90% 90.0% 139,319 139,281
80% 79.8% 123,839 123,551
70% 69.9% 108,359 108,212
60% 59.6% 92,879 92,256
50% 50.0% 77,399 77,461
40% 40.3% 61,920 62,457
30% 30.1% 46,440 46,562
20% 19.9% 30,960 30,775
10% 10.2% 15,480 15,841
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,195
Calibration 2     156,406
Calibration 3     156,685
ssj_ops@calibrated=156,546
100% 99.8% 156,546 156,254
90% 89.8% 140,891 140,568
80% 80.6% 125,237 126,173
70% 69.7% 109,582 109,090
60% 59.9% 93,927 93,747
50% 50.1% 78,273 78,456
40% 40.2% 62,618 62,860
30% 29.5% 46,964 46,126
20% 20.1% 31,309 31,398
10% 9.9% 15,655 15,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,262
Calibration 2     155,100
Calibration 3     155,280
ssj_ops@calibrated=155,190
100% 99.9% 155,190 154,984
90% 89.8% 139,671 139,333
80% 79.4% 124,152 123,207
70% 69.8% 108,633 108,333
60% 60.3% 93,114 93,637
50% 50.2% 77,595 77,924
40% 39.4% 62,076 61,076
30% 30.3% 46,557 47,085
20% 19.7% 31,038 30,521
10% 10.0% 15,519 15,459
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,928
Calibration 2     154,902
Calibration 3     155,390
ssj_ops@calibrated=155,146
100% 99.7% 155,146 154,712
90% 90.0% 139,631 139,630
80% 79.2% 124,116 122,940
70% 70.0% 108,602 108,564
60% 59.6% 93,087 92,412
50% 49.2% 77,573 76,350
40% 40.4% 62,058 62,745
30% 30.4% 46,544 47,229
20% 19.9% 31,029 30,846
10% 10.0% 15,515 15,526
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,394
Calibration 2     154,118
Calibration 3     154,834
ssj_ops@calibrated=154,476
100% 99.6% 154,476 153,849
90% 90.7% 139,028 140,060
80% 79.4% 123,581 122,632
70% 69.8% 108,133 107,882
60% 60.1% 92,686 92,829
50% 50.2% 77,238 77,565
40% 40.1% 61,790 61,966
30% 30.0% 46,343 46,399
20% 19.9% 30,895 30,811
10% 10.1% 15,448 15,653
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,929
Calibration 2     155,364
Calibration 3     154,887
ssj_ops@calibrated=155,125
100% 99.8% 155,125 154,849
90% 90.1% 139,613 139,805
80% 79.9% 124,100 123,938
70% 70.4% 108,588 109,277
60% 60.6% 93,075 93,994
50% 50.3% 77,563 78,028
40% 40.3% 62,050 62,505
30% 30.1% 46,538 46,706
20% 19.8% 31,025 30,652
10% 10.1% 15,513 15,676
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
