Huawei Technologies Co., Ltd XH621 V2 SPECpower_ssj2008 = 3,712 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 6, 2012
Hardware Availability: Mar-2012 Software Availability: Mar-2012 Publication: Mar 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 1,926,420 386 4,985
90% 90.1% 1,739,474 358 4,862
80% 79.8% 1,540,800 324 4,759
70% 70.1% 1,352,581 295 4,583
60% 60.1% 1,160,817 268 4,330
50% 49.9% 963,706 250 3,853
40% 40.1% 774,729 235 3,298
30% 29.9% 576,635 218 2,649
20% 20.0% 386,183 201 1,920
10% 10.0% 192,890 183 1,055
Active Idle 0 142 0
∑ssj_ops / ∑power = 3,712
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 4 32 64 64.0 2 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Tecal X6000
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Huawei P/N 98080310, hot-swappable capable
Network Switch: H3C S1008A
Network Switch Details: 8-PORT H3C Aolynk S1008A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Server shelf with 2 nodes
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: XH621 V2
Form Factor: 1U
CPU Name: Intel Xeon E5-2650L
CPU Characteristics: 8-Core, 1.80 GHz, 20 MB L3 Cache
CPU Frequency (MHz): 1800
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal RH2285 Rack Server
CPU Description: Intel Xeon E5620 2.26 GHz
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2003 SP2
JVM Vendor: Oracle
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 (build 20.5-b03, mixed mode)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K630156
Connectivity: RS232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B11004997-0007
Date of Calibration: 20-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 386 21.1
90% 358 21.0
80% 324 20.9
70% 295 20.9
60% 268 20.8
50% 250 20.8
40% 235 20.8
30% 218 20.8
20% 201 20.7
10% 183 20.7
Active Idle 142 20.8
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 20.7 101
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,912,849
Calibration 2     1,929,192
Calibration 3     1,932,310
ssj_ops@calibrated=1,930,751
100% 99.8% 1,930,751 1,926,420
90% 90.1% 1,737,676 1,739,474
80% 79.8% 1,544,601 1,540,800
70% 70.1% 1,351,526 1,352,581
60% 60.1% 1,158,451 1,160,817
50% 49.9% 965,376 963,706
40% 40.1% 772,300 774,729
30% 29.9% 579,225 576,635
20% 20.0% 386,150 386,183
10% 10.0% 193,075 192,890
Active Idle   0 0

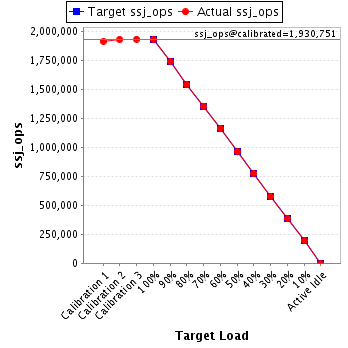

Graph of results
See the Aggregate Performance Report for additional details.
