Acer Incorporated Acer AR385 F1 ssj_ops@100% = 1,183,480
ssj_ops@100% per JVM = 73,968
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Feb 14, 2011
Hardware Availability: Jan-2012 Software Availability: Dec-2010 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,149,109
Calibration 2     1,189,861
Calibration 3     1,189,376
ssj_ops@calibrated=1,189,619
100% 99.5% 1,189,619 1,183,480
90% 89.8% 1,070,657 1,067,791
80% 80.1% 951,695 952,377
70% 70.2% 832,733 834,538
60% 59.8% 713,771 711,865
50% 49.9% 594,809 593,482
40% 40.0% 475,847 475,542
30% 29.9% 356,886 355,961
20% 20.0% 237,924 238,235
10% 10.1% 118,962 119,718
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR385 F1
Form Factor: 2U
CPU Name: AMD Opteron 6276
CPU Characteristics: 16 cores, 2.30 GHz (AMD Turbo CORE technology up to 3.20 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 32 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 300GB SATA 10K RPM 2.5" HDD, Acer part #TC.32700.088
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1600m -Xmx1600m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [0x3,0xC,0x30,0xc0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: P03T01
Management Firmware Version: 1.40
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-N9D0TE10V6L.001 73,992
WIN-N9D0TE10V6L.002 73,294
WIN-N9D0TE10V6L.003 73,281
WIN-N9D0TE10V6L.004 73,651
WIN-N9D0TE10V6L.005 73,870
WIN-N9D0TE10V6L.006 74,055
WIN-N9D0TE10V6L.007 73,957
WIN-N9D0TE10V6L.008 73,448
WIN-N9D0TE10V6L.009 74,383
WIN-N9D0TE10V6L.010 74,160
WIN-N9D0TE10V6L.011 74,459
WIN-N9D0TE10V6L.012 74,240
WIN-N9D0TE10V6L.013 74,067
WIN-N9D0TE10V6L.014 73,718
WIN-N9D0TE10V6L.015 74,857
WIN-N9D0TE10V6L.016 74,047
ssj_ops@100% 1,183,480
ssj_ops@100% per JVM 73,968
Graph of per-instance results
JVM 'WIN-N9D0TE10V6L.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,846
Calibration 2     74,889
Calibration 3     74,140
ssj_ops@calibrated=74,515
100% 99.3% 74,515 73,992
90% 89.3% 67,063 66,556
80% 79.5% 59,612 59,270
70% 70.1% 52,160 52,203
60% 59.7% 44,709 44,470
50% 50.3% 37,257 37,478
40% 39.7% 29,806 29,569
30% 30.1% 22,354 22,441
20% 19.6% 14,903 14,568
10% 10.2% 7,451 7,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,405
Calibration 2     73,370
Calibration 3     73,222
ssj_ops@calibrated=73,296
100% 100.0% 73,296 73,294
90% 90.8% 65,966 66,577
80% 79.9% 58,636 58,583
70% 69.7% 51,307 51,077
60% 60.7% 43,977 44,459
50% 50.0% 36,648 36,664
40% 40.7% 29,318 29,831
30% 29.3% 21,989 21,498
20% 20.5% 14,659 14,995
10% 10.2% 7,330 7,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,461
Calibration 2     74,272
Calibration 3     74,225
ssj_ops@calibrated=74,249
100% 98.7% 74,249 73,281
90% 88.7% 66,824 65,860
80% 80.7% 59,399 59,939
70% 70.8% 51,974 52,556
60% 60.6% 44,549 45,019
50% 50.3% 37,124 37,377
40% 39.9% 29,699 29,645
30% 30.0% 22,275 22,280
20% 20.3% 14,850 15,099
10% 10.6% 7,425 7,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,847
Calibration 2     74,581
Calibration 3     73,341
ssj_ops@calibrated=73,961
100% 99.6% 73,961 73,651
90% 89.7% 66,565 66,319
80% 80.7% 59,169 59,695
70% 69.8% 51,773 51,606
60% 59.4% 44,377 43,913
50% 50.0% 36,980 36,969
40% 40.0% 29,584 29,603
30% 30.1% 22,188 22,293
20% 20.7% 14,792 15,305
10% 10.0% 7,396 7,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,193
Calibration 2     73,923
Calibration 3     73,585
ssj_ops@calibrated=73,754
100% 100.2% 73,754 73,870
90% 90.6% 66,379 66,801
80% 80.2% 59,003 59,149
70% 69.4% 51,628 51,200
60% 60.1% 44,252 44,349
50% 49.9% 36,877 36,805
40% 39.7% 29,502 29,284
30% 29.9% 22,126 22,028
20% 20.0% 14,751 14,780
10% 10.2% 7,375 7,518
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,376
Calibration 2     74,349
Calibration 3     74,745
ssj_ops@calibrated=74,547
100% 99.3% 74,547 74,055
90% 90.3% 67,092 67,295
80% 80.7% 59,637 60,154
70% 70.1% 52,183 52,228
60% 59.4% 44,728 44,277
50% 50.0% 37,273 37,243
40% 39.8% 29,819 29,646
30% 29.0% 22,364 21,649
20% 20.6% 14,909 15,357
10% 10.0% 7,455 7,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,453
Calibration 2     74,120
Calibration 3     74,254
ssj_ops@calibrated=74,187
100% 99.7% 74,187 73,957
90% 90.1% 66,768 66,843
80% 79.7% 59,350 59,140
70% 70.2% 51,931 52,103
60% 58.7% 44,512 43,540
50% 49.7% 37,094 36,850
40% 39.7% 29,675 29,436
30% 29.7% 22,256 22,066
20% 20.1% 14,837 14,929
10% 9.7% 7,419 7,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,890
Calibration 2     73,332
Calibration 3     73,562
ssj_ops@calibrated=73,447
100% 100.0% 73,447 73,448
90% 90.1% 66,102 66,169
80% 80.5% 58,757 59,145
70% 69.2% 51,413 50,832
60% 60.9% 44,068 44,704
50% 49.7% 36,723 36,515
40% 40.1% 29,379 29,427
30% 29.4% 22,034 21,620
20% 19.4% 14,689 14,258
10% 10.2% 7,345 7,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,760
Calibration 2     73,902
Calibration 3     74,728
ssj_ops@calibrated=74,315
100% 100.1% 74,315 74,383
90% 88.7% 66,883 65,935
80% 80.3% 59,452 59,689
70% 70.0% 52,020 51,986
60% 59.7% 44,589 44,340
50% 49.8% 37,157 37,029
40% 39.7% 29,726 29,525
30% 30.7% 22,294 22,851
20% 19.8% 14,863 14,704
10% 9.9% 7,431 7,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,610
Calibration 2     74,588
Calibration 3     74,648
ssj_ops@calibrated=74,618
100% 99.4% 74,618 74,160
90% 89.7% 67,156 66,948
80% 80.7% 59,694 60,179
70% 70.4% 52,232 52,544
60% 59.8% 44,771 44,614
50% 49.9% 37,309 37,237
40% 39.8% 29,847 29,709
30% 29.9% 22,385 22,289
20% 20.1% 14,924 14,979
10% 10.3% 7,462 7,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,122
Calibration 2     75,170
Calibration 3     74,904
ssj_ops@calibrated=75,037
100% 99.2% 75,037 74,459
90% 89.9% 67,533 67,478
80% 79.3% 60,030 59,512
70% 70.1% 52,526 52,588
60% 59.8% 45,022 44,864
50% 49.1% 37,519 36,857
40% 40.1% 30,015 30,063
30% 29.3% 22,511 21,963
20% 19.3% 15,007 14,516
10% 10.0% 7,504 7,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,332
Calibration 2     74,860
Calibration 3     74,542
ssj_ops@calibrated=74,701
100% 99.4% 74,701 74,240
90% 89.7% 67,231 67,015
80% 80.6% 59,761 60,228
70% 69.6% 52,291 51,994
60% 59.4% 44,821 44,409
50% 50.2% 37,350 37,478
40% 40.2% 29,880 30,005
30% 29.6% 22,410 22,101
20% 20.3% 14,940 15,199
10% 9.8% 7,470 7,300
Active Idle   0 0

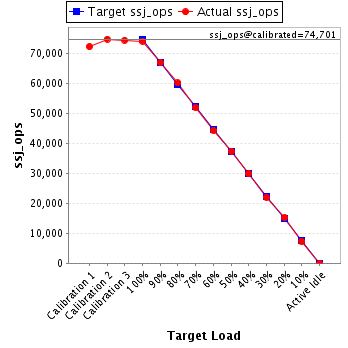

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,977
Calibration 2     74,448
Calibration 3     74,784
ssj_ops@calibrated=74,616
100% 99.3% 74,616 74,067
90% 90.5% 67,155 67,495
80% 78.6% 59,693 58,628
70% 71.9% 52,231 53,671
60% 60.8% 44,770 45,361
50% 49.5% 37,308 36,934
40% 40.1% 29,847 29,891
30% 30.8% 22,385 22,957
20% 19.8% 14,923 14,753
10% 9.9% 7,462 7,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,261
Calibration 2     74,521
Calibration 3     74,551
ssj_ops@calibrated=74,536
100% 98.9% 74,536 73,718
90% 88.9% 67,082 66,233
80% 79.3% 59,629 59,103
70% 69.8% 52,175 51,989
60% 59.7% 44,721 44,462
50% 49.9% 37,268 37,176
40% 39.3% 29,814 29,316
30% 30.1% 22,361 22,472
20% 20.1% 14,907 14,995
10% 10.2% 7,454 7,634
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,636
Calibration 2     75,052
Calibration 3     75,350
ssj_ops@calibrated=75,201
100% 99.5% 75,201 74,857
90% 89.9% 67,681 67,616
80% 80.8% 60,161 60,751
70% 71.3% 52,641 53,608
60% 58.7% 45,121 44,178
50% 50.1% 37,600 37,643
40% 40.5% 30,080 30,429
30% 30.3% 22,560 22,758
20% 20.3% 15,040 15,258
10% 10.1% 7,520 7,603
Active Idle   0 0

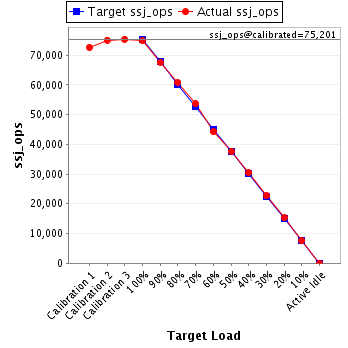

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-N9D0TE10V6L.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,941
Calibration 2     74,485
Calibration 3     74,797
ssj_ops@calibrated=74,641
100% 99.2% 74,641 74,047
90% 89.3% 67,177 66,652
80% 79.3% 59,713 59,212
70% 70.1% 52,249 52,354
60% 60.2% 44,785 44,906
50% 49.9% 37,321 37,227
40% 40.4% 29,856 30,163
30% 30.4% 22,392 22,696
20% 19.5% 14,928 14,541
10% 9.7% 7,464 7,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
