Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,263,846
ssj_ops@100% per JVM = 78,990
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,259,768
Calibration 2     1,269,955
Calibration 3     1,267,128
ssj_ops@calibrated=1,268,542
100% 99.6% 1,268,542 1,263,846
90% 90.2% 1,141,688 1,144,079
80% 80.0% 1,014,833 1,014,742
70% 70.2% 887,979 890,090
60% 59.7% 761,125 757,703
50% 50.1% 634,271 635,016
40% 39.9% 507,417 505,855
30% 30.0% 380,563 380,969
20% 19.8% 253,708 251,535
10% 10.0% 126,854 126,882
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
  • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-02.001 79,484
    M620-02.002 80,226
    M620-02.003 79,340
    M620-02.004 78,628
    M620-02.005 78,633
    M620-02.006 78,586
    M620-02.007 79,208
    M620-02.008 79,219
    M620-02.009 78,607
    M620-02.010 78,096
    M620-02.011 79,238
    M620-02.012 78,740
    M620-02.013 78,599
    M620-02.014 78,389
    M620-02.015 79,107
    M620-02.016 79,748
    ssj_ops@100% 1,263,846
    ssj_ops@100% per JVM 78,990

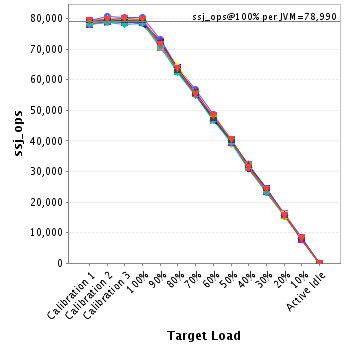

    Graph of per-instance results
    JVM 'M620-02.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,395
    Calibration 2     79,586
    Calibration 3     79,846
    ssj_ops@calibrated=79,716
    100% 99.7% 79,716 79,484
    90% 89.5% 71,744 71,319
    80% 79.9% 63,773 63,661
    70% 69.8% 55,801 55,651
    60% 59.7% 47,830 47,582
    50% 50.1% 39,858 39,930
    40% 40.5% 31,886 32,246
    30% 30.4% 23,915 24,225
    20% 20.3% 15,943 16,156
    10% 10.4% 7,972 8,321
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,253
    Calibration 2     80,698
    Calibration 3     80,192
    ssj_ops@calibrated=80,445
    100% 99.7% 80,445 80,226
    90% 91.0% 72,400 73,173
    80% 79.4% 64,356 63,869
    70% 70.5% 56,311 56,746
    60% 60.5% 48,267 48,699
    50% 49.7% 40,222 39,947
    40% 38.9% 32,178 31,283
    30% 30.4% 24,133 24,494
    20% 19.7% 16,089 15,828
    10% 10.3% 8,044 8,271
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,925
    Calibration 2     79,850
    Calibration 3     79,657
    ssj_ops@calibrated=79,753
    100% 99.5% 79,753 79,340
    90% 90.0% 71,778 71,810
    80% 80.9% 63,803 64,503
    70% 70.2% 55,827 55,962
    60% 59.8% 47,852 47,703
    50% 50.3% 39,877 40,102
    40% 40.5% 31,901 32,289
    30% 29.3% 23,926 23,345
    20% 19.9% 15,951 15,884
    10% 9.9% 7,975 7,879
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,950
    Calibration 2     79,495
    Calibration 3     78,554
    ssj_ops@calibrated=79,025
    100% 99.5% 79,025 78,628
    90% 90.2% 71,122 71,298
    80% 81.6% 63,220 64,472
    70% 70.3% 55,317 55,532
    60% 58.9% 47,415 46,518
    50% 49.8% 39,512 39,370
    40% 40.2% 31,610 31,745
    30% 29.3% 23,707 23,181
    20% 20.2% 15,805 15,926
    10% 9.9% 7,902 7,837
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,354
    Calibration 2     79,141
    Calibration 3     79,308
    ssj_ops@calibrated=79,225
    100% 99.3% 79,225 78,633
    90% 88.5% 71,302 70,137
    80% 80.4% 63,380 63,684
    70% 70.8% 55,457 56,091
    60% 59.4% 47,535 47,066
    50% 50.3% 39,612 39,827
    40% 39.1% 31,690 30,937
    30% 30.2% 23,767 23,892
    20% 20.0% 15,845 15,878
    10% 9.7% 7,922 7,695
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,755
    Calibration 2     79,146
    Calibration 3     78,233
    ssj_ops@calibrated=78,689
    100% 99.9% 78,689 78,586
    90% 90.0% 70,821 70,802
    80% 79.4% 62,952 62,501
    70% 70.3% 55,083 55,300
    60% 60.1% 47,214 47,317
    50% 49.4% 39,345 38,842
    40% 39.1% 31,476 30,754
    30% 30.4% 23,607 23,958
    20% 20.1% 15,738 15,845
    10% 9.9% 7,869 7,825
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,697
    Calibration 2     79,638
    Calibration 3     79,049
    ssj_ops@calibrated=79,344
    100% 99.8% 79,344 79,208
    90% 90.2% 71,409 71,588
    80% 79.7% 63,475 63,204
    70% 70.7% 55,541 56,058
    60% 59.5% 47,606 47,208
    50% 49.8% 39,672 39,523
    40% 39.8% 31,737 31,565
    30% 30.5% 23,803 24,201
    20% 19.7% 15,869 15,628
    10% 9.6% 7,934 7,629
    Active Idle   0 0
    Graph of results

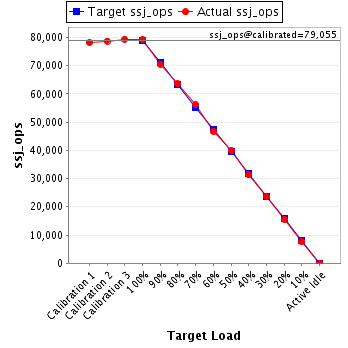

    JVM 'M620-02.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,229
    Calibration 2     78,726
    Calibration 3     79,384
    ssj_ops@calibrated=79,055
    100% 100.2% 79,055 79,219
    90% 89.3% 71,149 70,564
    80% 80.5% 63,244 63,604
    70% 71.1% 55,338 56,170
    60% 59.2% 47,433 46,774
    50% 50.4% 39,527 39,880
    40% 39.6% 31,622 31,268
    30% 29.9% 23,716 23,676
    20% 19.8% 15,811 15,640
    10% 9.6% 7,905 7,610
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,729
    Calibration 2     79,370
    Calibration 3     79,167
    ssj_ops@calibrated=79,269
    100% 99.2% 79,269 78,607
    90% 90.2% 71,342 71,525
    80% 80.0% 63,415 63,384
    70% 70.5% 55,488 55,907
    60% 60.1% 47,561 47,650
    50% 49.9% 39,634 39,535
    40% 39.3% 31,708 31,123
    30% 29.4% 23,781 23,289
    20% 19.6% 15,854 15,570
    10% 10.1% 7,927 7,973
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,739
    Calibration 2     79,184
    Calibration 3     79,374
    ssj_ops@calibrated=79,279
    100% 98.5% 79,279 78,096
    90% 91.1% 71,351 72,218
    80% 80.6% 63,423 63,886
    70% 69.6% 55,495 55,159
    60% 58.7% 47,567 46,552
    50% 50.5% 39,639 40,071
    40% 40.1% 31,712 31,821
    30% 30.8% 23,784 24,421
    20% 19.9% 15,856 15,766
    10% 10.2% 7,928 8,099
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,748
    Calibration 2     79,333
    Calibration 3     78,970
    ssj_ops@calibrated=79,151
    100% 100.1% 79,151 79,238
    90% 90.4% 71,236 71,529
    80% 79.0% 63,321 62,512
    70% 70.2% 55,406 55,573
    60% 60.1% 47,491 47,577
    50% 50.2% 39,576 39,732
    40% 40.4% 31,661 32,004
    30% 29.9% 23,745 23,660
    20% 19.6% 15,830 15,496
    10% 9.8% 7,915 7,725
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,554
    Calibration 2     79,147
    Calibration 3     79,313
    ssj_ops@calibrated=79,230
    100% 99.4% 79,230 78,740
    90% 89.5% 71,307 70,910
    80% 79.5% 63,384 62,977
    70% 69.7% 55,461 55,230
    60% 60.1% 47,538 47,615
    50% 49.4% 39,615 39,175
    40% 40.3% 31,692 31,922
    30% 29.4% 23,769 23,261
    20% 19.4% 15,846 15,337
    10% 10.0% 7,923 7,950
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,011
    Calibration 2     78,949
    Calibration 3     78,807
    ssj_ops@calibrated=78,878
    100% 99.6% 78,878 78,599
    90% 91.8% 70,990 72,392
    80% 80.5% 63,102 63,493
    70% 70.4% 55,215 55,521
    60% 60.1% 47,327 47,374
    50% 49.9% 39,439 39,334
    40% 40.8% 31,551 32,161
    30% 29.9% 23,663 23,614
    20% 20.0% 15,776 15,804
    10% 9.9% 7,888 7,770
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,963
    Calibration 2     78,603
    Calibration 3     78,145
    ssj_ops@calibrated=78,374
    100% 100.0% 78,374 78,389
    90% 90.4% 70,537 70,888
    80% 79.6% 62,699 62,418
    70% 69.9% 54,862 54,789
    60% 59.6% 47,024 46,694
    50% 50.2% 39,187 39,352
    40% 40.1% 31,350 31,426
    30% 29.7% 23,512 23,257
    20% 19.8% 15,675 15,499
    10% 10.3% 7,837 8,062
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,126
    Calibration 2     79,551
    Calibration 3     79,268
    ssj_ops@calibrated=79,409
    100% 99.6% 79,409 79,107
    90% 91.2% 71,468 72,432
    80% 79.2% 63,527 62,880
    70% 69.6% 55,587 55,292
    60% 59.4% 47,646 47,194
    50% 50.3% 39,705 39,956
    40% 40.2% 31,764 31,907
    30% 30.7% 23,823 24,359
    20% 19.7% 15,882 15,662
    10% 10.2% 7,941 8,087
    Active Idle   0 0
    Graph of results
    JVM 'M620-02.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,341
    Calibration 2     79,538
    Calibration 3     79,860
    ssj_ops@calibrated=79,699
    100% 100.1% 79,699 79,748
    90% 89.7% 71,729 71,493
    80% 79.9% 63,759 63,694
    70% 69.1% 55,789 55,108
    60% 60.5% 47,820 48,181
    50% 50.7% 39,850 40,441
    40% 39.4% 31,880 31,402
    30% 30.3% 23,910 24,138
    20% 19.6% 15,940 15,616
    10% 10.2% 7,970 8,149
    Active Idle   0 0
    Graph of results
