Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,261,663
ssj_ops@100% per JVM = 78,854
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,258,820
Calibration 2     1,264,519
Calibration 3     1,268,493
ssj_ops@calibrated=1,266,506
100% 99.6% 1,266,506 1,261,663
90% 90.0% 1,139,855 1,140,009
80% 80.0% 1,013,205 1,012,790
70% 69.8% 886,554 883,473
60% 60.2% 759,904 761,984
50% 50.0% 633,253 632,795
40% 40.0% 506,602 506,048
30% 29.9% 379,952 378,869
20% 20.0% 253,301 253,640
10% 10.0% 126,651 126,706
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-04.001 78,924
    M620-04.002 78,633
    M620-04.003 77,863
    M620-04.004 78,199
    M620-04.005 79,133
    M620-04.006 78,555
    M620-04.007 77,471
    M620-04.008 79,662
    M620-04.009 78,797
    M620-04.010 79,032
    M620-04.011 79,090
    M620-04.012 79,149
    M620-04.013 78,364
    M620-04.014 79,691
    M620-04.015 79,439
    M620-04.016 79,661
    ssj_ops@100% 1,261,663
    ssj_ops@100% per JVM 78,854

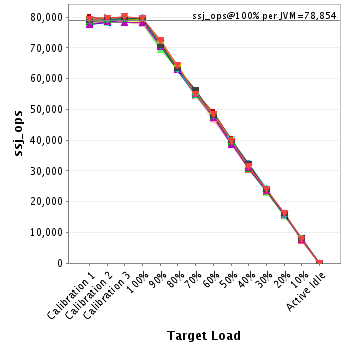

    Graph of per-instance results
    JVM 'M620-04.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,550
    Calibration 2     78,834
    Calibration 3     79,200
    ssj_ops@calibrated=79,017
    100% 99.9% 79,017 78,924
    90% 90.7% 71,115 71,673
    80% 80.6% 63,214 63,658
    70% 70.1% 55,312 55,428
    60% 60.3% 47,410 47,675
    50% 49.9% 39,509 39,437
    40% 38.4% 31,607 30,377
    30% 30.1% 23,705 23,819
    20% 19.9% 15,803 15,686
    10% 9.4% 7,902 7,426
    Active Idle   0 0

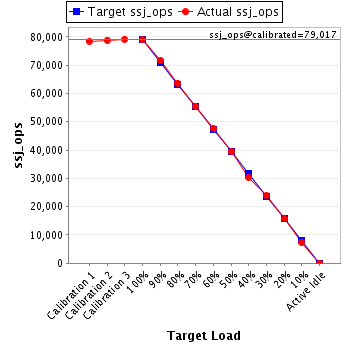

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,071
    Calibration 2     79,070
    Calibration 3     79,680
    ssj_ops@calibrated=79,375
    100% 99.1% 79,375 78,633
    90% 91.3% 71,437 72,509
    80% 80.1% 63,500 63,597
    70% 69.7% 55,562 55,294
    60% 59.3% 47,625 47,038
    50% 48.8% 39,687 38,707
    40% 40.7% 31,750 32,314
    30% 29.2% 23,812 23,190
    20% 20.3% 15,875 16,124
    10% 9.8% 7,937 7,750
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,241
    Calibration 2     78,278
    Calibration 3     78,232
    ssj_ops@calibrated=78,255
    100% 99.5% 78,255 77,863
    90% 88.6% 70,430 69,355
    80% 80.3% 62,604 62,835
    70% 70.3% 54,779 55,013
    60% 60.1% 46,953 47,024
    50% 51.0% 39,128 39,913
    40% 40.3% 31,302 31,554
    30% 29.5% 23,477 23,092
    20% 20.2% 15,651 15,837
    10% 9.9% 7,826 7,733
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,893
    Calibration 2     78,997
    Calibration 3     78,942
    ssj_ops@calibrated=78,970
    100% 99.0% 78,970 78,199
    90% 90.2% 71,073 71,206
    80% 80.2% 63,176 63,295
    70% 70.0% 55,279 55,311
    60% 59.0% 47,382 46,624
    50% 50.3% 39,485 39,723
    40% 40.0% 31,588 31,592
    30% 30.1% 23,691 23,790
    20% 19.4% 15,794 15,301
    10% 10.0% 7,897 7,904
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,670
    Calibration 2     78,588
    Calibration 3     79,592
    ssj_ops@calibrated=79,090
    100% 100.1% 79,090 79,133
    90% 90.0% 71,181 71,186
    80% 80.5% 63,272 63,686
    70% 70.4% 55,363 55,716
    60% 59.8% 47,454 47,304
    50% 50.2% 39,545 39,676
    40% 40.4% 31,636 31,979
    30% 30.3% 23,727 23,949
    20% 20.2% 15,818 15,995
    10% 10.5% 7,909 8,329
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,570
    Calibration 2     79,307
    Calibration 3     79,458
    ssj_ops@calibrated=79,382
    100% 99.0% 79,382 78,555
    90% 89.5% 71,444 71,085
    80% 79.6% 63,506 63,189
    70% 69.1% 55,568 54,815
    60% 60.3% 47,629 47,896
    50% 50.5% 39,691 40,090
    40% 40.2% 31,753 31,937
    30% 30.2% 23,815 23,994
    20% 20.0% 15,876 15,906
    10% 10.0% 7,938 7,920
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,341
    Calibration 2     78,592
    Calibration 3     78,596
    ssj_ops@calibrated=78,594
    100% 98.6% 78,594 77,471
    90% 90.3% 70,735 70,942
    80% 79.9% 62,876 62,775
    70% 69.9% 55,016 54,910
    60% 58.9% 47,157 46,265
    50% 49.9% 39,297 39,228
    40% 40.4% 31,438 31,719
    30% 30.3% 23,578 23,790
    20% 19.9% 15,719 15,675
    10% 10.3% 7,859 8,108
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,150
    Calibration 2     79,950
    Calibration 3     79,550
    ssj_ops@calibrated=79,750
    100% 99.9% 79,750 79,662
    90% 90.8% 71,775 72,415
    80% 79.0% 63,800 62,968
    70% 68.5% 55,825 54,652
    60% 60.0% 47,850 47,845
    50% 50.0% 39,875 39,856
    40% 39.8% 31,900 31,715
    30% 29.4% 23,925 23,409
    20% 19.5% 15,950 15,572
    10% 9.9% 7,975 7,916
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,860
    Calibration 2     79,587
    Calibration 3     79,798
    ssj_ops@calibrated=79,693
    100% 98.9% 79,693 78,797
    90% 89.7% 71,723 71,524
    80% 79.6% 63,754 63,400
    70% 69.6% 55,785 55,458
    60% 61.4% 47,816 48,894
    50% 50.4% 39,846 40,182
    40% 40.4% 31,877 32,231
    30% 30.0% 23,908 23,912
    20% 19.9% 15,939 15,843
    10% 10.1% 7,969 8,064
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,726
    Calibration 2     78,147
    Calibration 3     79,250
    ssj_ops@calibrated=78,699
    100% 100.4% 78,699 79,032
    90% 90.8% 70,829 71,461
    80% 79.6% 62,959 62,635
    70% 69.8% 55,089 54,905
    60% 60.9% 47,219 47,919
    50% 49.9% 39,349 39,271
    40% 39.2% 31,480 30,871
    30% 29.7% 23,610 23,376
    20% 19.9% 15,740 15,674
    10% 10.3% 7,870 8,114
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,569
    Calibration 2     78,893
    Calibration 3     79,245
    ssj_ops@calibrated=79,069
    100% 100.0% 79,069 79,090
    90% 89.5% 71,162 70,798
    80% 80.4% 63,255 63,546
    70% 69.4% 55,348 54,885
    60% 60.3% 47,441 47,684
    50% 49.8% 39,534 39,356
    40% 39.0% 31,628 30,856
    30% 30.1% 23,721 23,766
    20% 20.3% 15,814 16,057
    10% 9.9% 7,907 7,804
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,796
    Calibration 2     79,533
    Calibration 3     79,425
    ssj_ops@calibrated=79,479
    100% 99.6% 79,479 79,149
    90% 90.1% 71,531 71,636
    80% 80.7% 63,583 64,175
    70% 70.2% 55,635 55,809
    60% 60.7% 47,687 48,235
    50% 50.0% 39,739 39,764
    40% 39.9% 31,792 31,680
    30% 29.2% 23,844 23,220
    20% 20.1% 15,896 15,958
    10% 10.1% 7,948 7,991
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,654
    Calibration 2     78,559
    Calibration 3     78,306
    ssj_ops@calibrated=78,433
    100% 99.9% 78,433 78,364
    90% 89.8% 70,590 70,443
    80% 80.3% 62,746 62,958
    70% 70.2% 54,903 55,022
    60% 60.5% 47,060 47,442
    50% 49.0% 39,216 38,458
    40% 39.5% 31,373 30,994
    30% 30.0% 23,530 23,498
    20% 20.7% 15,687 16,228
    10% 10.0% 7,843 7,870
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,896
    Calibration 2     79,363
    Calibration 3     79,602
    ssj_ops@calibrated=79,483
    100% 100.3% 79,483 79,691
    90% 89.1% 71,534 70,841
    80% 79.1% 63,586 62,905
    70% 69.0% 55,638 54,812
    60% 60.5% 47,690 48,115
    50% 50.1% 39,741 39,799
    40% 40.7% 31,793 32,386
    30% 30.6% 23,845 24,299
    20% 19.6% 15,897 15,580
    10% 10.0% 7,948 7,987
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,609
    Calibration 2     79,317
    Calibration 3     79,387
    ssj_ops@calibrated=79,352
    100% 100.1% 79,352 79,439
    90% 89.0% 71,417 70,639
    80% 79.4% 63,482 62,966
    70% 71.3% 55,546 56,573
    60% 60.1% 47,611 47,702
    50% 50.0% 39,676 39,651
    40% 40.9% 31,741 32,424
    30% 29.8% 23,806 23,642
    20% 20.2% 15,870 15,995
    10% 10.0% 7,935 7,911
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-04.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,225
    Calibration 2     79,504
    Calibration 3     80,228
    ssj_ops@calibrated=79,866
    100% 99.7% 79,866 79,661
    90% 90.5% 71,880 72,295
    80% 80.4% 63,893 64,201
    70% 68.7% 55,906 54,870
    60% 60.5% 47,920 48,322
    50% 49.7% 39,933 39,683
    40% 39.3% 31,946 31,420
    30% 30.2% 23,960 24,123
    20% 20.3% 15,973 16,207
    10% 9.9% 7,987 7,879
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
