Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,261,447
ssj_ops@100% per JVM = 78,840
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,259,793
Calibration 2     1,266,062
Calibration 3     1,266,663
ssj_ops@calibrated=1,266,363
100% 99.6% 1,266,363 1,261,447
90% 89.9% 1,139,726 1,138,453
80% 80.1% 1,013,090 1,014,702
70% 69.9% 886,454 885,009
60% 60.0% 759,818 759,588
50% 49.9% 633,181 632,476
40% 40.0% 506,545 507,055
30% 30.0% 379,909 380,172
20% 20.1% 253,273 254,234
10% 10.0% 126,636 126,589
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
  • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-05.001 80,051
    M620-05.002 79,646
    M620-05.003 79,003
    M620-05.004 78,502
    M620-05.005 78,424
    M620-05.006 78,355
    M620-05.007 77,989
    M620-05.008 78,710
    M620-05.009 78,911
    M620-05.010 79,215
    M620-05.011 79,226
    M620-05.012 78,548
    M620-05.013 78,945
    M620-05.014 78,946
    M620-05.015 77,864
    M620-05.016 79,114
    ssj_ops@100% 1,261,447
    ssj_ops@100% per JVM 78,840

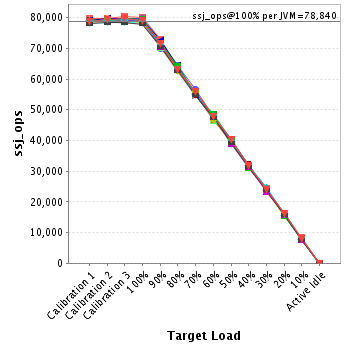

    Graph of per-instance results
    JVM 'M620-05.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,572
    Calibration 2     79,692
    Calibration 3     80,403
    ssj_ops@calibrated=80,047
    100% 100.0% 80,047 80,051
    90% 90.9% 72,043 72,751
    80% 79.5% 64,038 63,632
    70% 68.9% 56,033 55,191
    60% 59.6% 48,028 47,730
    50% 50.0% 40,024 39,998
    40% 39.8% 32,019 31,850
    30% 30.4% 24,014 24,320
    20% 19.9% 16,009 15,924
    10% 10.5% 8,005 8,387
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,997
    Calibration 2     79,342
    Calibration 3     79,752
    ssj_ops@calibrated=79,547
    100% 100.1% 79,547 79,646
    90% 88.1% 71,593 70,058
    80% 81.1% 63,638 64,519
    70% 71.1% 55,683 56,567
    60% 59.9% 47,728 47,656
    50% 50.7% 39,774 40,363
    40% 39.4% 31,819 31,304
    30% 29.8% 23,864 23,717
    20% 20.2% 15,909 16,092
    10% 9.6% 7,955 7,647
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,487
    Calibration 2     79,446
    Calibration 3     78,910
    ssj_ops@calibrated=79,178
    100% 99.8% 79,178 79,003
    90% 88.5% 71,260 70,106
    80% 79.7% 63,342 63,109
    70% 70.3% 55,425 55,638
    60% 58.9% 47,507 46,604
    50% 50.4% 39,589 39,929
    40% 40.0% 31,671 31,670
    30% 29.6% 23,753 23,448
    20% 19.8% 15,836 15,677
    10% 9.9% 7,918 7,870
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,547
    Calibration 2     79,718
    Calibration 3     79,123
    ssj_ops@calibrated=79,421
    100% 98.8% 79,421 78,502
    90% 89.9% 71,478 71,420
    80% 80.6% 63,536 63,986
    70% 70.5% 55,594 56,021
    60% 59.5% 47,652 47,294
    50% 49.6% 39,710 39,378
    40% 40.5% 31,768 32,176
    30% 29.2% 23,826 23,229
    20% 19.3% 15,884 15,303
    10% 10.3% 7,942 8,149
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,612
    Calibration 2     78,875
    Calibration 3     79,119
    ssj_ops@calibrated=78,997
    100% 99.3% 78,997 78,424
    90% 90.0% 71,097 71,110
    80% 80.9% 63,198 63,894
    70% 69.7% 55,298 55,034
    60% 60.0% 47,398 47,402
    50% 49.6% 39,498 39,170
    40% 40.2% 31,599 31,776
    30% 30.0% 23,699 23,711
    20% 20.4% 15,799 16,138
    10% 10.0% 7,900 7,895
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,025
    Calibration 2     78,400
    Calibration 3     78,422
    ssj_ops@calibrated=78,411
    100% 99.9% 78,411 78,355
    90% 90.2% 70,570 70,710
    80% 79.6% 62,728 62,451
    70% 69.8% 54,887 54,707
    60% 60.7% 47,046 47,574
    50% 49.3% 39,205 38,650
    40% 40.6% 31,364 31,804
    30% 30.5% 23,523 23,941
    20% 20.7% 15,682 16,257
    10% 10.0% 7,841 7,862
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,975
    Calibration 2     78,596
    Calibration 3     78,226
    ssj_ops@calibrated=78,411
    100% 99.5% 78,411 77,989
    90% 89.8% 70,570 70,386
    80% 79.7% 62,729 62,513
    70% 69.7% 54,888 54,624
    60% 60.3% 47,047 47,303
    50% 49.2% 39,206 38,581
    40% 39.7% 31,365 31,139
    30% 30.2% 23,523 23,641
    20% 19.8% 15,682 15,505
    10% 10.2% 7,841 7,983
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,172
    Calibration 2     79,119
    Calibration 3     79,074
    ssj_ops@calibrated=79,097
    100% 99.5% 79,097 78,710
    90% 90.8% 71,187 71,820
    80% 80.0% 63,277 63,298
    70% 69.2% 55,368 54,703
    60% 60.6% 47,458 47,941
    50% 50.0% 39,548 39,537
    40% 40.5% 31,639 32,007
    30% 29.8% 23,729 23,534
    20% 20.4% 15,819 16,121
    10% 9.9% 7,910 7,870
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,024
    Calibration 2     79,025
    Calibration 3     79,135
    ssj_ops@calibrated=79,080
    100% 99.8% 79,080 78,911
    90% 90.6% 71,172 71,661
    80% 80.8% 63,264 63,897
    70% 69.7% 55,356 55,110
    60% 59.2% 47,448 46,843
    50% 49.8% 39,540 39,357
    40% 40.8% 31,632 32,228
    30% 29.5% 23,724 23,363
    20% 20.5% 15,816 16,183
    10% 10.0% 7,908 7,887
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,923
    Calibration 2     79,610
    Calibration 3     79,553
    ssj_ops@calibrated=79,581
    100% 99.5% 79,581 79,215
    90% 91.0% 71,623 72,408
    80% 81.0% 63,665 64,435
    70% 69.1% 55,707 55,020
    60% 59.4% 47,749 47,242
    50% 50.4% 39,791 40,102
    40% 40.0% 31,833 31,829
    30% 29.8% 23,874 23,725
    20% 19.6% 15,916 15,566
    10% 9.6% 7,958 7,675
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,685
    Calibration 2     79,098
    Calibration 3     79,735
    ssj_ops@calibrated=79,417
    100% 99.8% 79,417 79,226
    90% 90.2% 71,475 71,655
    80% 80.7% 63,533 64,102
    70% 69.7% 55,592 55,391
    60% 60.8% 47,650 48,281
    50% 50.2% 39,708 39,842
    40% 39.4% 31,767 31,282
    30% 30.1% 23,825 23,882
    20% 19.6% 15,883 15,541
    10% 9.8% 7,942 7,800
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,529
    Calibration 2     79,024
    Calibration 3     78,904
    ssj_ops@calibrated=78,964
    100% 99.5% 78,964 78,548
    90% 90.1% 71,067 71,183
    80% 79.5% 63,171 62,810
    70% 70.3% 55,275 55,543
    60% 59.1% 47,378 46,673
    50% 50.0% 39,482 39,475
    40% 39.9% 31,586 31,492
    30% 29.9% 23,689 23,618
    20% 20.6% 15,793 16,289
    10% 10.1% 7,896 7,945
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,629
    Calibration 2     79,371
    Calibration 3     79,055
    ssj_ops@calibrated=79,213
    100% 99.7% 79,213 78,945
    90% 89.0% 71,292 70,498
    80% 79.5% 63,371 62,991
    70% 70.3% 55,449 55,714
    60% 60.2% 47,528 47,656
    50% 49.2% 39,607 38,975
    40% 40.0% 31,685 31,655
    30% 29.5% 23,764 23,405
    20% 20.0% 15,843 15,870
    10% 10.0% 7,921 7,891
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,961
    Calibration 2     79,140
    Calibration 3     79,283
    ssj_ops@calibrated=79,211
    100% 99.7% 79,211 78,946
    90% 89.4% 71,290 70,781
    80% 80.0% 63,369 63,337
    70% 69.8% 55,448 55,311
    60% 60.9% 47,527 48,225
    50% 50.3% 39,606 39,829
    40% 40.2% 31,684 31,807
    30% 31.1% 23,763 24,599
    20% 20.2% 15,842 16,009
    10% 10.2% 7,921 8,078
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,950
    Calibration 2     78,249
    Calibration 3     78,356
    ssj_ops@calibrated=78,302
    100% 99.4% 78,302 77,864
    90% 90.0% 70,472 70,478
    80% 80.1% 62,642 62,714
    70% 69.8% 54,812 54,653
    60% 60.6% 46,981 47,433
    50% 49.9% 39,151 39,083
    40% 39.9% 31,321 31,264
    30% 30.5% 23,491 23,912
    20% 20.0% 15,660 15,690
    10% 9.9% 7,830 7,715
    Active Idle   0 0
    Graph of results
    JVM 'M620-05.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,705
    Calibration 2     79,357
    Calibration 3     79,613
    ssj_ops@calibrated=79,485
    100% 99.5% 79,485 79,114
    90% 89.9% 71,536 71,428
    80% 79.3% 63,588 63,015
    70% 70.2% 55,639 55,783
    60% 60.0% 47,691 47,731
    50% 50.6% 39,742 40,207
    40% 40.0% 31,794 31,771
    30% 30.4% 23,845 24,126
    20% 20.2% 15,897 16,070
    10% 10.0% 7,948 7,933
    Active Idle   0 0
    Graph of results
