Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,264,526
ssj_ops@100% per JVM = 79,033
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,266,118
Calibration 2     1,270,251
Calibration 3     1,271,147
ssj_ops@calibrated=1,270,699
100% 99.5% 1,270,699 1,264,526
90% 89.9% 1,143,629 1,142,598
80% 80.0% 1,016,559 1,017,167
70% 69.9% 889,489 887,782
60% 59.9% 762,419 760,715
50% 49.9% 635,349 633,543
40% 40.2% 508,279 510,214
30% 29.9% 381,210 379,719
20% 20.2% 254,140 256,555
10% 10.1% 127,070 128,282
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-07.001 80,328
    M620-07.002 78,195
    M620-07.003 77,927
    M620-07.004 79,924
    M620-07.005 77,765
    M620-07.006 79,007
    M620-07.007 78,827
    M620-07.008 79,118
    M620-07.009 78,759
    M620-07.010 78,955
    M620-07.011 78,311
    M620-07.012 78,866
    M620-07.013 79,451
    M620-07.014 79,860
    M620-07.015 79,784
    M620-07.016 79,449
    ssj_ops@100% 1,264,526
    ssj_ops@100% per JVM 79,033

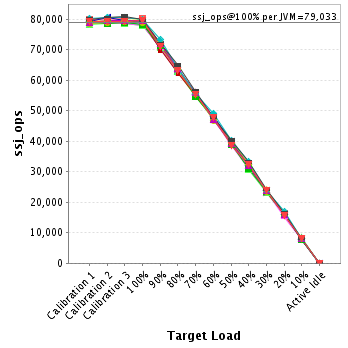

    Graph of per-instance results
    JVM 'M620-07.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,977
    Calibration 2     79,798
    Calibration 3     80,204
    ssj_ops@calibrated=80,001
    100% 100.4% 80,001 80,328
    90% 89.7% 72,001 71,791
    80% 79.9% 64,001 63,885
    70% 69.4% 56,001 55,498
    60% 59.4% 48,001 47,539
    50% 49.8% 40,000 39,867
    40% 39.7% 32,000 31,753
    30% 29.6% 24,000 23,716
    20% 20.5% 16,000 16,436
    10% 10.0% 8,000 7,993
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,459
    Calibration 2     78,949
    Calibration 3     78,804
    ssj_ops@calibrated=78,876
    100% 99.1% 78,876 78,195
    90% 89.3% 70,989 70,424
    80% 79.3% 63,101 62,532
    70% 70.4% 55,213 55,550
    60% 60.7% 47,326 47,858
    50% 50.4% 39,438 39,789
    40% 39.4% 31,550 31,081
    30% 30.1% 23,663 23,730
    20% 20.6% 15,775 16,270
    10% 9.9% 7,888 7,837
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,308
    Calibration 2     78,558
    Calibration 3     78,560
    ssj_ops@calibrated=78,559
    100% 99.2% 78,559 77,927
    90% 90.0% 70,703 70,697
    80% 79.9% 62,847 62,775
    70% 69.7% 54,991 54,757
    60% 61.0% 47,135 47,913
    50% 50.2% 39,280 39,472
    40% 39.2% 31,424 30,771
    30% 29.5% 23,568 23,192
    20% 20.1% 15,712 15,783
    10% 10.6% 7,856 8,312
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,709
    Calibration 2     79,557
    Calibration 3     79,701
    ssj_ops@calibrated=79,629
    100% 100.4% 79,629 79,924
    90% 90.5% 71,666 72,032
    80% 80.3% 63,703 63,919
    70% 70.2% 55,740 55,876
    60% 59.2% 47,777 47,150
    50% 49.7% 39,814 39,613
    40% 39.6% 31,852 31,569
    30% 30.2% 23,889 24,019
    20% 20.4% 15,926 16,253
    10% 9.9% 7,963 7,891
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,702
    Calibration 2     78,852
    Calibration 3     78,588
    ssj_ops@calibrated=78,720
    100% 98.8% 78,720 77,765
    90% 89.6% 70,848 70,570
    80% 80.4% 62,976 63,327
    70% 70.9% 55,104 55,820
    60% 59.7% 47,232 47,004
    50% 49.0% 39,360 38,596
    40% 39.2% 31,488 30,897
    30% 29.9% 23,616 23,530
    20% 19.1% 15,744 15,031
    10% 9.9% 7,872 7,827
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,621
    Calibration 2     78,987
    Calibration 3     79,886
    ssj_ops@calibrated=79,437
    100% 99.5% 79,437 79,007
    90% 89.3% 71,493 70,911
    80% 79.8% 63,549 63,426
    70% 70.2% 55,606 55,734
    60% 59.8% 47,662 47,469
    50% 50.3% 39,718 39,922
    40% 39.9% 31,775 31,697
    30% 29.8% 23,831 23,692
    20% 20.2% 15,887 16,012
    10% 10.0% 7,944 7,975
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,513
    Calibration 2     79,768
    Calibration 3     79,650
    ssj_ops@calibrated=79,709
    100% 98.9% 79,709 78,827
    90% 90.3% 71,738 71,955
    80% 79.4% 63,767 63,259
    70% 69.7% 55,796 55,529
    60% 59.0% 47,825 47,026
    50% 50.5% 39,855 40,272
    40% 39.6% 31,884 31,533
    30% 30.2% 23,913 24,057
    20% 19.8% 15,942 15,793
    10% 10.4% 7,971 8,274
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,823
    Calibration 2     79,224
    Calibration 3     78,975
    ssj_ops@calibrated=79,100
    100% 100.0% 79,100 79,118
    90% 89.7% 71,190 70,989
    80% 80.5% 63,280 63,646
    70% 69.6% 55,370 55,021
    60% 59.5% 47,460 47,030
    50% 49.8% 39,550 39,406
    40% 41.0% 31,640 32,427
    30% 29.3% 23,730 23,139
    20% 20.2% 15,820 15,985
    10% 10.3% 7,910 8,170
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,997
    Calibration 2     79,014
    Calibration 3     78,889
    ssj_ops@calibrated=78,951
    100% 99.8% 78,951 78,759
    90% 88.8% 71,056 70,087
    80% 79.2% 63,161 62,559
    70% 69.5% 55,266 54,835
    60% 60.5% 47,371 47,764
    50% 50.3% 39,476 39,710
    40% 40.5% 31,581 31,962
    30% 29.8% 23,685 23,561
    20% 20.1% 15,790 15,880
    10% 9.9% 7,895 7,825
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,071
    Calibration 2     80,404
    Calibration 3     79,575
    ssj_ops@calibrated=79,990
    100% 98.7% 79,990 78,955
    90% 89.8% 71,991 71,851
    80% 80.4% 63,992 64,285
    70% 69.3% 55,993 55,412
    60% 60.2% 47,994 48,120
    50% 49.7% 39,995 39,771
    40% 39.9% 31,996 31,883
    30% 30.0% 23,997 23,982
    20% 20.1% 15,998 16,117
    10% 9.7% 7,999 7,720
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,985
    Calibration 2     78,452
    Calibration 3     78,828
    ssj_ops@calibrated=78,640
    100% 99.6% 78,640 78,311
    90% 90.7% 70,776 71,298
    80% 81.1% 62,912 63,764
    70% 69.4% 55,048 54,545
    60% 60.3% 47,184 47,442
    50% 49.3% 39,320 38,805
    40% 39.7% 31,456 31,189
    30% 30.1% 23,592 23,676
    20% 20.1% 15,728 15,836
    10% 10.1% 7,864 7,914
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,564
    Calibration 2     78,895
    Calibration 3     79,104
    ssj_ops@calibrated=79,000
    100% 99.8% 79,000 78,866
    90% 91.2% 71,100 72,028
    80% 80.6% 63,200 63,676
    70% 70.3% 55,300 55,570
    60% 59.4% 47,400 46,938
    50% 50.4% 39,500 39,820
    40% 41.3% 31,600 32,595
    30% 29.7% 23,700 23,461
    20% 20.8% 15,800 16,460
    10% 10.4% 7,900 8,241
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,736
    Calibration 2     79,482
    Calibration 3     79,535
    ssj_ops@calibrated=79,509
    100% 99.9% 79,509 79,451
    90% 90.4% 71,558 71,915
    80% 80.2% 63,607 63,747
    70% 70.5% 55,656 56,084
    60% 59.1% 47,705 46,993
    50% 49.3% 39,754 39,232
    40% 40.4% 31,803 32,086
    30% 30.1% 23,853 23,905
    20% 20.1% 15,902 15,992
    10% 10.2% 7,951 8,116
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     80,281
    Calibration 2     80,659
    Calibration 3     80,544
    ssj_ops@calibrated=80,602
    100% 99.1% 80,602 79,860
    90% 90.8% 72,542 73,165
    80% 79.6% 64,481 64,121
    70% 69.1% 56,421 55,689
    60% 60.8% 48,361 49,030
    50% 50.0% 40,301 40,263
    40% 41.2% 32,241 33,194
    30% 29.7% 24,181 23,963
    20% 20.9% 16,120 16,818
    10% 10.0% 8,060 8,045
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,998
    Calibration 2     80,469
    Calibration 3     80,916
    ssj_ops@calibrated=80,692
    100% 98.9% 80,692 79,784
    90% 89.2% 72,623 72,010
    80% 80.6% 64,554 65,032
    70% 69.9% 56,485 56,424
    60% 59.2% 48,415 47,787
    50% 49.9% 40,346 40,270
    40% 41.2% 32,277 33,275
    30% 30.0% 24,208 24,203
    20% 20.3% 16,138 16,386
    10% 10.1% 8,069 8,149
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-07.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,374
    Calibration 2     79,182
    Calibration 3     79,388
    ssj_ops@calibrated=79,285
    100% 100.2% 79,285 79,449
    90% 89.4% 71,356 70,875
    80% 79.7% 63,428 63,215
    70% 69.9% 55,499 55,439
    60% 60.1% 47,571 47,654
    50% 48.9% 39,642 38,734
    40% 40.7% 31,714 32,302
    30% 30.1% 23,785 23,894
    20% 19.6% 15,857 15,503
    10% 10.1% 7,928 7,991
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
