Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,262,627
ssj_ops@100% per JVM = 78,914
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,261,268
Calibration 2     1,269,974
Calibration 3     1,267,916
ssj_ops@calibrated=1,268,945
100% 99.5% 1,268,945 1,262,627
90% 89.9% 1,142,051 1,141,266
80% 80.0% 1,015,156 1,014,923
70% 70.1% 888,262 889,603
60% 60.0% 761,367 761,232
50% 50.0% 634,473 635,084
40% 39.8% 507,578 505,380
30% 30.1% 380,684 381,524
20% 20.1% 253,789 255,517
10% 9.8% 126,895 124,788
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-10.001 79,594
    M620-10.002 79,124
    M620-10.003 79,404
    M620-10.004 78,231
    M620-10.005 79,436
    M620-10.006 79,373
    M620-10.007 79,577
    M620-10.008 78,763
    M620-10.009 78,709
    M620-10.010 77,705
    M620-10.011 78,893
    M620-10.012 78,150
    M620-10.013 80,273
    M620-10.014 78,500
    M620-10.015 77,989
    M620-10.016 78,907
    ssj_ops@100% 1,262,627
    ssj_ops@100% per JVM 78,914
    Graph of per-instance results
    JVM 'M620-10.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,563
    Calibration 2     79,976
    Calibration 3     80,149
    ssj_ops@calibrated=80,063
    100% 99.4% 80,063 79,594
    90% 90.2% 72,056 72,188
    80% 80.1% 64,050 64,105
    70% 70.6% 56,044 56,511
    60% 59.5% 48,038 47,634
    50% 49.2% 40,031 39,416
    40% 40.4% 32,025 32,321
    30% 30.3% 24,019 24,234
    20% 20.5% 16,013 16,392
    10% 9.6% 8,006 7,670
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,940
    Calibration 2     80,100
    Calibration 3     79,632
    ssj_ops@calibrated=79,866
    100% 99.1% 79,866 79,124
    90% 89.4% 71,879 71,375
    80% 80.2% 63,893 64,015
    70% 69.4% 55,906 55,413
    60% 61.3% 47,920 48,996
    50% 49.6% 39,933 39,602
    40% 40.4% 31,946 32,280
    30% 29.8% 23,960 23,810
    20% 20.0% 15,973 15,976
    10% 9.7% 7,987 7,737
    Active Idle   0 0

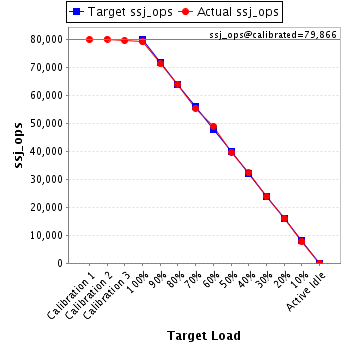

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,581
    Calibration 2     79,190
    Calibration 3     78,996
    ssj_ops@calibrated=79,093
    100% 100.4% 79,093 79,404
    90% 88.7% 71,183 70,133
    80% 78.1% 63,274 61,800
    70% 69.8% 55,365 55,222
    60% 60.1% 47,456 47,551
    50% 49.9% 39,546 39,434
    40% 40.0% 31,637 31,644
    30% 30.6% 23,728 24,178
    20% 20.1% 15,819 15,933
    10% 9.8% 7,909 7,745
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,868
    Calibration 2     78,741
    Calibration 3     78,419
    ssj_ops@calibrated=78,580
    100% 99.6% 78,580 78,231
    90% 89.7% 70,722 70,470
    80% 79.1% 62,864 62,163
    70% 69.6% 55,006 54,685
    60% 60.3% 47,148 47,379
    50% 49.4% 39,290 38,852
    40% 39.4% 31,432 30,992
    30% 30.2% 23,574 23,753
    20% 20.5% 15,716 16,078
    10% 10.1% 7,858 7,924
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,503
    Calibration 2     79,471
    Calibration 3     79,070
    ssj_ops@calibrated=79,271
    100% 100.2% 79,271 79,436
    90% 90.2% 71,344 71,469
    80% 79.3% 63,416 62,884
    70% 70.5% 55,489 55,888
    60% 59.1% 47,562 46,873
    50% 51.0% 39,635 40,395
    40% 40.2% 31,708 31,857
    30% 30.4% 23,781 24,060
    20% 19.7% 15,854 15,645
    10% 9.8% 7,927 7,800
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,142
    Calibration 2     79,491
    Calibration 3     79,720
    ssj_ops@calibrated=79,605
    100% 99.7% 79,605 79,373
    90% 89.5% 71,645 71,259
    80% 80.5% 63,684 64,064
    70% 70.0% 55,724 55,712
    60% 59.5% 47,763 47,396
    50% 50.2% 39,803 39,961
    40% 40.0% 31,842 31,870
    30% 29.4% 23,882 23,389
    20% 20.2% 15,921 16,049
    10% 10.5% 7,961 8,345
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,626
    Calibration 2     79,439
    Calibration 3     79,697
    ssj_ops@calibrated=79,568
    100% 100.0% 79,568 79,577
    90% 89.6% 71,611 71,318
    80% 79.4% 63,654 63,178
    70% 69.6% 55,697 55,357
    60% 59.8% 47,741 47,580
    50% 50.6% 39,784 40,235
    40% 39.5% 31,827 31,436
    30% 29.7% 23,870 23,665
    20% 20.1% 15,914 16,013
    10% 9.9% 7,957 7,879
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,098
    Calibration 2     78,685
    Calibration 3     79,102
    ssj_ops@calibrated=78,894
    100% 99.8% 78,894 78,763
    90% 90.1% 71,004 71,069
    80% 80.2% 63,115 63,270
    70% 70.3% 55,225 55,492
    60% 59.8% 47,336 47,187
    50% 50.7% 39,447 39,992
    40% 40.5% 31,557 31,941
    30% 30.5% 23,668 24,035
    20% 20.1% 15,779 15,839
    10% 9.7% 7,889 7,658
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,715
    Calibration 2     79,699
    Calibration 3     79,445
    ssj_ops@calibrated=79,572
    100% 98.9% 79,572 78,709
    90% 90.9% 71,615 72,306
    80% 80.0% 63,657 63,634
    70% 70.8% 55,700 56,376
    60% 59.5% 47,743 47,335
    50% 50.2% 39,786 39,978
    40% 39.2% 31,829 31,230
    30% 29.9% 23,872 23,795
    20% 20.1% 15,914 15,957
    10% 9.5% 7,957 7,587
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,724
    Calibration 2     79,589
    Calibration 3     79,117
    ssj_ops@calibrated=79,353
    100% 97.9% 79,353 77,705
    90% 90.4% 71,418 71,737
    80% 80.6% 63,482 63,963
    70% 70.7% 55,547 56,124
    60% 59.0% 47,612 46,792
    50% 49.9% 39,676 39,633
    40% 40.0% 31,741 31,721
    30% 29.5% 23,806 23,397
    20% 20.0% 15,871 15,841
    10% 9.7% 7,935 7,725
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,684
    Calibration 2     79,480
    Calibration 3     79,323
    ssj_ops@calibrated=79,402
    100% 99.4% 79,402 78,893
    90% 90.7% 71,461 72,048
    80% 80.9% 63,521 64,197
    70% 69.1% 55,581 54,857
    60% 59.8% 47,641 47,468
    50% 50.7% 39,701 40,264
    40% 40.2% 31,761 31,915
    30% 30.2% 23,820 24,014
    20% 20.0% 15,880 15,870
    10% 10.0% 7,940 7,962
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,104
    Calibration 2     78,360
    Calibration 3     78,539
    ssj_ops@calibrated=78,450
    100% 99.6% 78,450 78,150
    90% 91.3% 70,605 71,586
    80% 80.7% 62,760 63,291
    70% 70.8% 54,915 55,565
    60% 60.2% 47,070 47,261
    50% 50.2% 39,225 39,384
    40% 39.4% 31,380 30,921
    30% 30.3% 23,535 23,794
    20% 19.9% 15,690 15,574
    10% 9.7% 7,845 7,608
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,569
    Calibration 2     79,705
    Calibration 3     79,958
    ssj_ops@calibrated=79,832
    100% 100.6% 79,832 80,273
    90% 90.3% 71,849 72,077
    80% 79.9% 63,865 63,816
    70% 70.7% 55,882 56,406
    60% 60.3% 47,899 48,145
    50% 49.9% 39,916 39,804
    40% 40.0% 31,933 31,912
    30% 29.9% 23,950 23,866
    20% 20.4% 15,966 16,266
    10% 9.8% 7,983 7,857
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,910
    Calibration 2     79,226
    Calibration 3     78,506
    ssj_ops@calibrated=78,866
    100% 99.5% 78,866 78,500
    90% 90.1% 70,979 71,020
    80% 79.7% 63,093 62,830
    70% 70.3% 55,206 55,456
    60% 61.1% 47,319 48,221
    50% 49.7% 39,433 39,162
    40% 39.5% 31,546 31,175
    30% 30.1% 23,660 23,713
    20% 20.1% 15,773 15,884
    10% 9.9% 7,887 7,845
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,827
    Calibration 2     79,145
    Calibration 3     78,578
    ssj_ops@calibrated=78,861
    100% 98.9% 78,861 77,989
    90% 89.1% 70,975 70,288
    80% 80.4% 63,089 63,412
    70% 69.2% 55,203 54,588
    60% 60.1% 47,317 47,385
    50% 50.0% 39,431 39,398
    40% 39.5% 31,545 31,115
    30% 29.4% 23,658 23,166
    20% 20.5% 15,772 16,164
    10% 9.7% 7,886 7,662
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-10.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,415
    Calibration 2     79,680
    Calibration 3     79,665
    ssj_ops@calibrated=79,672
    100% 99.0% 79,672 78,907
    90% 89.0% 71,705 70,921
    80% 80.7% 63,738 64,301
    70% 70.2% 55,771 55,948
    60% 60.3% 47,803 48,031
    50% 49.7% 39,836 39,574
    40% 39.0% 31,869 31,051
    30% 30.9% 23,902 24,657
    20% 20.1% 15,934 16,036
    10% 9.8% 7,967 7,782
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
