Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,265,197
ssj_ops@100% per JVM = 79,075
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,261,069
Calibration 2     1,268,344
Calibration 3     1,271,890
ssj_ops@calibrated=1,270,117
100% 99.6% 1,270,117 1,265,197
90% 89.6% 1,143,105 1,138,284
80% 79.7% 1,016,094 1,012,910
70% 69.7% 889,082 885,369
60% 60.1% 762,070 763,741
50% 49.9% 635,059 633,213
40% 40.0% 508,047 508,659
30% 30.1% 381,035 382,234
20% 19.9% 254,023 253,198
10% 9.9% 127,012 125,991
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-14.001 78,611
    M620-14.002 79,014
    M620-14.003 78,948
    M620-14.004 79,230
    M620-14.005 78,295
    M620-14.006 79,281
    M620-14.007 78,529
    M620-14.008 79,079
    M620-14.009 80,736
    M620-14.010 79,993
    M620-14.011 79,490
    M620-14.012 78,106
    M620-14.013 78,042
    M620-14.014 79,172
    M620-14.015 79,698
    M620-14.016 78,970
    ssj_ops@100% 1,265,197
    ssj_ops@100% per JVM 79,075

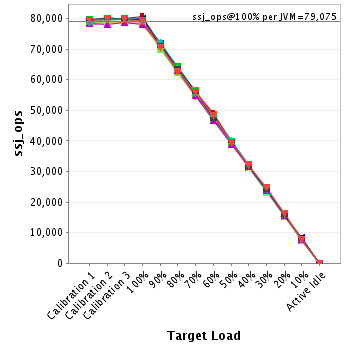

    Graph of per-instance results
    JVM 'M620-14.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,577
    Calibration 2     78,911
    Calibration 3     79,782
    ssj_ops@calibrated=79,346
    100% 99.1% 79,346 78,611
    90% 90.0% 71,412 71,395
    80% 79.5% 63,477 63,094
    70% 71.2% 55,542 56,499
    60% 61.1% 47,608 48,500
    50% 49.3% 39,673 39,136
    40% 40.0% 31,739 31,777
    30% 30.1% 23,804 23,871
    20% 19.9% 15,869 15,766
    10% 9.5% 7,935 7,508
    Active Idle   0 0

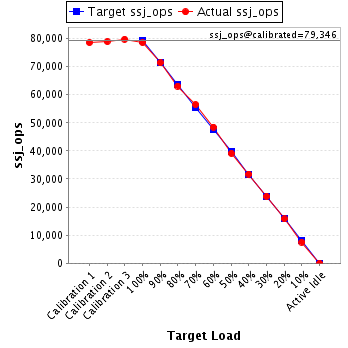

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,573
    Calibration 2     79,192
    Calibration 3     79,166
    ssj_ops@calibrated=79,179
    100% 99.8% 79,179 79,014
    90% 90.0% 71,261 71,227
    80% 79.1% 63,343 62,635
    70% 69.2% 55,425 54,784
    60% 60.2% 47,507 47,661
    50% 50.1% 39,590 39,683
    40% 40.0% 31,672 31,660
    30% 30.1% 23,754 23,868
    20% 20.0% 15,836 15,833
    10% 10.1% 7,918 7,960
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,585
    Calibration 2     78,678
    Calibration 3     79,269
    ssj_ops@calibrated=78,973
    100% 100.0% 78,973 78,948
    90% 88.6% 71,076 69,934
    80% 79.0% 63,179 62,390
    70% 70.0% 55,281 55,319
    60% 59.7% 47,384 47,121
    50% 49.6% 39,487 39,143
    40% 39.7% 31,589 31,378
    30% 29.5% 23,692 23,283
    20% 20.3% 15,795 16,005
    10% 10.0% 7,897 7,926
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,448
    Calibration 2     79,058
    Calibration 3     79,525
    ssj_ops@calibrated=79,292
    100% 99.9% 79,292 79,230
    90% 89.2% 71,363 70,716
    80% 79.4% 63,433 62,961
    70% 68.5% 55,504 54,346
    60% 60.1% 47,575 47,672
    50% 50.0% 39,646 39,629
    40% 39.6% 31,717 31,365
    30% 30.4% 23,788 24,094
    20% 19.7% 15,858 15,641
    10% 10.1% 7,929 7,975
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,116
    Calibration 2     78,423
    Calibration 3     78,879
    ssj_ops@calibrated=78,651
    100% 99.5% 78,651 78,295
    90% 90.0% 70,786 70,766
    80% 80.6% 62,921 63,360
    70% 69.8% 55,056 54,868
    60% 60.0% 47,191 47,160
    50% 50.0% 39,325 39,321
    40% 40.1% 31,460 31,569
    30% 30.2% 23,595 23,763
    20% 20.3% 15,730 15,974
    10% 10.0% 7,865 7,850
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,730
    Calibration 2     78,671
    Calibration 3     79,884
    ssj_ops@calibrated=79,278
    100% 100.0% 79,278 79,281
    90% 90.3% 71,350 71,609
    80% 80.6% 63,422 63,898
    70% 70.0% 55,494 55,484
    60% 60.8% 47,567 48,178
    50% 50.2% 39,639 39,793
    40% 40.2% 31,711 31,875
    30% 29.6% 23,783 23,431
    20% 19.9% 15,856 15,782
    10% 9.9% 7,928 7,833
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,399
    Calibration 2     78,451
    Calibration 3     78,905
    ssj_ops@calibrated=78,678
    100% 99.8% 78,678 78,529
    90% 89.9% 70,810 70,750
    80% 79.3% 62,942 62,383
    70% 69.7% 55,075 54,819
    60% 59.5% 47,207 46,796
    50% 50.1% 39,339 39,456
    40% 39.9% 31,471 31,394
    30% 30.2% 23,603 23,769
    20% 20.0% 15,736 15,724
    10% 10.1% 7,868 7,970
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,477
    Calibration 2     79,944
    Calibration 3     79,931
    ssj_ops@calibrated=79,937
    100% 98.9% 79,937 79,079
    90% 90.2% 71,944 72,133
    80% 79.7% 63,950 63,690
    70% 69.6% 55,956 55,598
    60% 60.6% 47,962 48,469
    50% 50.0% 39,969 39,987
    40% 39.4% 31,975 31,472
    30% 29.6% 23,981 23,685
    20% 19.3% 15,987 15,439
    10% 9.8% 7,994 7,812
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,491
    Calibration 2     80,117
    Calibration 3     80,140
    ssj_ops@calibrated=80,129
    100% 100.8% 80,129 80,736
    90% 88.6% 72,116 70,996
    80% 80.2% 64,103 64,227
    70% 69.8% 56,090 55,929
    60% 60.9% 48,077 48,820
    50% 49.7% 40,064 39,846
    40% 40.0% 32,052 32,071
    30% 30.0% 24,039 24,030
    20% 20.0% 16,026 16,045
    10% 10.0% 8,013 8,012
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,550
    Calibration 2     79,920
    Calibration 3     79,778
    ssj_ops@calibrated=79,849
    100% 100.2% 79,849 79,993
    90% 89.9% 71,864 71,752
    80% 80.3% 63,879 64,079
    70% 68.8% 55,894 54,963
    60% 59.6% 47,909 47,568
    50% 49.6% 39,924 39,597
    40% 40.1% 31,940 31,988
    30% 30.1% 23,955 24,030
    20% 19.3% 15,970 15,415
    10% 10.5% 7,985 8,368
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,761
    Calibration 2     80,089
    Calibration 3     79,906
    ssj_ops@calibrated=79,998
    100% 99.4% 79,998 79,490
    90% 88.6% 71,998 70,917
    80% 80.3% 63,998 64,267
    70% 70.1% 55,998 56,075
    60% 59.9% 47,999 47,879
    50% 49.7% 39,999 39,798
    40% 40.3% 31,999 32,247
    30% 30.0% 23,999 23,996
    20% 20.2% 16,000 16,174
    10% 9.9% 8,000 7,912
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,364
    Calibration 2     79,165
    Calibration 3     78,709
    ssj_ops@calibrated=78,937
    100% 98.9% 78,937 78,106
    90% 89.3% 71,043 70,497
    80% 79.1% 63,149 62,412
    70% 69.0% 55,256 54,503
    60% 60.4% 47,362 47,661
    50% 50.5% 39,468 39,868
    40% 40.7% 31,575 32,122
    30% 30.3% 23,681 23,957
    20% 19.3% 15,787 15,258
    10% 9.4% 7,894 7,412
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,402
    Calibration 2     78,079
    Calibration 3     78,860
    ssj_ops@calibrated=78,469
    100% 99.5% 78,469 78,042
    90% 91.1% 70,622 71,448
    80% 80.2% 62,775 62,957
    70% 69.8% 54,929 54,757
    60% 59.7% 47,082 46,832
    50% 49.4% 39,235 38,740
    40% 40.5% 31,388 31,746
    30% 30.2% 23,541 23,736
    20% 20.0% 15,694 15,730
    10% 10.1% 7,847 7,895
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,805
    Calibration 2     79,637
    Calibration 3     79,581
    ssj_ops@calibrated=79,609
    100% 99.5% 79,609 79,172
    90% 90.5% 71,648 72,022
    80% 80.4% 63,687 63,973
    70% 69.9% 55,726 55,645
    60% 60.3% 47,765 48,010
    50% 50.3% 39,804 40,021
    40% 40.6% 31,844 32,329
    30% 30.2% 23,883 24,039
    20% 20.2% 15,922 16,078
    10% 9.9% 7,961 7,879
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,406
    Calibration 2     80,217
    Calibration 3     79,793
    ssj_ops@calibrated=80,005
    100% 99.6% 80,005 79,698
    90% 89.4% 72,004 71,494
    80% 79.9% 64,004 63,906
    70% 70.1% 56,003 56,099
    60% 59.0% 48,003 47,200
    50% 49.8% 40,002 39,827
    40% 39.5% 32,002 31,573
    30% 30.0% 24,001 24,040
    20% 19.9% 16,001 15,913
    10% 10.1% 8,000 8,070
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-14.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,384
    Calibration 2     79,793
    Calibration 3     79,782
    ssj_ops@calibrated=79,787
    100% 99.0% 79,787 78,970
    90% 88.5% 71,809 70,628
    80% 78.6% 63,830 62,678
    70% 69.8% 55,851 55,680
    60% 60.4% 47,872 48,215
    50% 49.3% 39,894 39,368
    40% 40.2% 31,915 32,092
    30% 30.9% 23,936 24,640
    20% 20.6% 15,957 16,421
    10% 9.5% 7,979 7,608
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
