Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,282,967
ssj_ops@100% per JVM = 80,185
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 21, 2012
Hardware Availability: Mar-2012 Software Availability: Jan-2010 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,233,380
Calibration 2     1,278,759
Calibration 3     1,283,030
ssj_ops@calibrated=1,280,894
100% 100.2% 1,280,894 1,282,967
90% 90.1% 1,152,805 1,153,696
80% 80.3% 1,024,715 1,028,564
70% 69.8% 896,626 893,774
60% 60.1% 768,537 770,436
50% 50.1% 640,447 641,102
40% 40.0% 512,358 512,836
30% 30.1% 384,268 385,809
20% 19.9% 256,179 255,376
10% 10.0% 128,089 128,434
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8 GB
Memory Details: 8GB 2Rx8 PC3L-12800R ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn853m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC00000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B4MJLORFNOP.001 80,393
WIN-B4MJLORFNOP.002 79,889
WIN-B4MJLORFNOP.003 80,475
WIN-B4MJLORFNOP.004 81,414
WIN-B4MJLORFNOP.005 79,956
WIN-B4MJLORFNOP.006 79,582
WIN-B4MJLORFNOP.007 79,850
WIN-B4MJLORFNOP.008 80,125
WIN-B4MJLORFNOP.009 80,382
WIN-B4MJLORFNOP.010 80,969
WIN-B4MJLORFNOP.011 79,117
WIN-B4MJLORFNOP.012 80,193
WIN-B4MJLORFNOP.013 79,701
WIN-B4MJLORFNOP.014 79,881
WIN-B4MJLORFNOP.015 80,072
WIN-B4MJLORFNOP.016 80,968
ssj_ops@100% 1,282,967
ssj_ops@100% per JVM 80,185
Graph of per-instance results
JVM 'WIN-B4MJLORFNOP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,331
Calibration 2     80,061
Calibration 3     80,219
ssj_ops@calibrated=80,140
100% 100.3% 80,140 80,393
90% 90.5% 72,126 72,543
80% 80.2% 64,112 64,271
70% 69.7% 56,098 55,886
60% 60.1% 48,084 48,164
50% 50.2% 40,070 40,262
40% 40.8% 32,056 32,676
30% 29.6% 24,042 23,687
20% 20.2% 16,028 16,160
10% 9.9% 8,014 7,912
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,873
Calibration 2     80,157
Calibration 3     79,785
ssj_ops@calibrated=79,971
100% 99.9% 79,971 79,889
90% 89.6% 71,974 71,671
80% 80.3% 63,977 64,203
70% 69.6% 55,980 55,660
60% 60.8% 47,982 48,638
50% 50.2% 39,985 40,146
40% 39.9% 31,988 31,946
30% 30.2% 23,991 24,141
20% 20.0% 15,994 15,956
10% 10.1% 7,997 8,054
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,499
Calibration 2     80,080
Calibration 3     80,547
ssj_ops@calibrated=80,314
100% 100.2% 80,314 80,475
90% 89.7% 72,283 72,072
80% 80.5% 64,251 64,688
70% 69.8% 56,220 56,030
60% 60.7% 48,188 48,754
50% 50.3% 40,157 40,383
40% 39.9% 32,126 32,025
30% 30.2% 24,094 24,288
20% 20.5% 16,063 16,489
10% 9.9% 8,031 7,973
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,208
Calibration 2     81,034
Calibration 3     80,915
ssj_ops@calibrated=80,974
100% 100.5% 80,974 81,414
90% 91.1% 72,877 73,741
80% 79.5% 64,779 64,381
70% 70.1% 56,682 56,763
60% 59.4% 48,585 48,121
50% 50.4% 40,487 40,818
40% 39.5% 32,390 31,987
30% 30.4% 24,292 24,600
20% 19.6% 16,195 15,862
10% 10.1% 8,097 8,196
Active Idle   0 0
Graph of results

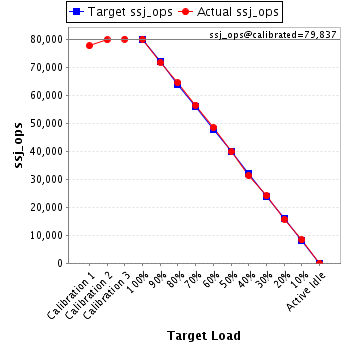

JVM 'WIN-B4MJLORFNOP.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,586
Calibration 2     79,707
Calibration 3     79,967
ssj_ops@calibrated=79,837
100% 100.1% 79,837 79,956
90% 89.8% 71,853 71,676
80% 80.6% 63,870 64,380
70% 70.7% 55,886 56,458
60% 60.6% 47,902 48,373
50% 49.8% 39,919 39,798
40% 39.2% 31,935 31,276
30% 30.1% 23,951 24,053
20% 19.7% 15,967 15,750
10% 10.5% 7,984 8,343
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,931
Calibration 2     79,331
Calibration 3     79,163
ssj_ops@calibrated=79,247
100% 100.4% 79,247 79,582
90% 90.9% 71,323 72,059
80% 80.1% 63,398 63,447
70% 69.7% 55,473 55,211
60% 60.4% 47,548 47,904
50% 50.0% 39,624 39,661
40% 40.3% 31,699 31,926
30% 30.2% 23,774 23,949
20% 19.8% 15,849 15,655
10% 9.9% 7,925 7,829
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,495
Calibration 2     79,553
Calibration 3     79,338
ssj_ops@calibrated=79,445
100% 100.5% 79,445 79,850
90% 90.7% 71,501 72,091
80% 81.4% 63,556 64,674
70% 69.4% 55,612 55,127
60% 60.1% 47,667 47,741
50% 50.4% 39,723 40,059
40% 40.3% 31,778 32,016
30% 29.5% 23,834 23,462
20% 20.1% 15,889 15,995
10% 9.8% 7,945 7,825
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,063
Calibration 2     79,739
Calibration 3     80,080
ssj_ops@calibrated=79,909
100% 100.3% 79,909 80,125
90% 89.8% 71,918 71,741
80% 80.1% 63,927 64,004
70% 69.7% 55,937 55,735
60% 59.6% 47,946 47,591
50% 50.3% 39,955 40,159
40% 39.9% 31,964 31,867
30% 29.8% 23,973 23,821
20% 20.2% 15,982 16,141
10% 10.0% 7,991 7,996
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,648
Calibration 2     79,707
Calibration 3     80,506
ssj_ops@calibrated=80,106
100% 100.3% 80,106 80,382
90% 91.2% 72,096 73,032
80% 79.5% 64,085 63,704
70% 70.3% 56,074 56,313
60% 60.4% 48,064 48,394
50% 49.2% 40,053 39,422
40% 40.3% 32,043 32,253
30% 30.7% 24,032 24,610
20% 19.5% 16,021 15,612
10% 10.0% 8,011 8,004
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,311
Calibration 2     80,472
Calibration 3     80,982
ssj_ops@calibrated=80,727
100% 100.3% 80,727 80,969
90% 89.6% 72,654 72,301
80% 80.0% 64,582 64,592
70% 69.8% 56,509 56,346
60% 60.0% 48,436 48,437
50% 49.7% 40,364 40,139
40% 40.8% 32,291 32,905
30% 30.1% 24,218 24,306
20% 20.1% 16,145 16,216
10% 9.9% 8,073 8,025
Active Idle   0 0
Graph of results

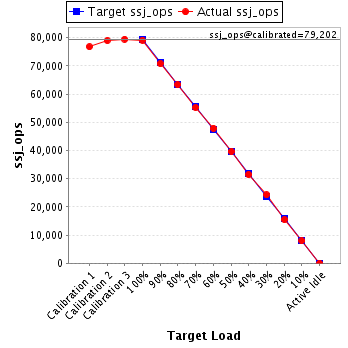

JVM 'WIN-B4MJLORFNOP.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,733
Calibration 2     78,949
Calibration 3     79,455
ssj_ops@calibrated=79,202
100% 99.9% 79,202 79,117
90% 89.3% 71,282 70,750
80% 79.9% 63,362 63,308
70% 69.7% 55,442 55,223
60% 60.4% 47,521 47,867
50% 50.1% 39,601 39,641
40% 39.7% 31,681 31,453
30% 30.6% 23,761 24,239
20% 19.5% 15,840 15,444
10% 10.1% 7,920 7,971
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,171
Calibration 2     80,736
Calibration 3     80,666
ssj_ops@calibrated=80,701
100% 99.4% 80,701 80,193
90% 89.9% 72,631 72,523
80% 80.4% 64,561 64,883
70% 70.5% 56,491 56,864
60% 60.2% 48,420 48,599
50% 50.5% 40,350 40,735
40% 40.1% 32,280 32,330
30% 30.0% 24,210 24,245
20% 19.9% 16,140 16,039
10% 9.9% 8,070 7,971
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,203
Calibration 2     79,030
Calibration 3     79,832
ssj_ops@calibrated=79,431
100% 100.3% 79,431 79,701
90% 90.6% 71,488 71,963
80% 80.1% 63,545 63,635
70% 69.9% 55,602 55,484
60% 59.5% 47,658 47,269
50% 50.0% 39,715 39,710
40% 40.2% 31,772 31,949
30% 30.3% 23,829 24,082
20% 19.8% 15,886 15,734
10% 10.0% 7,943 7,941
Active Idle   0 0
Graph of results
JVM 'WIN-B4MJLORFNOP.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,488
Calibration 2     79,507
Calibration 3     80,185
ssj_ops@calibrated=79,846
100% 100.0% 79,846 79,881
90% 89.9% 71,861 71,813
80% 80.5% 63,877 64,286
70% 69.0% 55,892 55,109
60% 59.2% 47,908 47,272
50% 50.5% 39,923 40,325
40% 40.6% 31,938 32,441
30% 29.9% 23,954 23,894
20% 20.1% 15,969 16,087
10% 10.4% 7,985 8,335
Active Idle   0 0
Graph of results

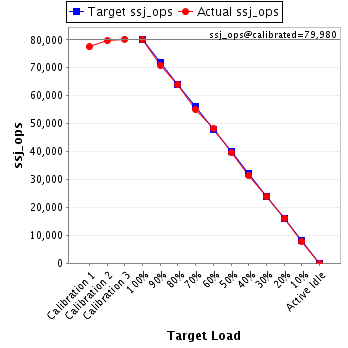

JVM 'WIN-B4MJLORFNOP.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,480
Calibration 2     79,699
Calibration 3     80,260
ssj_ops@calibrated=79,980
100% 100.1% 79,980 80,072
90% 88.7% 71,982 70,940
80% 80.0% 63,984 64,003
70% 68.9% 55,986 55,103
60% 60.2% 47,988 48,159
50% 49.5% 39,990 39,553
40% 39.4% 31,992 31,520
30% 29.7% 23,994 23,761
20% 20.1% 15,996 16,100
10% 9.9% 7,998 7,902
Active Idle   0 0
Graph of results

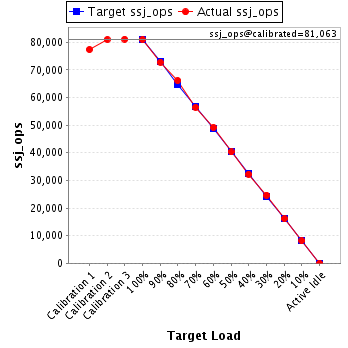

JVM 'WIN-B4MJLORFNOP.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,359
Calibration 2     80,997
Calibration 3     81,129
ssj_ops@calibrated=81,063
100% 99.9% 81,063 80,968
90% 89.8% 72,957 72,780
80% 81.5% 64,851 66,103
70% 69.7% 56,744 56,462
60% 60.6% 48,638 49,153
50% 49.7% 40,532 40,290
40% 39.8% 32,425 32,266
30% 30.4% 24,319 24,671
20% 19.9% 16,213 16,135
10% 10.1% 8,106 8,158
Active Idle   0 0
Graph of results
