Dell Inc. PowerEdge T620 (Intel Xeon E5-2660, 2.2 GHz) ssj_ops@100% = 1,316,689
ssj_ops@100% per JVM = 82,293
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 27, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,323,061
Calibration 2     1,328,231
Calibration 3     1,331,225
ssj_ops@calibrated=1,329,728
100% 99.0% 1,329,728 1,316,689
90% 89.5% 1,196,755 1,190,231
80% 80.4% 1,063,782 1,069,756
70% 70.3% 930,810 934,620
60% 60.0% 797,837 797,312
50% 49.9% 664,864 662,871
40% 40.0% 531,891 532,049
30% 30.0% 398,918 398,893
20% 20.1% 265,946 266,906
10% 10.0% 132,973 133,010
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge T620 (Intel Xeon E5-2660, 2.2 GHz)
Form Factor: Tower
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3, B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 495
Power Supply Details: Dell P/N 13MD5
Disk Drive: 1 x 100 GB SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual Port Intel I350 Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode set in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XXInitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.2.1
Management Firmware Version: 1.06.06 (build 15)
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • QPI speed set to 6.4 GT/s
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to off
  • System Profile set to Custom
  • CPU Power Management set to System DBPM (DAPC)
  • Memory Frequency set to 1333MHz
  • Intel Turbo Boost enabled
  • Memory Patrol Scrub set to disabled
  • Memory Refresh Rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    OrcaPT-Power.001 82,361
    OrcaPT-Power.002 81,839
    OrcaPT-Power.003 81,819
    OrcaPT-Power.004 83,467
    OrcaPT-Power.005 82,345
    OrcaPT-Power.006 80,920
    OrcaPT-Power.007 82,150
    OrcaPT-Power.008 83,117
    OrcaPT-Power.009 82,440
    OrcaPT-Power.010 82,153
    OrcaPT-Power.011 83,593
    OrcaPT-Power.012 82,132
    OrcaPT-Power.013 81,823
    OrcaPT-Power.014 82,170
    OrcaPT-Power.015 81,842
    OrcaPT-Power.016 82,518
    ssj_ops@100% 1,316,689
    ssj_ops@100% per JVM 82,293

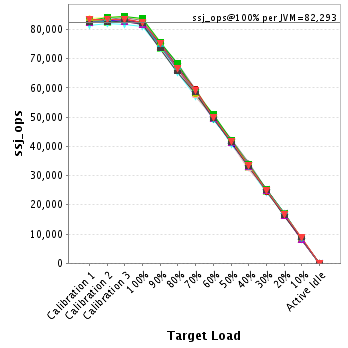

    Graph of per-instance results
    JVM 'OrcaPT-Power.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,446
    Calibration 2     82,588
    Calibration 3     83,597
    ssj_ops@calibrated=83,092
    100% 99.1% 83,092 82,361
    90% 90.0% 74,783 74,752
    80% 81.2% 66,474 67,510
    70% 69.9% 58,165 58,066
    60% 60.3% 49,855 50,087
    50% 49.7% 41,546 41,287
    40% 40.0% 33,237 33,225
    30% 30.3% 24,928 25,186
    20% 19.9% 16,618 16,495
    10% 9.8% 8,309 8,102
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,902
    Calibration 2     83,452
    Calibration 3     83,233
    ssj_ops@calibrated=83,342
    100% 98.2% 83,342 81,839
    90% 88.3% 75,008 73,561
    80% 80.8% 66,674 67,310
    70% 70.3% 58,339 58,574
    60% 59.4% 50,005 49,492
    50% 49.4% 41,671 41,210
    40% 40.2% 33,337 33,509
    30% 29.9% 25,003 24,910
    20% 19.8% 16,668 16,491
    10% 9.9% 8,334 8,245
    Active Idle   0 0

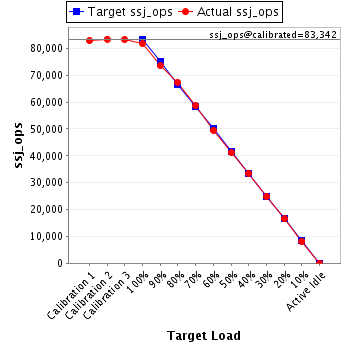

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,582
    Calibration 2     82,499
    Calibration 3     82,656
    ssj_ops@calibrated=82,578
    100% 99.1% 82,578 81,819
    90% 89.0% 74,320 73,501
    80% 81.2% 66,062 67,063
    70% 70.5% 57,804 58,223
    60% 60.5% 49,547 49,979
    50% 50.1% 41,289 41,344
    40% 39.7% 33,031 32,762
    30% 29.6% 24,773 24,481
    20% 19.7% 16,516 16,267
    10% 9.7% 8,258 8,006
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     83,601
    Calibration 2     84,026
    Calibration 3     84,251
    ssj_ops@calibrated=84,138
    100% 99.2% 84,138 83,467
    90% 89.9% 75,725 75,655
    80% 79.6% 67,311 66,949
    70% 70.6% 58,897 59,442
    60% 60.2% 50,483 50,675
    50% 50.0% 42,069 42,102
    40% 40.1% 33,655 33,739
    30% 29.8% 25,242 25,102
    20% 20.3% 16,828 17,097
    10% 10.0% 8,414 8,453
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,545
    Calibration 2     82,962
    Calibration 3     83,039
    ssj_ops@calibrated=83,001
    100% 99.2% 83,001 82,345
    90% 90.0% 74,701 74,734
    80% 80.6% 66,401 66,934
    70% 69.6% 58,101 57,742
    60% 59.1% 49,800 49,049
    50% 50.4% 41,500 41,865
    40% 39.5% 33,200 32,770
    30% 30.3% 24,900 25,148
    20% 20.1% 16,600 16,670
    10% 10.4% 8,300 8,608
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,495
    Calibration 2     81,891
    Calibration 3     81,654
    ssj_ops@calibrated=81,772
    100% 99.0% 81,772 80,920
    90% 89.8% 73,595 73,446
    80% 79.8% 65,418 65,265
    70% 69.9% 57,241 57,161
    60% 61.0% 49,063 49,917
    50% 49.9% 40,886 40,765
    40% 39.9% 32,709 32,652
    30% 29.6% 24,532 24,184
    20% 20.5% 16,354 16,739
    10% 9.9% 8,177 8,083
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,500
    Calibration 2     82,809
    Calibration 3     82,661
    ssj_ops@calibrated=82,735
    100% 99.3% 82,735 82,150
    90% 88.8% 74,462 73,447
    80% 80.3% 66,188 66,457
    70% 69.0% 57,915 57,050
    60% 60.3% 49,641 49,893
    50% 49.5% 41,368 40,947
    40% 38.9% 33,094 32,157
    30% 30.7% 24,821 25,392
    20% 19.9% 16,547 16,449
    10% 10.0% 8,274 8,250
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,610
    Calibration 2     83,498
    Calibration 3     84,150
    ssj_ops@calibrated=83,824
    100% 99.2% 83,824 83,117
    90% 89.6% 75,441 75,131
    80% 81.4% 67,059 68,258
    70% 70.8% 58,677 59,330
    60% 59.9% 50,294 50,242
    50% 50.5% 41,912 42,290
    40% 41.2% 33,529 34,566
    30% 30.1% 25,147 25,233
    20% 20.0% 16,765 16,775
    10% 10.0% 8,382 8,420
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     83,379
    Calibration 2     83,331
    Calibration 3     83,319
    ssj_ops@calibrated=83,325
    100% 98.9% 83,325 82,440
    90% 89.4% 74,992 74,493
    80% 80.4% 66,660 66,967
    70% 71.4% 58,327 59,508
    60% 59.3% 49,995 49,447
    50% 49.4% 41,662 41,179
    40% 40.0% 33,330 33,337
    30% 29.5% 24,997 24,607
    20% 20.1% 16,665 16,753
    10% 9.8% 8,332 8,195
    Active Idle   0 0

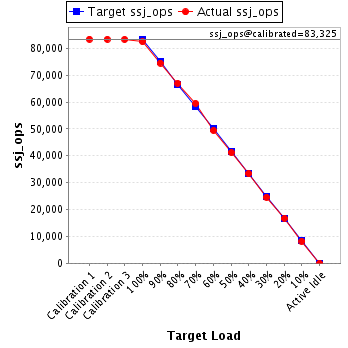

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,317
    Calibration 2     83,059
    Calibration 3     83,464
    ssj_ops@calibrated=83,261
    100% 98.7% 83,261 82,153
    90% 90.3% 74,935 75,169
    80% 80.6% 66,609 67,113
    70% 70.5% 58,283 58,738
    60% 60.2% 49,957 50,158
    50% 49.2% 41,631 40,993
    40% 40.3% 33,305 33,551
    30% 30.4% 24,978 25,299
    20% 20.4% 16,652 17,012
    10% 9.9% 8,326 8,212
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     83,182
    Calibration 2     84,050
    Calibration 3     84,469
    ssj_ops@calibrated=84,260
    100% 99.2% 84,260 83,593
    90% 89.8% 75,834 75,684
    80% 81.0% 67,408 68,286
    70% 69.2% 58,982 58,326
    60% 60.6% 50,556 51,042
    50% 49.8% 42,130 41,975
    40% 40.2% 33,704 33,889
    30% 30.1% 25,278 25,336
    20% 20.4% 16,852 17,182
    10% 10.0% 8,426 8,450
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,891
    Calibration 2     82,733
    Calibration 3     82,852
    ssj_ops@calibrated=82,792
    100% 99.2% 82,792 82,132
    90% 89.8% 74,513 74,321
    80% 80.5% 66,234 66,641
    70% 69.9% 57,955 57,913
    60% 59.6% 49,675 49,356
    50% 49.8% 41,396 41,202
    40% 40.2% 33,117 33,318
    30% 30.0% 24,838 24,802
    20% 20.5% 16,558 16,941
    10% 9.9% 8,279 8,157
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,450
    Calibration 2     82,814
    Calibration 3     82,690
    ssj_ops@calibrated=82,752
    100% 98.9% 82,752 81,823
    90% 89.4% 74,477 74,011
    80% 80.2% 66,202 66,364
    70% 71.1% 57,926 58,840
    60% 59.8% 49,651 49,446
    50% 50.0% 41,376 41,408
    40% 39.9% 33,101 32,983
    30% 30.0% 24,826 24,814
    20% 19.6% 16,550 16,184
    10% 10.0% 8,275 8,262
    Active Idle   0 0

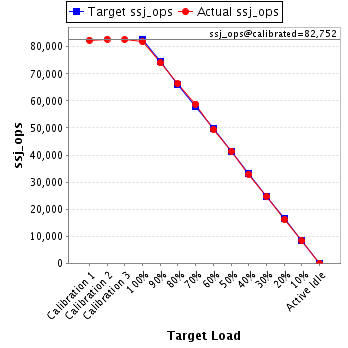

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,488
    Calibration 2     82,733
    Calibration 3     82,830
    ssj_ops@calibrated=82,782
    100% 99.3% 82,782 82,170
    90% 89.5% 74,504 74,048
    80% 80.6% 66,225 66,760
    70% 70.8% 57,947 58,626
    60% 59.5% 49,669 49,240
    50% 49.9% 41,391 41,294
    40% 39.9% 33,113 33,044
    30% 30.0% 24,835 24,826
    20% 20.4% 16,556 16,924
    10% 10.2% 8,278 8,404
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,337
    Calibration 2     82,238
    Calibration 3     82,927
    ssj_ops@calibrated=82,582
    100% 99.1% 82,582 81,842
    90% 88.6% 74,324 73,142
    80% 79.1% 66,066 65,363
    70% 70.3% 57,808 58,093
    60% 59.9% 49,549 49,499
    50% 49.9% 41,291 41,233
    40% 40.0% 33,033 33,019
    30% 29.9% 24,775 24,731
    20% 19.5% 16,516 16,141
    10% 10.3% 8,258 8,489
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     83,336
    Calibration 2     83,549
    Calibration 3     83,434
    ssj_ops@calibrated=83,491
    100% 98.8% 83,491 82,518
    90% 90.0% 75,142 75,136
    80% 79.7% 66,793 66,516
    70% 70.6% 58,444 58,986
    60% 59.6% 50,095 49,789
    50% 50.0% 41,746 41,776
    40% 40.2% 33,396 33,527
    30% 29.8% 25,047 24,843
    20% 20.1% 16,698 16,786
    10% 10.4% 8,349 8,675
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
