Fujitsu PRIMERGY RX100 S7p (Intel Xeon E3-1265LV2) ssj_ops@100% = 416,999
ssj_ops@100% per JVM = 104,250
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: May 2, 2012
Hardware Availability: May-2012 Software Availability: Feb-2012 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     417,227
Calibration 2     417,078
Calibration 3     416,943
ssj_ops@calibrated=417,011
100% 100.0% 417,011 416,999
90% 90.3% 375,310 376,482
80% 79.6% 333,609 331,804
70% 69.5% 291,908 289,687
60% 60.1% 250,206 250,449
50% 49.8% 208,505 207,818
40% 39.9% 166,804 166,264
30% 30.1% 125,103 125,426
20% 19.8% 83,402 82,761
10% 9.9% 41,701 41,199
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX100 S7p'
Set Identifier: RX100 S7p
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S7p (Intel Xeon E3-1265LV2)
Form Factor: 1U
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-12800E ECC CL11; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Fujitsu Technology Solutions S26113-E577-V70-01
Disk Drive: 1 x 32GB, SSD, 2.5" SATA, S26361-F3298-E320
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L and 1 x Intel 82579LM Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise with SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_31
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x03,0x0C,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.7.0
Management Firmware Version: 6.50A
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-RPMHJC10L3A.001 103,891
WIN-RPMHJC10L3A.002 104,456
WIN-RPMHJC10L3A.003 105,324
WIN-RPMHJC10L3A.004 103,327
ssj_ops@100% 416,999
ssj_ops@100% per JVM 104,250

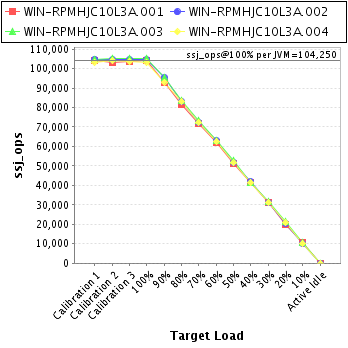

Graph of per-instance results
JVM 'WIN-RPMHJC10L3A.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,212
Calibration 2     103,240
Calibration 3     103,774
ssj_ops@calibrated=103,507
100% 100.4% 103,507 103,891
90% 89.7% 93,157 92,801
80% 79.0% 82,806 81,769
70% 69.3% 72,455 71,717
60% 59.9% 62,104 62,036
50% 49.7% 51,754 51,474
40% 40.1% 41,403 41,497
30% 30.4% 31,052 31,456
20% 19.4% 20,701 20,108
10% 10.2% 10,351 10,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPMHJC10L3A.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,863
Calibration 2     104,462
Calibration 3     104,498
ssj_ops@calibrated=104,480
100% 100.0% 104,480 104,456
90% 91.3% 94,032 95,398
80% 79.7% 83,584 83,241
70% 69.3% 73,136 72,423
60% 60.2% 62,688 62,865
50% 49.8% 52,240 51,981
40% 40.0% 41,792 41,789
30% 29.8% 31,344 31,133
20% 19.7% 20,896 20,604
10% 9.5% 10,448 9,937
Active Idle   0 0

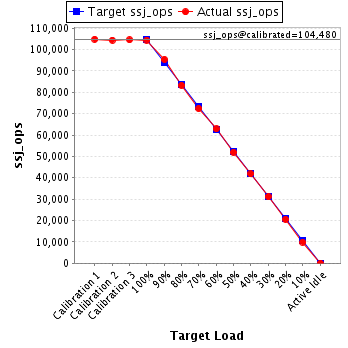

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPMHJC10L3A.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,858
Calibration 2     105,328
Calibration 3     105,179
ssj_ops@calibrated=105,253
100% 100.1% 105,253 105,324
90% 90.5% 94,728 95,218
80% 79.4% 84,203 83,528
70% 69.5% 73,677 73,171
60% 59.8% 63,152 62,973
50% 50.2% 52,627 52,843
40% 39.6% 42,101 41,718
30% 30.0% 31,576 31,623
20% 20.3% 21,051 21,333
10% 10.0% 10,525 10,571
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPMHJC10L3A.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,294
Calibration 2     104,049
Calibration 3     103,491
ssj_ops@calibrated=103,770
100% 99.6% 103,770 103,327
90% 89.7% 93,393 93,064
80% 80.2% 83,016 83,267
70% 69.7% 72,639 72,376
60% 60.3% 62,262 62,575
50% 49.6% 51,885 51,520
40% 39.8% 41,508 41,260
30% 30.1% 31,131 31,213
20% 20.0% 20,754 20,716
10% 9.8% 10,377 10,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
