Fujitsu PRIMERGY TX120 S3p (Intel Xeon E3-1265LV2) SPECpower_ssj2008 = 6,109 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: May 1, 2012
Hardware Availability: May-2012 Software Availability: Feb-2012 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 55.2 20.8
Calibration 2 56.1 20.7
Calibration 3 56.2 20.7
100% 56.2 20.6
90% 53.4 20.6
80% 49.1 20.5
70% 39.8 20.5
60% 35.2 20.4
50% 31.9 20.4
40% 28.9 20.4
30% 26.1 20.4
20% 23.3 20.3
10% 19.9 20.3
Active Idle 15.7 20.2

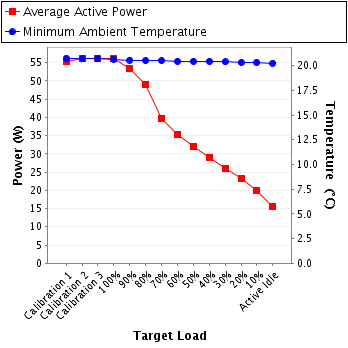

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11080967
Date of Calibration: 03-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 232 250.0 0.296 0.6 0.806 55.2 0.2%
Calibration 2 232 250.0 0.299 0.6 0.811 56.1 0.1%
Calibration 3 232 250.0 0.299 0.6 0.810 56.2 0.1%
100% 232 250.0 0.299 0.6 0.812 56.2 0.1%
90% 231 250.0 0.289 0.6 0.800 53.4 0.2%
80% 231 250.0 0.273 0.6 0.779 49.1 0.2%
70% 231 250.0 0.238 0.6 0.729 39.8 0.2%
60% 231 250.0 0.226 0.6 0.688 35.2 0.2%
50% 230 250.0 0.239 0.6 0.590 31.9 0.3%
40% 230 250.0 0.244 0.6 0.516 28.9 0.3%
30% 230 250.0 0.239 0.6 0.475 26.1 0.3%
20% 230 250.0 0.233 0.6 0.436 23.3 0.3%
10% 230 250.0 0.219 0.6 0.395 19.9 0.4%
Active Idle 230 250.0 0.204 0.6 0.334 15.7 0.5%
Power details for pwr1
