Huawei Technologies Co., Ltd RH2285 V2 SPECpower_ssj2008 = 5,052 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: May 10, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 1,328,249 249 5,336
90% 89.4% 1,189,740 212 5,622
80% 79.7% 1,060,085 177 5,992
70% 70.1% 932,987 153 6,103
60% 60.0% 799,022 132 6,062
50% 49.8% 662,924 114 5,834
40% 40.0% 531,986 103 5,160
30% 30.0% 399,643 93.9 4,256
20% 20.0% 265,599 84.5 3,144
10% 9.9% 131,915 75.1 1,756
Active Idle 0 53.0 0
∑ssj_ops / ∑power = 5,052

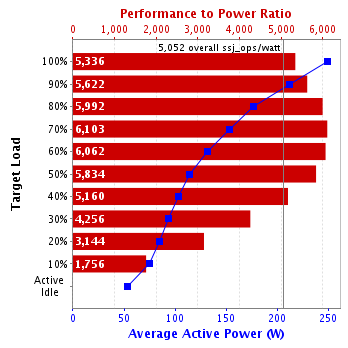

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2285 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8-Core, 2.30 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: V018
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal RH2280 Rack Server
CPU Description: Intel Xeon 5205
Memory amount (GB): 6
Software
Operating System (OS): Microsoft Windows Server 2003 SP2
JVM Vendor: Oracle
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K630156
Connectivity: COM
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B11004997-0007
Date of Calibration: 20-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 249 22.6
90% 212 22.6
80% 177 22.7
70% 153 22.8
60% 132 22.8
50% 114 22.9
40% 103 22.9
30% 93.9 22.9
20% 84.5 23.0
10% 75.1 23.0
Active Idle 53.0 22.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.6 101
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,329,983
Calibration 2     1,332,017
Calibration 3     1,329,503
ssj_ops@calibrated=1,330,760
100% 99.8% 1,330,760 1,328,249
90% 89.4% 1,197,684 1,189,740
80% 79.7% 1,064,608 1,060,085
70% 70.1% 931,532 932,987
60% 60.0% 798,456 799,022
50% 49.8% 665,380 662,924
40% 40.0% 532,304 531,986
30% 30.0% 399,228 399,643
20% 20.0% 266,152 265,599
10% 9.9% 133,076 131,915
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
