SPECpower_ssj2008 Host 'WIN-DR82N3O3GPD' Performance Report

SPECpower_ssj2008

Host 'WIN-DR82N3O3GPD' Performance Report

Huawei Technologies Co., Ltd RH2285 V2			ssj_ops@100% = 1,254,329 ssj_ops@100% per JVM = 156,791
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	May 10, 2012
Hardware Availability:	May-2012	Software Availability:	Dec-2011	Publication:	May 30, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,257,192
Calibration 2			1,258,258
Calibration 3			1,253,712
ssj_ops@calibrated=1,255,985
100%	99.9%	1,255,985	1,254,329
90%	90.1%	1,130,386	1,131,822
80%	79.6%	1,004,788	999,988
70%	69.8%	879,189	876,925
60%	60.1%	753,591	754,640
50%	50.1%	627,992	628,770
40%	40.2%	502,394	504,532
30%	29.9%	376,795	376,008
20%	20.1%	251,197	251,919
10%	10.0%	125,598	125,706
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	RH2285 V2
Form Factor:	2U
CPU Name:	Intel Xeon E5-2450
CPU Characteristics:	8-Core, 2.10 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.9 GHz)
CPU Frequency (MHz):	2100
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	4 x 4 GB
Memory Details:	4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W):	1 x 460
Power Supply Details:	Huawei P/N PW98080438
Disk Drive:	1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version:	R2 SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances:	8
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	V018
Management Firmware Version:	3.02
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Hardware prefetcher -disabled.
Adjacent Cache Line Prefetch -disabled.
DCU Streamer Prefetcher -disabled.
Intel HT Technology -enabled.
Turbo mode -enabled.
C-state -enabled.
Power Mode -Efficiency.
QPI Link Speed -6.4GT/s.
Memory Frequency Limit -1333MHz.
Demand Scrubbing -disabled.
USB configuration EHCI 2 -disabled.

Management Firmware Settings

none

System Under Test Notes

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to four logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

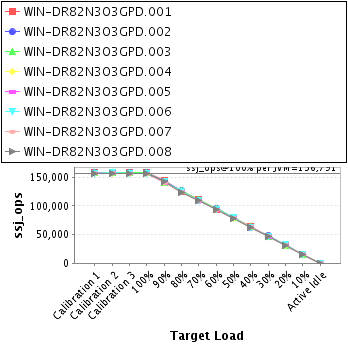

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-DR82N3O3GPD.001	158,054
WIN-DR82N3O3GPD.002	157,934
WIN-DR82N3O3GPD.003	157,751
WIN-DR82N3O3GPD.004	155,620
WIN-DR82N3O3GPD.005	156,673
WIN-DR82N3O3GPD.006	156,065
WIN-DR82N3O3GPD.007	155,730
WIN-DR82N3O3GPD.008	156,503
ssj_ops@100%	1,254,329
ssj_ops@100% per JVM	156,791

JVM 'WIN-DR82N3O3GPD.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			158,378
Calibration 2			158,400
Calibration 3			158,436
ssj_ops@calibrated=158,418
100%	99.8%	158,418	158,054
90%	90.8%	142,576	143,892
80%	79.2%	126,734	125,409
70%	69.9%	110,893	110,723
60%	59.4%	95,051	94,149
50%	50.0%	79,209	79,185
40%	40.5%	63,367	64,219
30%	29.7%	47,525	47,011
20%	20.1%	31,684	31,804
10%	10.0%	15,842	15,817
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			158,160
Calibration 2			157,568
Calibration 3			157,363
ssj_ops@calibrated=157,466
100%	100.3%	157,466	157,934
90%	90.0%	141,719	141,701
80%	80.1%	125,973	126,080
70%	69.6%	110,226	109,548
60%	60.9%	94,479	95,831
50%	50.1%	78,733	78,823
40%	39.9%	62,986	62,841
30%	30.5%	47,240	48,011
20%	19.9%	31,493	31,287
10%	9.7%	15,747	15,317
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			157,931
Calibration 2			158,247
Calibration 3			157,437
ssj_ops@calibrated=157,842
100%	99.9%	157,842	157,751
90%	89.2%	142,058	140,741
80%	79.9%	126,274	126,059
70%	70.2%	110,489	110,840
60%	60.6%	94,705	95,593
50%	50.2%	78,921	79,277
40%	40.1%	63,137	63,322
30%	29.9%	47,353	47,165
20%	20.1%	31,568	31,662
10%	10.0%	15,784	15,762
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			155,976
Calibration 2			156,668
Calibration 3			155,520
ssj_ops@calibrated=156,094
100%	99.7%	156,094	155,620
90%	90.1%	140,485	140,674
80%	79.8%	124,875	124,640
70%	69.7%	109,266	108,860
60%	60.1%	93,656	93,805
50%	49.8%	78,047	77,788
40%	39.8%	62,438	62,120
30%	30.1%	46,828	46,926
20%	20.1%	31,219	31,411
10%	10.1%	15,609	15,747
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			157,674
Calibration 2			156,744
Calibration 3			156,727
ssj_ops@calibrated=156,735
100%	100.0%	156,735	156,673
90%	89.6%	141,062	140,407
80%	79.9%	125,388	125,283
70%	69.7%	109,715	109,219
60%	59.6%	94,041	93,480
50%	50.2%	78,368	78,641
40%	40.4%	62,694	63,278
30%	29.7%	47,021	46,499
20%	20.0%	31,347	31,367
10%	10.1%	15,674	15,773
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			156,428
Calibration 2			157,208
Calibration 3			156,293
ssj_ops@calibrated=156,751
100%	99.6%	156,751	156,065
90%	90.3%	141,076	141,564
80%	79.7%	125,400	125,000
70%	69.8%	109,725	109,379
60%	60.3%	94,050	94,460
50%	50.4%	78,375	79,064
40%	40.0%	62,700	62,717
30%	29.6%	47,025	46,332
20%	20.4%	31,350	31,935
10%	10.0%	15,675	15,676
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			156,412
Calibration 2			156,445
Calibration 3			155,907
ssj_ops@calibrated=156,176
100%	99.7%	156,176	155,730
90%	89.9%	140,558	140,368
80%	79.3%	124,941	123,892
70%	69.6%	109,323	108,690
60%	59.8%	93,706	93,376
50%	50.1%	78,088	78,184
40%	40.5%	62,470	63,202
30%	29.9%	46,853	46,715
20%	20.1%	31,235	31,460
10%	10.2%	15,618	15,992
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			156,233
Calibration 2			156,978
Calibration 3			156,029
ssj_ops@calibrated=156,504
100%	100.0%	156,504	156,503
90%	91.0%	140,853	142,474
80%	79.0%	125,203	123,625
70%	70.1%	109,552	109,667
60%	60.0%	93,902	93,945
50%	49.7%	78,252	77,807
40%	40.1%	62,601	62,834
30%	30.3%	46,951	47,350
20%	19.8%	31,301	30,993
10%	10.0%	15,650	15,623
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
