Acer Incorporated Acer AR585 F1 ssj_ops@100% = 2,220,373
ssj_ops@100% per JVM = 138,773
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 23, 2012
Hardware Availability: Sep-2011 Software Availability: Jun-2011 Publication: Jun 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,196,704
Calibration 2     2,228,884
Calibration 3     2,227,254
ssj_ops@calibrated=2,228,069
100% 99.7% 2,228,069 2,220,373
90% 90.0% 2,005,262 2,005,083
80% 80.0% 1,782,455 1,782,011
70% 70.0% 1,559,648 1,559,834
60% 59.9% 1,336,841 1,334,467
50% 50.0% 1,114,034 1,113,292
40% 40.1% 891,228 892,814
30% 29.9% 668,421 666,869
20% 19.9% 445,614 443,958
10% 10.0% 222,807 223,066
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6276
CPU Characteristics: 16 cores, 2.30 GHz (AMD Turbo CORE technology up to 3.2 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 32 x 8192 MB
Memory Details: 8GB 2Rx4 PC3-10600R; slots 1A, 1B, 2A, 2B, 3A, 3B, 4A and 4B are populated for each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 2 x 300GB SAS 15K RPM 3.5" HDD, Acer part #KH.300W1.025
Disk Controller: Flex IO USAS2H8iR add-on SAS RAID controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20110619_85080 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P6T0
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • Fan Speed Control Modes: Engery Saving /ES
    • Management Firmware Settings
    None
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    WIN-KK33POLHKCU.001 139,211
    WIN-KK33POLHKCU.002 137,508
    WIN-KK33POLHKCU.003 139,265
    WIN-KK33POLHKCU.004 139,599
    WIN-KK33POLHKCU.005 140,875
    WIN-KK33POLHKCU.006 137,358
    WIN-KK33POLHKCU.007 139,731
    WIN-KK33POLHKCU.008 137,398
    WIN-KK33POLHKCU.009 138,929
    WIN-KK33POLHKCU.010 139,775
    WIN-KK33POLHKCU.011 137,659
    WIN-KK33POLHKCU.012 139,178
    WIN-KK33POLHKCU.013 139,232
    WIN-KK33POLHKCU.014 138,198
    WIN-KK33POLHKCU.015 139,368
    WIN-KK33POLHKCU.016 137,088
    ssj_ops@100% 2,220,373
    ssj_ops@100% per JVM 138,773

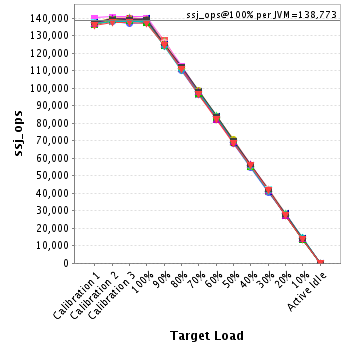

    Graph of per-instance results
    JVM 'WIN-KK33POLHKCU.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,859
    Calibration 2     139,766
    Calibration 3     139,355
    ssj_ops@calibrated=139,561
    100% 99.7% 139,561 139,211
    90% 91.4% 125,605 127,551
    80% 80.2% 111,649 111,995
    70% 69.4% 97,693 96,913
    60% 59.6% 83,737 83,145
    50% 50.1% 69,780 69,855
    40% 40.1% 55,824 56,009
    30% 29.9% 41,868 41,672
    20% 19.8% 27,912 27,685
    10% 10.1% 13,956 14,045
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     138,192
    Calibration 2     138,295
    Calibration 3     137,184
    ssj_ops@calibrated=137,740
    100% 99.8% 137,740 137,508
    90% 90.7% 123,966 124,876
    80% 80.1% 110,192 110,386
    70% 70.1% 96,418 96,603
    60% 60.5% 82,644 83,378
    50% 49.7% 68,870 68,412
    40% 39.8% 55,096 54,794
    30% 29.5% 41,322 40,668
    20% 20.3% 27,548 27,970
    10% 9.8% 13,774 13,491
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,034
    Calibration 2     139,887
    Calibration 3     140,171
    ssj_ops@calibrated=140,029
    100% 99.5% 140,029 139,265
    90% 90.3% 126,026 126,441
    80% 79.5% 112,023 111,284
    70% 69.6% 98,020 97,463
    60% 60.4% 84,017 84,583
    50% 49.4% 70,014 69,180
    40% 39.6% 56,012 55,493
    30% 30.3% 42,009 42,436
    20% 20.2% 28,006 28,323
    10% 10.0% 14,003 14,008
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,748
    Calibration 2     140,400
    Calibration 3     139,869
    ssj_ops@calibrated=140,134
    100% 99.6% 140,134 139,599
    90% 90.1% 126,121 126,193
    80% 80.3% 112,108 112,523
    70% 69.8% 98,094 97,796
    60% 59.0% 84,081 82,740
    50% 50.3% 70,067 70,550
    40% 40.2% 56,054 56,327
    30% 29.7% 42,040 41,650
    20% 19.8% 28,027 27,766
    10% 9.9% 14,013 13,937
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     140,673
    Calibration 2     141,101
    Calibration 3     140,983
    ssj_ops@calibrated=141,042
    100% 99.9% 141,042 140,875
    90% 89.7% 126,938 126,503
    80% 80.3% 112,834 113,279
    70% 69.7% 98,730 98,288
    60% 59.5% 84,625 83,968
    50% 50.0% 70,521 70,512
    40% 40.0% 56,417 56,380
    30% 29.9% 42,313 42,170
    20% 19.7% 28,208 27,848
    10% 10.1% 14,104 14,207
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,842
    Calibration 2     137,965
    Calibration 3     137,927
    ssj_ops@calibrated=137,946
    100% 99.6% 137,946 137,358
    90% 90.1% 124,151 124,265
    80% 80.1% 110,357 110,511
    70% 70.3% 96,562 96,975
    60% 60.2% 82,768 83,076
    50% 49.9% 68,973 68,807
    40% 40.6% 55,178 56,019
    30% 30.7% 41,384 42,405
    20% 20.0% 27,589 27,562
    10% 10.0% 13,795 13,780
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,832
    Calibration 2     140,331
    Calibration 3     140,290
    ssj_ops@calibrated=140,311
    100% 99.6% 140,311 139,731
    90% 90.4% 126,280 126,832
    80% 79.5% 112,248 111,536
    70% 69.9% 98,217 98,013
    60% 59.8% 84,186 83,918
    50% 49.8% 70,155 69,887
    40% 40.3% 56,124 56,500
    30% 30.6% 42,093 42,951
    20% 20.2% 28,062 28,328
    10% 10.3% 14,031 14,474
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,335
    Calibration 2     138,329
    Calibration 3     138,664
    ssj_ops@calibrated=138,496
    100% 99.2% 138,496 137,398
    90% 89.7% 124,647 124,291
    80% 80.2% 110,797 111,142
    70% 69.8% 96,948 96,688
    60% 60.1% 83,098 83,284
    50% 50.6% 69,248 70,136
    40% 39.9% 55,399 55,194
    30% 29.5% 41,549 40,794
    20% 19.9% 27,699 27,503
    10% 10.0% 13,850 13,916
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,631
    Calibration 2     139,466
    Calibration 3     139,648
    ssj_ops@calibrated=139,557
    100% 99.6% 139,557 138,929
    90% 89.6% 125,601 124,996
    80% 79.6% 111,646 111,036
    70% 69.8% 97,690 97,342
    60% 59.8% 83,734 83,488
    50% 49.5% 69,778 69,016
    40% 40.1% 55,823 56,006
    30% 29.7% 41,867 41,475
    20% 19.7% 27,911 27,539
    10% 9.8% 13,956 13,716
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,356
    Calibration 2     139,258
    Calibration 3     139,338
    ssj_ops@calibrated=139,298
    100% 100.3% 139,298 139,775
    90% 89.7% 125,368 124,950
    80% 79.8% 111,439 111,162
    70% 70.4% 97,509 98,060
    60% 60.1% 83,579 83,777
    50% 49.6% 69,649 69,071
    40% 39.9% 55,719 55,607
    30% 29.5% 41,789 41,071
    20% 20.2% 27,860 28,189
    10% 10.1% 13,930 14,004
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,384
    Calibration 2     139,147
    Calibration 3     138,554
    ssj_ops@calibrated=138,850
    100% 99.1% 138,850 137,659
    90% 89.7% 124,965 124,587
    80% 80.2% 111,080 111,303
    70% 70.0% 97,195 97,173
    60% 59.6% 83,310 82,689
    50% 50.2% 69,425 69,680
    40% 39.9% 55,540 55,422
    30% 30.1% 41,655 41,824
    20% 19.7% 27,770 27,345
    10% 9.7% 13,885 13,401
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,635
    Calibration 2     139,471
    Calibration 3     139,948
    ssj_ops@calibrated=139,710
    100% 99.6% 139,710 139,178
    90% 89.6% 125,739 125,181
    80% 79.7% 111,768 111,331
    70% 70.5% 97,797 98,510
    60% 60.0% 83,826 83,885
    50% 50.5% 69,855 70,575
    40% 39.7% 55,884 55,525
    30% 29.6% 41,913 41,381
    20% 19.9% 27,942 27,787
    10% 10.0% 13,971 13,944
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,846
    Calibration 2     139,635
    Calibration 3     139,815
    ssj_ops@calibrated=139,725
    100% 99.6% 139,725 139,232
    90% 89.6% 125,752 125,259
    80% 79.5% 111,780 111,036
    70% 70.1% 97,807 97,896
    60% 58.9% 83,835 82,345
    50% 49.8% 69,862 69,589
    40% 40.2% 55,890 56,157
    30% 29.7% 41,917 41,505
    20% 19.7% 27,945 27,487
    10% 10.1% 13,972 14,046
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

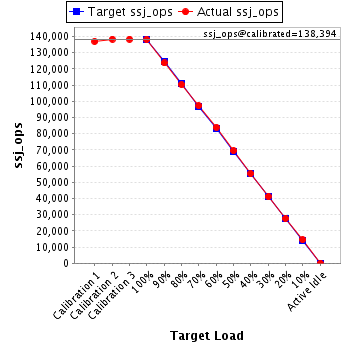

    JVM 'WIN-KK33POLHKCU.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,009
    Calibration 2     138,397
    Calibration 3     138,392
    ssj_ops@calibrated=138,394
    100% 99.9% 138,394 138,198
    90% 89.4% 124,555 123,702
    80% 79.7% 110,715 110,344
    70% 70.3% 96,876 97,303
    60% 60.7% 83,037 83,959
    50% 50.2% 69,197 69,513
    40% 40.0% 55,358 55,299
    30% 29.8% 41,518 41,231
    20% 20.0% 27,679 27,617
    10% 10.5% 13,839 14,504
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,318
    Calibration 2     139,675
    Calibration 3     139,575
    ssj_ops@calibrated=139,625
    100% 99.8% 139,625 139,368
    90% 89.7% 125,663 125,256
    80% 80.6% 111,700 112,593
    70% 70.6% 97,738 98,572
    60% 60.3% 83,775 84,233
    50% 50.4% 69,813 70,338
    40% 40.3% 55,850 56,287
    30% 30.2% 41,888 42,126
    20% 19.8% 27,925 27,685
    10% 10.0% 13,963 13,954
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'WIN-KK33POLHKCU.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,011
    Calibration 2     137,760
    Calibration 3     137,541
    ssj_ops@calibrated=137,650
    100% 99.6% 137,650 137,088
    90% 90.2% 123,885 124,199
    80% 80.3% 110,120 110,552
    70% 69.9% 96,355 96,240
    60% 59.6% 82,590 81,999
    50% 49.5% 68,825 68,171
    40% 40.5% 55,060 55,794
    30% 30.2% 41,295 41,511
    20% 19.8% 27,530 27,323
    10% 9.9% 13,765 13,641
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
