Supermicro SYS-7047R-72RF ssj_ops@100% = 1,337,474
ssj_ops@100% per JVM = 167,184
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: May 26, 2012
Hardware Availability: Apr-2012 Software Availability: Jan-2012 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,338,387
Calibration 2     1,348,076
Calibration 3     1,345,955
ssj_ops@calibrated=1,347,016
100% 99.3% 1,347,016 1,337,474
90% 89.8% 1,212,314 1,209,226
80% 80.1% 1,077,613 1,079,156
70% 70.1% 942,911 944,231
60% 59.8% 808,209 805,554
50% 50.2% 673,508 675,768
40% 39.9% 538,806 537,477
30% 29.9% 404,105 403,133
20% 20.0% 269,403 268,765
10% 10.0% 134,702 134,365
Active Idle   0 0
Graph of results
System Under Test
Set: '7047R'
Set Identifier: 7047R
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SYS-7047R-72RF
Form Factor: Tower
CPU Name: Intel Xeon E5-2665
CPU Characteristics: 8-Core, 2.40GHz, 20MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx4 PC3-12800R ECC; A1, B1, C1, D1, E1, F1, G1, H1 Populated.
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: PWS-920P-1R
Disk Drive: RAID0: 2 x FUJITSU 146 GB SASII 15KRPM (MBE2147RC)
Disk Controller: Onboard LSI 2208 SAS Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Dual-Port 1Gbit Network Controller.
NICs Enabled in Firmware / OS / Connected: 1/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power Saver
Operating System (OS): Microsoft Windows Server Enterprise 2008 R2 SP1
OS Version: 6.1.7601 Build 7601 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_26-b03)
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0xF,0x0F,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 4/20/2012 Ver1.00
Management Firmware Version: 1.48
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SV4I3SC3TQD.001 167,203
WIN-SV4I3SC3TQD.002 166,422
WIN-SV4I3SC3TQD.003 165,145
WIN-SV4I3SC3TQD.004 168,247
WIN-SV4I3SC3TQD.005 167,807
WIN-SV4I3SC3TQD.006 167,300
WIN-SV4I3SC3TQD.007 168,045
WIN-SV4I3SC3TQD.008 167,305
ssj_ops@100% 1,337,474
ssj_ops@100% per JVM 167,184

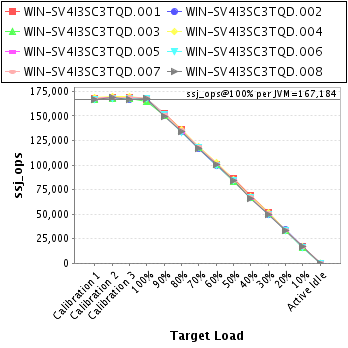

Graph of per-instance results
JVM 'WIN-SV4I3SC3TQD.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,768
Calibration 2     168,995
Calibration 3     168,756
ssj_ops@calibrated=168,876
100% 99.0% 168,876 167,203
90% 90.2% 151,988 152,362
80% 80.8% 135,100 136,512
70% 70.0% 118,213 118,206
60% 59.6% 101,325 100,606
50% 50.9% 84,438 85,939
40% 40.6% 67,550 68,537
30% 30.4% 50,663 51,369
20% 20.0% 33,775 33,792
10% 10.2% 16,888 17,226
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,474
Calibration 2     167,627
Calibration 3     166,725
ssj_ops@calibrated=167,176
100% 99.5% 167,176 166,422
90% 89.7% 150,458 150,003
80% 80.2% 133,741 134,052
70% 69.9% 117,023 116,783
60% 59.8% 100,306 100,030
50% 50.1% 83,588 83,816
40% 39.9% 66,870 66,649
30% 29.7% 50,153 49,614
20% 20.3% 33,435 33,893
10% 9.9% 16,718 16,631
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,874
Calibration 2     168,053
Calibration 3     167,831
ssj_ops@calibrated=167,942
100% 98.3% 167,942 165,145
90% 89.4% 151,148 150,196
80% 80.6% 134,353 135,443
70% 70.2% 117,559 117,923
60% 60.0% 100,765 100,791
50% 49.6% 83,971 83,258
40% 39.8% 67,177 66,871
30% 30.0% 50,383 50,421
20% 20.0% 33,588 33,557
10% 9.8% 16,794 16,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,837
Calibration 2     169,808
Calibration 3     170,141
ssj_ops@calibrated=169,974
100% 99.0% 169,974 168,247
90% 89.3% 152,977 151,831
80% 80.2% 135,980 136,355
70% 70.0% 118,982 119,008
60% 60.2% 101,985 102,309
50% 50.5% 84,987 85,776
40% 40.2% 67,990 68,348
30% 30.1% 50,992 51,228
20% 19.8% 33,995 33,629
10% 9.9% 16,997 16,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,915
Calibration 2     168,511
Calibration 3     168,498
ssj_ops@calibrated=168,504
100% 99.6% 168,504 167,807
90% 89.9% 151,654 151,553
80% 79.4% 134,804 133,724
70% 70.2% 117,953 118,324
60% 60.0% 101,103 101,142
50% 50.2% 84,252 84,550
40% 39.5% 67,402 66,592
30% 29.7% 50,551 50,061
20% 19.8% 33,701 33,392
10% 10.1% 16,850 17,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,606
Calibration 2     167,655
Calibration 3     167,701
ssj_ops@calibrated=167,678
100% 99.8% 167,678 167,300
90% 90.6% 150,910 151,953
80% 79.6% 134,143 133,516
70% 70.2% 117,375 117,746
60% 59.3% 100,607 99,373
50% 50.5% 83,839 84,609
40% 40.0% 67,071 67,117
30% 29.6% 50,303 49,642
20% 20.0% 33,536 33,616
10% 9.9% 16,768 16,548
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,958
Calibration 2     168,909
Calibration 3     169,064
ssj_ops@calibrated=168,986
100% 99.4% 168,986 168,045
90% 89.6% 152,088 151,384
80% 80.3% 135,189 135,690
70% 70.4% 118,291 118,902
60% 59.6% 101,392 100,783
50% 49.6% 84,493 83,866
40% 39.9% 67,595 67,385
30% 30.2% 50,696 51,032
20% 19.9% 33,797 33,639
10% 9.8% 16,899 16,627
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SV4I3SC3TQD.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,955
Calibration 2     168,517
Calibration 3     167,241
ssj_ops@calibrated=167,879
100% 99.7% 167,879 167,305
90% 89.3% 151,091 149,944
80% 79.7% 134,303 133,864
70% 69.9% 117,515 117,339
60% 59.9% 100,727 100,519
50% 50.0% 83,939 83,954
40% 39.3% 67,152 65,979
30% 29.6% 50,364 49,767
20% 19.8% 33,576 33,246
10% 10.1% 16,788 16,980
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
