Huawei Technologies Co., Ltd RH2485 V2 SPECpower_ssj2008 = 4,991 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 12, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 426 21.5
Calibration 2 431 21.4
Calibration 3 429 21.3
100% 430 21.2
90% 368 21.1
80% 320 21.1
70% 279 21.0
60% 245 21.0
50% 217 21.0
40% 201 21.0
30% 184 21.0
20% 166 21.0
10% 147 21.0
Active Idle 92.7 21.0

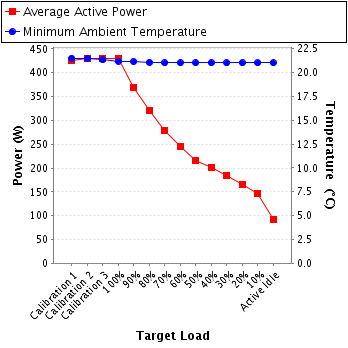

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B11004997-0007
Date of Calibration: 7-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: The Temperature@lert-TM-STD30 used a 2 meters USB extension cable to connect to the controller. The Temperature@lert probe was placed in front of the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 1.91 2.0 0.991 426 0.6%
Calibration 2 225 300.0 1.93 2.0 0.991 431 0.6%
Calibration 3 223 300.0 1.94 2.0 0.991 429 0.6%
100% 223 300.0 1.94 2.0 0.992 430 0.6%
90% 222 300.0 1.68 2.0 0.988 368 0.6%
80% 222 300.0 1.46 2.0 0.984 320 0.6%
70% 223 300.0 1.28 2.0 0.978 279 0.7%
60% 223 300.0 1.12 1.0 0.984 245 0.6%
50% 223 300.0 0.986 1.0 0.986 217 0.6%
40% 223 300.0 0.918 1.0 0.985 201 0.6%
30% 223 300.0 0.842 1.0 0.982 184 0.6%
20% 224 300.0 0.761 1.0 0.978 166 0.6%
10% 223 300.0 0.679 1.0 0.971 147 0.7%
Active Idle 223 300.0 0.426 0.5 0.975 92.7 0.6%
Power details for pwr1
