SPECpower_ssj2008 Host 'WIN-4QQRLMSOOTV' Performance Report

SPECpower_ssj2008

Host 'WIN-4QQRLMSOOTV' Performance Report

Huawei Technologies Co., Ltd RH2485 V2			ssj_ops@100% = 2,402,711 ssj_ops@100% per JVM = 150,169
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Jun 12, 2012
Hardware Availability:	Jun-2012	Software Availability:	Dec-2011	Publication:	Jun 28, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			2,377,855
Calibration 2			2,409,070
Calibration 3			2,401,061
ssj_ops@calibrated=2,405,066
100%	99.9%	2,405,066	2,402,711
90%	90.0%	2,164,559	2,164,748
80%	80.0%	1,924,052	1,924,547
70%	69.9%	1,683,546	1,682,279
60%	60.0%	1,443,039	1,444,061
50%	50.0%	1,202,533	1,201,966
40%	40.0%	962,026	961,643
30%	30.1%	721,520	724,279
20%	20.0%	481,013	480,791
10%	10.0%	240,507	240,352
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	RH2485 V2
Form Factor:	2U
CPU Name:	Intel Xeon E5-4640
CPU Characteristics:	8-Core, 2.40 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.80 GHz)
CPU Frequency (MHz):	2400
CPU(s) Enabled:	32 cores, 4 chips, 8 cores/chip
Hardware Threads:	64 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	48
# and size of DIMM:	12 x 4 GB
Memory Details:	4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Huawei P/N 98080310
Disk Drive:	1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version:	R2 SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000,0xF000000000000000]
JVM Instances:	16
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	V023
Management Firmware Version:	3.00
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Hardware prefetcher -disabled.
Adjacent Cache Line Prefetch -disabled.
DCU Streamer Prefetcher -disabled.
Intel HT Technology -enabled.
Turbo mode -enabled.
C-state -enabled.
Power Mode -Efficiency.
QPI Link Speed -6.4GT/s.
Memory Frequency Limit -1333MHz.
Demand Scrubbing -disabled.
USB configuration EHCI 2 -disabled.

Management Firmware Settings

none

System Under Test Notes

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to four logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version.

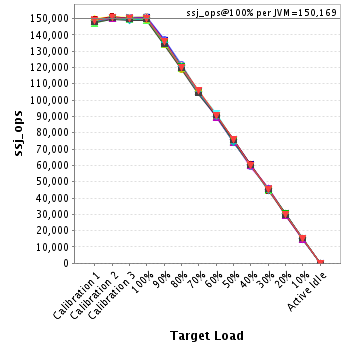

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-4QQRLMSOOTV.001	150,869
WIN-4QQRLMSOOTV.002	151,194
WIN-4QQRLMSOOTV.003	148,834
WIN-4QQRLMSOOTV.004	151,352
WIN-4QQRLMSOOTV.005	150,134
WIN-4QQRLMSOOTV.006	150,083
WIN-4QQRLMSOOTV.007	150,803
WIN-4QQRLMSOOTV.008	150,471
WIN-4QQRLMSOOTV.009	150,178
WIN-4QQRLMSOOTV.010	150,351
WIN-4QQRLMSOOTV.011	149,802
WIN-4QQRLMSOOTV.012	149,190
WIN-4QQRLMSOOTV.013	150,403
WIN-4QQRLMSOOTV.014	150,186
WIN-4QQRLMSOOTV.015	148,813
WIN-4QQRLMSOOTV.016	150,046
ssj_ops@100%	2,402,711
ssj_ops@100% per JVM	150,169

JVM 'WIN-4QQRLMSOOTV.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			149,585
Calibration 2			150,744
Calibration 3			150,905
ssj_ops@calibrated=150,825
100%	100.0%	150,825	150,869
90%	90.0%	135,742	135,799
80%	79.8%	120,660	120,365
70%	69.7%	105,577	105,088
60%	59.8%	90,495	90,144
50%	50.3%	75,412	75,808
40%	40.3%	60,330	60,729
30%	30.4%	45,247	45,844
20%	20.2%	30,165	30,508
10%	10.0%	15,082	15,137
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			149,129
Calibration 2			150,946
Calibration 3			150,836
ssj_ops@calibrated=150,891
100%	100.2%	150,891	151,194
90%	90.7%	135,802	136,890
80%	80.6%	120,713	121,675
70%	69.9%	105,624	105,403
60%	59.7%	90,535	90,152
50%	50.5%	75,446	76,127
40%	39.3%	60,357	59,278
30%	30.3%	45,267	45,661
20%	20.0%	30,178	30,231
10%	10.2%	15,089	15,423
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			146,886
Calibration 2			149,772
Calibration 3			149,327
ssj_ops@calibrated=149,550
100%	99.5%	149,550	148,834
90%	89.7%	134,595	134,175
80%	79.7%	119,640	119,155
70%	70.3%	104,685	105,131
60%	60.1%	89,730	89,901
50%	50.0%	74,775	74,710
40%	40.4%	59,820	60,478
30%	29.7%	44,865	44,460
20%	20.2%	29,910	30,279
10%	10.0%	14,955	14,907
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			149,968
Calibration 2			151,125
Calibration 3			150,631
ssj_ops@calibrated=150,878
100%	100.3%	150,878	151,352
90%	89.2%	135,790	134,576
80%	80.4%	120,702	121,375
70%	70.3%	105,615	106,037
60%	60.4%	90,527	91,171
50%	50.1%	75,439	75,625
40%	40.3%	60,351	60,812
30%	30.0%	45,263	45,325
20%	20.2%	30,176	30,408
10%	9.9%	15,088	14,968
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,996
Calibration 2			150,651
Calibration 3			150,394
ssj_ops@calibrated=150,522
100%	99.7%	150,522	150,134
90%	89.8%	135,470	135,098
80%	79.7%	120,418	119,995
70%	69.3%	105,366	104,328
60%	59.5%	90,313	89,596
50%	49.5%	75,261	74,491
40%	39.1%	60,209	58,905
30%	30.5%	45,157	45,862
20%	20.0%	30,104	30,034
10%	10.0%	15,052	15,007
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,397
Calibration 2			150,555
Calibration 3			150,028
ssj_ops@calibrated=150,292
100%	99.9%	150,292	150,083
90%	90.0%	135,262	135,283
80%	80.0%	120,233	120,196
70%	70.1%	105,204	105,338
60%	60.9%	90,175	91,524
50%	49.9%	75,146	75,008
40%	39.9%	60,117	60,006
30%	29.7%	45,087	44,659
20%	20.2%	30,058	30,419
10%	9.9%	15,029	14,816
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,276
Calibration 2			150,444
Calibration 3			150,436
ssj_ops@calibrated=150,440
100%	100.2%	150,440	150,803
90%	90.1%	135,396	135,572
80%	80.0%	120,352	120,393
70%	70.3%	105,308	105,762
60%	60.3%	90,264	90,735
50%	49.7%	75,220	74,754
40%	40.2%	60,176	60,486
30%	29.4%	45,132	44,248
20%	19.8%	30,088	29,764
10%	9.9%	15,044	14,874
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,844
Calibration 2			150,786
Calibration 3			150,422
ssj_ops@calibrated=150,604
100%	99.9%	150,604	150,471
90%	89.7%	135,543	135,017
80%	80.4%	120,483	121,116
70%	69.7%	105,423	105,023
60%	60.0%	90,362	90,371
50%	50.2%	75,302	75,560
40%	39.9%	60,242	60,116
30%	30.5%	45,181	45,924
20%	19.7%	30,121	29,691
10%	10.4%	15,060	15,646
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			149,336
Calibration 2			151,117
Calibration 3			149,827
ssj_ops@calibrated=150,472
100%	99.8%	150,472	150,178
90%	89.8%	135,424	135,184
80%	80.0%	120,377	120,412
70%	70.0%	105,330	105,316
60%	60.3%	90,283	90,683
50%	50.5%	75,236	76,050
40%	40.4%	60,189	60,837
30%	29.8%	45,141	44,797
20%	20.1%	30,094	30,202
10%	9.9%	15,047	14,959
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,762
Calibration 2			150,910
Calibration 3			150,216
ssj_ops@calibrated=150,563
100%	99.9%	150,563	150,351
90%	90.5%	135,507	136,263
80%	80.2%	120,450	120,773
70%	70.0%	105,394	105,356
60%	59.6%	90,338	89,661
50%	50.2%	75,281	75,573
40%	40.2%	60,225	60,485
30%	30.2%	45,169	45,509
20%	20.3%	30,113	30,589
10%	10.1%	15,056	15,216
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,316
Calibration 2			150,325
Calibration 3			150,056
ssj_ops@calibrated=150,191
100%	99.7%	150,191	149,802
90%	90.2%	135,171	135,504
80%	80.5%	120,152	120,838
70%	69.8%	105,133	104,887
60%	59.7%	90,114	89,718
50%	50.3%	75,095	75,496
40%	39.9%	60,076	59,931
30%	30.3%	45,057	45,450
20%	20.3%	30,038	30,485
10%	9.8%	15,019	14,711
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,721
Calibration 2			150,080
Calibration 3			149,501
ssj_ops@calibrated=149,791
100%	99.6%	149,791	149,190
90%	89.4%	134,812	133,946
80%	79.3%	119,832	118,794
70%	70.2%	104,853	105,199
60%	60.0%	89,874	89,914
50%	49.4%	74,895	74,044
40%	39.8%	59,916	59,640
30%	30.3%	44,937	45,350
20%	19.8%	29,958	29,677
10%	10.0%	14,979	14,953
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,298
Calibration 2			150,231
Calibration 3			150,166
ssj_ops@calibrated=150,199
100%	100.1%	150,199	150,403
90%	90.6%	135,179	136,133
80%	79.7%	120,159	119,745
70%	70.1%	105,139	105,301
60%	59.7%	90,119	89,648
50%	49.4%	75,099	74,139
40%	39.9%	60,079	59,901
30%	30.6%	45,060	45,895
20%	19.6%	30,040	29,408
10%	9.9%	15,020	14,812
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			147,976
Calibration 2			150,925
Calibration 3			149,098
ssj_ops@calibrated=150,011
100%	100.1%	150,011	150,186
90%	90.4%	135,010	135,600
80%	80.4%	120,009	120,553
70%	69.7%	105,008	104,504
60%	60.1%	90,007	90,154
50%	49.5%	75,006	74,315
40%	40.1%	60,005	60,185
30%	29.9%	45,003	44,892
20%	20.0%	30,002	29,960
10%	10.1%	15,001	15,141
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			147,383
Calibration 2			149,520
Calibration 3			149,036
ssj_ops@calibrated=149,278
100%	99.7%	149,278	148,813
90%	89.6%	134,350	133,720
80%	79.6%	119,422	118,900
70%	69.5%	104,494	103,743
60%	60.4%	89,567	90,206
50%	50.0%	74,639	74,674
40%	40.0%	59,711	59,777
30%	30.2%	44,783	45,110
20%	19.5%	29,856	29,155
10%	10.0%	14,928	14,901
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-4QQRLMSOOTV.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			148,982
Calibration 2			150,938
Calibration 3			150,182
ssj_ops@calibrated=150,560
100%	99.7%	150,560	150,046
90%	90.3%	135,504	135,989
80%	79.9%	120,448	120,264
70%	70.3%	105,392	105,862
60%	60.1%	90,336	90,483
50%	50.2%	75,280	75,592
40%	39.9%	60,224	60,078
30%	30.1%	45,168	45,295
20%	19.9%	30,112	29,980
10%	9.9%	15,056	14,883
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
