SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AT350 F2 | SPECpower_ssj2008 = 3,031 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | May 22, 2012 |
| Hardware Availability: | May-2012 | Software Availability: | Dec-2011 | Publication: | Aug 8, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

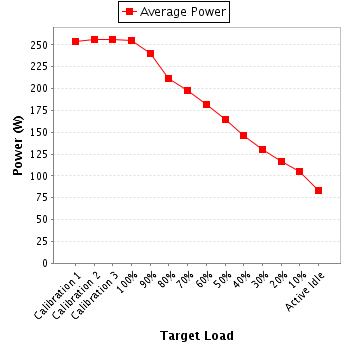

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 254 | 22.4 |
| Calibration 2 | 256 | 22.0 |
| Calibration 3 | 256 | 21.8 |
| 100% | 255 | 21.6 |
| 90% | 240 | 21.3 |
| 80% | 212 | 21.1 |
| 70% | 198 | 21.0 |
| 60% | 182 | 21.0 |
| 50% | 165 | 21.1 |
| 40% | 147 | 21.9 |
| 30% | 130 | 22.5 |
| 20% | 117 | 22.0 |
| 10% | 105 | 22.0 |
| Active Idle | 83.5 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-05-BAC-113-01 |
| Date of Calibration: | 10-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 214 | 300.0 | 1.21 | 2.0 | 0.974 | 254 | 0.4% |
| Calibration 2 | 215 | 300.0 | 1.23 | 2.0 | 0.974 | 256 | 0.4% |
| Calibration 3 | 215 | 300.0 | 1.23 | 2.0 | 0.974 | 256 | 0.4% |
| 100% | 215 | 300.0 | 1.22 | 2.0 | 0.974 | 255 | 0.4% |
| 90% | 215 | 300.0 | 1.15 | 2.0 | 0.972 | 240 | 0.4% |
| 80% | 215 | 300.0 | 1.02 | 1.0 | 0.967 | 212 | 0.3% |
| 70% | 215 | 300.0 | 0.954 | 1.0 | 0.964 | 198 | 0.3% |
| 60% | 215 | 300.0 | 0.882 | 1.0 | 0.959 | 182 | 0.3% |
| 50% | 215 | 300.0 | 0.805 | 1.0 | 0.953 | 165 | 0.3% |
| 40% | 214 | 300.0 | 0.723 | 1.0 | 0.946 | 147 | 0.4% |
| 30% | 214 | 300.0 | 0.647 | 1.0 | 0.939 | 130 | 0.4% |
| 20% | 214 | 300.0 | 0.586 | 1.0 | 0.932 | 117 | 0.4% |
| 10% | 216 | 300.0 | 0.528 | 1.0 | 0.920 | 105 | 0.5% |
| Active Idle | 217 | 300.0 | 0.430 | 1.0 | 0.895 | 83.5 | 0.6% |
